Blackmagic Design DeckLink 8K Pro G2
BDLKHCPRO8K12GG2
Nuovo prodotto

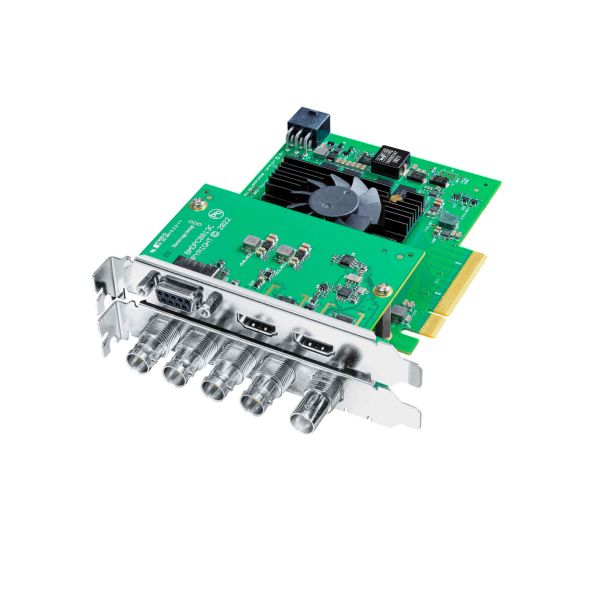

Blackmagic Design DeckLink 8K Pro G2
Scheda PCIe di acquisizione e riproduzione con 12G-SDI e HDMI 2.1 per tutti i formati SD, HD, Ultra HD, 4K DCI, 8K and 8K DCI
Scheda PCIe di acquisizione e riproduzione con 12G-SDI e HDMI 2.1 per tutti i formati SD, HD, Ultra HD, 4K DCI, 8K and 8K DCI
Con l'acquisto di questo prodotto è possibile raccogliere fino a 76 Punti fedeltà. Il totale del tuo carrello 76 punti può essere convertito in un buono di 7,60 €.
- Invia ad un amico
- Rimuovi questo prodotto dai miei preferiti
- Aggiungi questo prodotto ai miei preferiti.
- Stampa
Decklink 8K Pro G2 include quattro connessioni bidirezionali 12G-SDI e HDMI 2.1 compatibili con tutti gli standard SD, HD, Ultra HD, 4K, e 8K. Ecco perché è la scheda PCIe 8K professionale definitiva di acquisizione e riproduzione per la produzione cinematografica. Sfruttando DeckLink SDK si possono configurare fino a quattro flussi video in qualsiasi direzione, formato e frame rate fino al 4K DCI 60p, per un’acquisizione e una riproduzione multicanale impeccabili. È compatibile con YUV 4:2:2 a 8 e 10 bit, con RGB 4:4:4 a 10 e 12 bit, e con lo spazio colore Rec. 2020. Raggiunge 120 fotogrammi al secondo in HD e 4K, e 60 fotogrammi al secondo in 8K. Le quattro connessioni 12G-SDI accettano 64 canali di audio integrato. DeckLink 8K Pro G2 è perfetta per i flussi di lavoro ad alta risoluzione, alta gamma dinamica e frame rate elevati di prossima generazione.
Connessioni
Ingressi video SDI
4 x bi-directional 12G‑SDI
Supports SD/HD/2K/4K/8K, single, dual link and quad link 4:2:2/4:4:4. 2D/3D switchable.
Uscite video SDI
4 x bi-directional 12G‑SDI
Supports SD/HD/2K/4K/8K, single, dual link and quad link 4:2:2/4:4:4. 2D/3D switchable.
Ingressi audio SDI
16 Channels embedded in SD/HD/2K.
64 Channels embedded in 4K/8K.
Uscite audio SDI
16 Channels embedded in SD/HD/2K.
64 Channels embedded in 4K/8K.
Ingressi video HDMI
1 x HDMI 2.1
Uscite video HDMI
1 x HDMI 2.1
Ingressi audio HDMI
8 Channels embedded in TMDS.
32 Channels embedded in FRL.
Uscite audio HDMI
8 Channels embedded in TMDS.
32 Channels embedded in FRL.
Ingresso sync
Tri-Sync or Black Burst.
Controllo remoto
1 x RS‑422 Out
Interfaccia computer
PCI Express 8 lane generation 3, compatible with 8 and 16 lane PCI Express slots.
DeckLink 8K Pro G2
Codec compatibili
AVC-Intra, AVCHD, Canon XF MPEG2, Digital SLR, DV‑NTSC, DV‑PAL, DVCPRO50, DVCPROHD, DPX, HDV, XDCAM EX, XDCAM HD, XDCAM HD422, DNxHR and DNxHD, Apple ProRes 4444, Apple ProRes 422 HQ, Apple ProRes 422, Apple ProRes LT, Apple ProRes 422 Proxy, Uncompressed 8‑bit 4:2:2, Uncompressed 10‑bit 4:2:2, Uncompressed 10‑bit 4:4:4.
Software
Software inclusi
DaVinci Resolve, Media Express, Disk Speed Test, LiveKey, Blackmagic Desktop Video Utility and Blackmagic driver on Mac OS and Windows. Media Express, Blackmagic Desktop Video Utility and Blackmagic driver on Linux.
Aggiornamento del software interno
Firmware built into software driver. Loaded at system start or via updater software.
Installazione
PCI Express 8 lane generation 3, compatible with 8, 16 lane PCI Express slots on Mac OS, Windows and Linux. Requires 2 PCI slots plus connection to computer power supply. Please check the Support pages to see the full system requirements.
Applicazioni software
DaVinci Resolve
Fusion
Final Cut Pro
Adobe Premiere Pro
Avid Media Composer
Adobe After Effects
Avid Pro Tools
Steinberg Cubase
Autodesk Flame
Adobe Photoshop
Other supported applications include: Steinberg Nuendo, Open Broadcaster Software Studio, vMix, The Foundry Nuke, Grass Valley Edius X, Sony Catalyst Production Suite, Tools On Air Just: Play & Live & In, Softron MovieRecorder & MReplay, Adobe Flash Media Live Encoder, Telestream Wirecast, Resolume Arena, Vegas Creative Software Vegas Pro & Vegas Edit, Corel VideoStudio Pro, CyberLink PowerDirector, VidblasterX Studio & Broadcast, CasparCG Server, Magicsoft CG, Xsplit Broadcaster, DevTek Easy Media Suite, Metus Ingest, Boinx Software MimoLive, Cinegy Capture Pro, Renewed Vision ProPresenter, Ventuz Director, Class X Liveboard & Coral CG, Glookast Capturer, Nautilus Studio NEMO3D, Derivative TouchDesigner, Assimilate Scratch & Live Assist, Burst Video WebClip2Go & [REC]Marker, NewBlue Title Live & Titler Pro, SGO Mistika, Zoom.
Queste sono applicazioni di terzi e il supporto potrebbe variare. Si consiglia di rivolgersi al fornitore del software.
Standard video SDI
Standard video SD
525i59.94 NTSC, 625i50 PAL
Standard video HD
720p50, 720p59.94, 720p60
1080i50, 1080i59.94, 1080i60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60, 1080p95.90, 1080p96, 1080p100, 1080p119.88, 1080p120
1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30
Standard video 2K
2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI, 2Kp47.95 DCI, 2Kp48 DCI, 2Kp50 DCI, 2Kp59.94 DCI, 2Kp60 DCI, 2Kp95.90 DCI, 2Kp96 DCI, 2Kp100 DCI, 2Kp119.88 DCI, 2Kp120 DCI
2KPsF23.98 DCI, 2KPsF24 DCI, 2KPsF25 DCI, 2KPsF29.97 DCI, 2KPsF30 DCI
Standard video Ultra HD
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60, 2160p95.90, 2160p96, 2160p100, 2160p119.88, 2160p120
Standard video 4K
4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp47.95 DCI, 4Kp48 DCI, 4Kp50 DCI, 4Kp59.94 DCI, 4Kp60 DCI, 4Kp95.90 DCI, 4Kp96 DCI, 4Kp100 DCI, 4Kp119.88 DCI, 4Kp120 DCI
Standard video 8K
4320p23.98, 4320p24, 4320p25, 4320p29.97, 4320p30, 4320p47.95, 4320p48, 4320p50, 4320p59.94, 4320p60
Standard video 8K DCI
8Kp23.98 DCI, 8Kp24 DCI, 8Kp25 DCI, 8Kp29.97 DCI, 8Kp30 DCI, 8Kp47.95 DCI, 8Kp48 DCI, 8Kp50 DCI, 8Kp59.94 DCI, 8Kp60 DCI
Standard video 3D SDI
720p50, 720p59.94, 720p60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60, 1080p95.90, 1080p96, 1080p100, 1080p119.88, 1080p120
1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30
1080i50, 1080i59.94, 1080i60
2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI, 2Kp47.95 DCI, 2Kp48 DCI, 2Kp50 DCI , 2Kp59.94 DCI, 2Kp60 DCI, 2Kp95.90 DCI, 2Kp96 DCI, 2Kp100 DCI, 2Kp119.88 DCI, 2Kp120 DCI
2KPsF23.98 DCI, 2KPsF24 DCI, 2KPsF25 DCI, 2KPsF29.97 DCI, 2KPsF30 DCI
4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp47.95 DCI, 4Kp48 DCI, 4Kp50 DCI, 4Kp59.94 DCI, 4Kp60 DCI, 4Kp95.90 DCI, 4Kp96 DCI, 4Kp100 DCI, 4Kp119.88 DCI, 4Kp120 DCI
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60, 2160p95.90, 2160p96, 2160p100, 2160p119.88, 2160p120
Conformità alla norma SDI
SMPTE 259M, SMPTE 274M, SMPTE 292M, SMPTE 296M SMPTE 372M, SMPTE 424M, SMPTE 425M livello A e B SMPTE 2036‑1, SMPTE 2048‑1, SMPTE 2081‑10, SMPTE 2081‑11, SMPTE 2081‑12, SMPTE 2082‑10, SMPTE 2082‑11, SMPTE 2082‑12 and SMPTE ST2108‑1
Metadati SDI compatibili
RP 188/SMPTE 12M-2 and closed captioning.
Campionamento audio
Television standard sample rate of 48 kHz at 24‑bit.
Campionamento video SDI
4:2:2, 4:4:4
Precisione colore SDI
8, 10, 12-bit RGB 4:4:4 in all modes up to 8Kp30 DCI, and 8, 10-bit YUV 4:2:2 in all modes.
Spazio colore
REC 601, REC 709, REC 2020.
Compatibilità HDR
Pacchetti di metadati HDR, caratteristiche di trasferimento HLG e PQ
Supporto multirate
SDI video connections are switchable between SD/HD/2K/4K and 8K.
HDMI 2.1 Video Standards
Standard video SD
525i59.94 NTSC, 625i50 PAL
Standard video HD
720p50, 720p59.94, 720p60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60, 1080p95, 1080p96, 1080p100, 1080p119, 1080p120
1080i50, 1080i59.94, 1080i60
Standard video Ultra HD
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48 2160p50, 2160p59.94, 2160p60, 2160p95, 2160p96, 2160p100, 2160p119, 2160p120
Standard video 4K
4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp47.95 DCI, 4Kp48 DCI, 4Kp50 DCI, 4Kp59.94 DCI, 4Kp60 DCI, 4Kp95 DCI, 4Kp96 DCI, 4Kp100 DCI, 4Kp119 DCI, 4Kp120 DCI
Standard video 8K
4320p23.98, 4320p24, 4320p25, 4320p29.97, 4320p30, 4320p47.95, 4320p48, 4320p50, 4320p59.94, 4320p60
Standard video 8K DCI
8Kp23.98 DCI, 8Kp24 DCI, 8Kp25 DCI, 8Kp29.97 DCI, 8Kp30 DCI, 8Kp47.95 DCI, 8Kp48 DCI, 8Kp50 DCI, 8Kp59.94 DCI, 8Kp60 DCI
Campionamento audio HDMI
Television standard sample rate of 48 kHz and 24‑bit.
Campionamento video HDMI
4:2:2, 4:4:4 e 4:2:0*
Precisione colore HDMI
8, 10 and 12-bit*
*supported video sampling and colour precision are dependent on connected HDMI device capabilities, video resolution and frame rate.
Spazio colore HDMI
REC 601, REC 709, REC 2020.
Compatibilità HDR
Pacchetti di metadati HDR, caratteristiche di trasferimento HLG e PQ
Configurazione HDMI
HDMI 2.1 supports Deep Color and HDR. Automatically configures to connected display.
Supporto multirate
HDMI video connections are switchable between SD/HD/UHD and 4K.
Protezione anticopia
HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content.
Elaborazione
Conversione spazio colore
Hardware based real time on output.
Elaborazione 3D
Left eye/right eye dual stream capture and playback (SDI only).
Effetti in tempo reale
DaVinci Resolve, Final Cut Pro internal effects. Adobe Premiere Pro CC Mercury Playback Engine effects. Avid Media Composer internal effects.
Specifiche fisiche
DeckLink 8K Pro G2
Sistemi operativi
Mac 13.0 Ventura,
Mac 14.0 Sonoma o successivo
Windows 10 a 64 bit
Windows 11
Linux
Requisiti di alimentazione
Consumo energetico
30 W
Specifiche ambientali
Temperatura operativa:
5° to 50° C (41° to 122° F)
Temperatura di stoccaggio:
-20° to 60° C (-4° to 140° F)
Umidità relativa:
0% to 90% non‑condensing
Il prodotto include
DeckLink 8K Pro G2
HDMI 2.1 mezzanine card
External power cable
Spacers and screws
Wallet di benvenuto con codice QR per scaricare il software
Garanzia
Garanzia limitata di tre anni fornita dal produttore
