Blackmagic Design ATEM 4 M/E Advanced Panel


New product

By buying this product you can collect up to 1885 loyalty points. Your cart will total 1885 points that can be converted into a voucher of 188,50 €.

18 851,14 €tax incl.


19 843,30 € tax incl.

choosing bankwire payment, you will get an extra 2% discount at checkout!

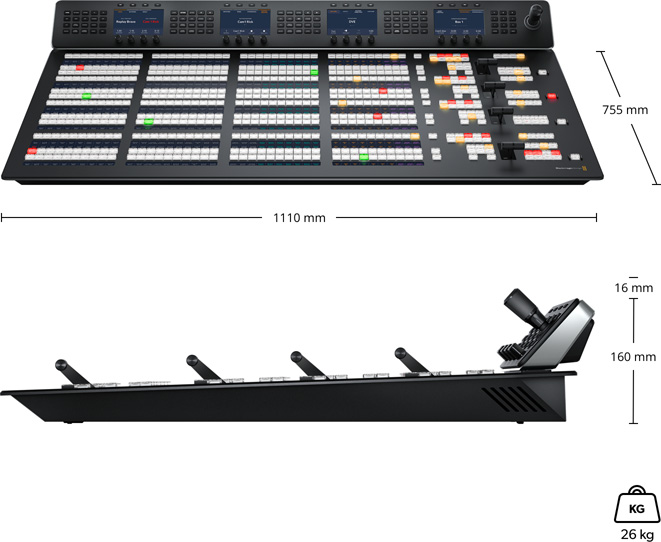

ATEM 4 M/E Advanced Panel

This massive model is big enough to perfectly match the features on the ATEM Constellation switcher! It features 4 M/E rows with 40 input buttons per row and 4 independent system control LCDs for each row. This massive panel includes 24 LCD's for custom labeling of every button on every row!
Height 6.92" o 176 mm
Weight 13.2 lbs o 6 kg
Aggiornamento Firmware/Software 1 Porta USB per Aggiornamento Firmware
Alimentazione Alimentazione Ridondante
Punti di Incrocio Diretti 10
Tipo di Pulsante di Incrocio Tre Colori a LED
Etichetta ad Incrocio 4 Caratteri a LED
Selettori della Prossima Transizione Sfondo, Chiave 1 - Chiave 4
Indicatore "In Onda" Si
Selettori di Transizione DSK Auto, Cut, Tie/Pvw
Anteprima delle Transizioni Si
Visualizzazione della Frequenza di Transizione Si
Controllo del Menu Pulsanti LCD Bitmap
Barra di Dissolvenza 1
Joystick a Tre Assi Si
Tastierino Numerico Si
Sistema Operativo Sistema Operativo Incorporato Certificato Certificato Aerospace
Tensione di Ingresso 12V
Consumo di Energia 40 Watt
Ampiezza 17.63" o 448 mm
Profondità 15.08" o 383 mm
