Blackmagic Design Micro Converter HDMI to SDI 3G
CONVCMIC/HS03G
New product
This model is perfect for connecting HDMI cameras and computers to professional SDI equipment! You get two 3G-SDI outputs which can be set to level A or level B formats. Unlike cheap converters, it even supports feature film video formats including 1080p24, 1080p47.95 and 1080p48.
By buying this product you can collect up to 6 loyalty points. Your cart will total 6 points that can be converted into a voucher of 0,60 €.
- Send to a friend
- Remove this product from my favorite's list.
- Add this product to my list of favorites.
This model is perfect for connecting HDMI cameras and computers to professional SDI equipment! You get two 3G-SDI outputs which can be set to level A or level B formats. Unlike cheap converters, it even supports feature film video formats including 1080p24, 1080p47.95 and 1080p48.
Connections
SDI Video Outputs
2 x SD, HD or 3G‑SDI.
Automatically matches the HDMI input.
HDMI Video Inputs
HDMI Type A in.
Multi Rate Support
Auto detection of SD or HD.
Updates, Configurations and Power
USB Type‑C.
Reclocking
Yes
Standards
SDI Video Standards
525i59.94 NTSC, 625i50 PAL
HD Video Standards
720p50, 720p59.94, 720p60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60
1080i50, 1080i59.94, 1080i60
SDI Compliance
SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M
SDI Video Rates
SDI video connections are switchable between standard definition and high definition, and user selectable level A and B for 3G‑SDI via setup utility.
SDI Color Precision
4:2:2
SDI Color Space
YUV
SDI Auto Switching
Automatically detects SD, HD and 3G-SDI
HDMI Video Standards
525i29.97 NTSC, 625i25 PAL
720p50, 720p59.94, 720p60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60
1080i50, 1080i59.94, 1080i60
HDMI Color Precision
4:2:2
HDMI Color Space
YUV
Copy Protection
HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content.
Software
Software Control
Mac OSX™ and Windows™ software via USB.
Internal Software Upgrade
Via USB.
Operating Systems
Mac 10.14 Mojave,
Mac 10.15 Catalina or later.
Windows 10
Settings Control
Via software utility.
Power Requirements
Power Consumption
2 W
Operational Voltage Range
4.4 to 5.25V DC

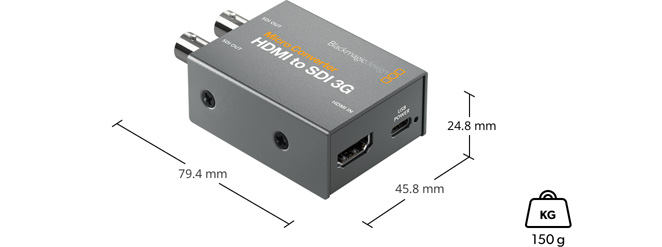

Physical Specifications
Environmental Specifications
Operating temperature
0° to 40° C (32° to 104° F)
Storage temperature
-20° to 60° C (-4° to 140° F)
Relative Humidity
0% to 90% non-condensing
What's Included
Micro Converter HDMI to SDI 3G
3 Year Limited Manufacturer's Warranty.
For more information, please visit Blackmagic Design website
