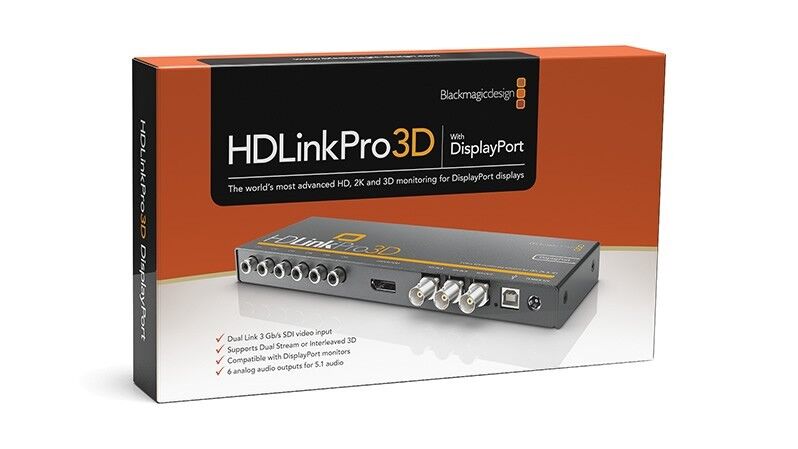

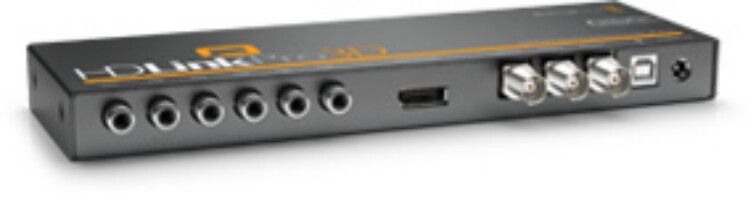

Blackmagic Design HDLink Pro 3D DisplayPort 2560 x 1600 Pixel

Eliminate the high cost of HDTV monitoring with HDLink

The world's most advanced full resolution 2D/3D HDTV and 2K monitoring for DVI, DisplayPort and HDMI monitors. Includes the quality of 4:4:4 SDI video, lookup tables via USB and analog audio outputs. HDLink will solve all your monitoring needs.

Full Resolution HD Monitoring

HDLink connects SDI video directly to any supported DVI-D and DisplayPort based LCD computer monitor for incredible true HDTV resolution video monitoring. HDLink includes 3 Gb/s SDI for high resolution 2K film monitoring when connected to a large 30 inch DVI or DisplayPort display. With every individual pixel in the HD or 2K SDI connection digitally mapped directly to the pixels of the LCD display, you get a perfect digital-to-screen pixel for pixel HDTV or 2K display. Connect any HDMI television or video projector to HDLink for cinema style monitoring! Even large 23 inch CRT based monitors can't display the full resolution of the HD-SDI signal, but with HDLink you see every pixel in the HD signal, so you'll always see a perfect image.

Supports both DVI and HDMI

HDLink supports all DVI-D and DisplayPort based digital computer displays and also includes HDMI video support. HDMI supports video at 1080i/50, 1080i/59.94 and 720p/59.94 on any HDMI device. DVI-D and DisplayPort supports displays at 1920 x 1200 (16:10) resolution for all 1080 HDTV formats. When working in 720 HDTV formats you can even use lower cost 1280 x 800 resolution display for pixel for pixel 720p viewing. When working in NTSC or PAL, HDLink can scale to fill the screen making viewing easier.

Built in Optical Fiber

The HDLink Optical Fiber model is the world's first broadcast monitoring solution with built in optical fiber SDI connections. Optical fiber easily handles long distances, is low cost, and optical fiber cables last virtually forever.

Includes 3D Lookup Tables

For matching LCD display colorimetry and simulating various types of film stocks, HDLink Pro model features more advanced 3D lookup tables. Advanced 3D lookup tables increase color control.

Analog Audio Monitoring Output

Audio outputs are de embedded from the SDI input and then converted to analog at an incredible 24 bit. HDLink supports 6 channels out allowing easy monitoring of 5.1 surround sound audio.

Highest Quality 3 Gb/s SDI in 4:4:4

HDLink introduced the world's first full HDTV resolution 4:4:4 monitoring solution that supports both standard definition SDI, HD-SDI and HD-SDI 4:4:4 for full resolution color monitoring. Conventional SD and HD video is 4:2:2 based, which limits color detail while 4:4:4 HD video preserves the full color detail which is important for critical keying and feature film work. HDLink Pro is the first solution for the new high speed 3 Gb/s SDI standard for 4:4:4 RGB and 2K film monitoring. 3 Gb/s SDI runs twice the data rate of normal HD-SDI video, allowing 4:4:4 RGB video to be connected using a single SDI connection. 3 Gb/s SDI also allows full resolution 2K feature film quality 2048 x 1556 video to be connected via SDI.

Supports LCD Displays

HDLink supports DVI-D and DisplayPort based digital computer displays. For 1080 and 720 HDTV formats, a 1920 x 1200 (16:10) resolution display is recommended. However, if you're working in 720 HDTV formats only, then a lower cost 1280 x 800 resolution display is recommended. When working in NTSC or PAL, HDLink can scale up the displayed image to fill the display making viewing easier. Because most computer displays are limited to approximately a 60 Hz refresh rate, HDLink will automatically apply pull-down to allow video frame rates to be displayed.

The world’s first SDI monitoring solution for deep bit depth DisplayPort monitors now supports full 3D stereoscopic and HDMI 3D frame packing! Get the highest quality in both 4:2:2 and 4:4:4.Perfect for SD, HD and feature film 2K monitoring, HDLink Pro supports 1.62 and 2.7 Gb/s DisplayPort monitors with 1, 2 and 4 lanes as well as DVI and HDMI monitors with an adapter.
