Blackmagic Design ATEM Micro Camera Panel
SWPANELCCU1
New product
ATEM Micro Camera Panel
Portable broadcast-quality camera control panel with built-in battery, Bluetooth connectivity, and 8 physical buttons to adjust iris, pedestal black, shutter, master gain, white balance, RGB, and more.
Portable broadcast-quality camera control panel with built-in battery, Bluetooth connectivity, and 8 physical buttons to adjust iris, pedestal black, shutter, master gain, white balance, RGB, and more.
By buying this product you can collect up to 67 loyalty points. Your cart will total 67 points that can be converted into a voucher of 6,70 €.
- Send to a friend
- Remove this product from my favorite's list.
- Add this product to my list of favorites.
ATEM Micro Camera Panel

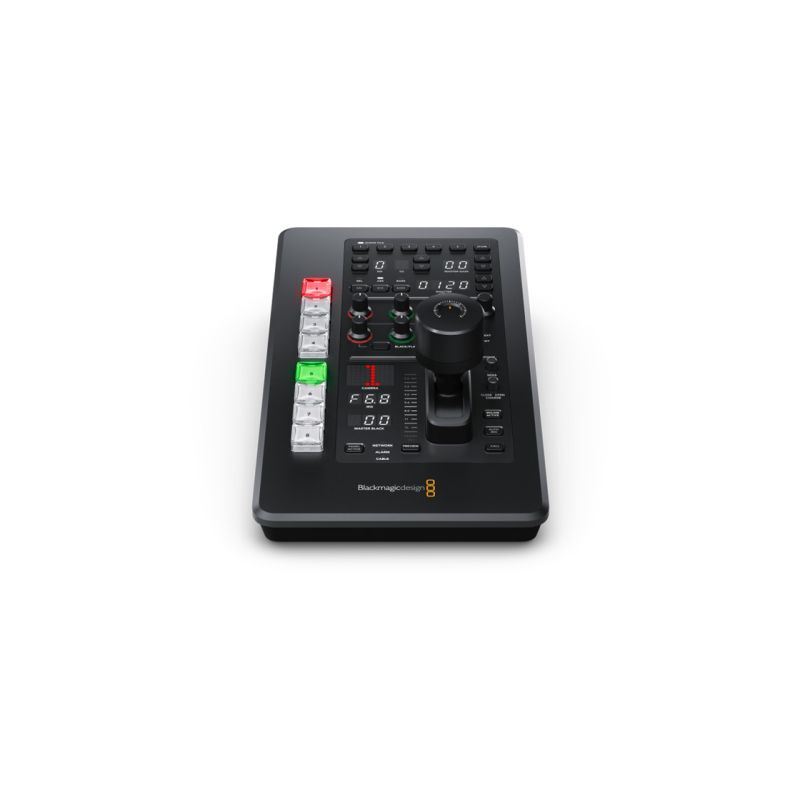

The ATEM Micro Camera Panel is a compact control surface designed for remote CCU-style shading of Blackmagic cameras. Featuring a built-in battery and Bluetooth connectivity, it provides wireless or USB-C operation with precise control over essential image parameters. Operators can adjust iris, pedestal black, shutter speed, master gain, white balance, and RGB levels using 8 dedicated buttons and a tri-axis joystick. Compact yet powerful, it’s perfect for mobile broadcast setups or tight production environments, offering fast and professional multi-camera control through ATEM Software Control.
The ATEM Micro Camera Panel is a compact control surface designed for remote CCU-style shading of Blackmagic cameras. Featuring a built-in battery and Bluetooth connectivity, it provides wireless or USB-C operation with precise control over essential image parameters. Operators can adjust iris, pedestal black, shutter speed, master gain, white balance, and RGB levels using 8 dedicated buttons and a tri-axis joystick. Compact yet powerful, it’s perfect for mobile broadcast setups or tight production environments, offering fast and professional multi-camera control through ATEM Software Control.
Connections
| Computer Interface | USB Type-C |
| Bluetooth | Bluetooth 5.1 LE |
| Software Updates | 1 USB-C port for firmware updates |
Specifications
| Camera Select Buttons | 8 NKK buttons (programmable via utility) |
| Camera Number Display | Green = off-air; Red = on-air |
| Configuration | White and black balance |
| Flare Adjustment | Via modifier button |
| Tri-axis Joystick | 1 |
| Preview Button | 1 |
| Iris Control | Auto iris, threshold and focus control |
| Iris Range | From f32 to f1.2 |
| Gain Range | From -12dB to +32dB |
| ND Filters | 0, 2, 4, 6 |
| Shutter Speed | From 1/24 to 1/2000 |
| White Balance Range | From 2500K to 10000K |
| Recallable Scenes | 5 per camera |
| Panel Active | Project settings dependent |
Software
| Software Applications | The panel controls ATEM Software Control on the host computer |
Operating Systems
| macOS | macOS 14.0 Sonoma, 15.0 Sequoia or later |
| Windows | Windows 10 and 11, Windows 11 for ARM |
Power Requirements
| Power Supply | Internal battery with power switch; USB-C for external power and charging |
| Power Consumption | 4 W (max) |
| Battery Life | At least 3 hours (under normal use) |
Environmental Specifications
| Operating Temperature | 5° to 40° C |
| Storage Temperature | -20° to 45° C |
| Relative Humidity | 0% to 90% non-condensing |
Included Items
| Package Contents | ATEM Micro Camera Panel, welcome wallet with QR code to download the software, 1 x USB-C cable |
Warranty
| Manufacturer Warranty | Limited 1-year warranty provided by Blackmagic Design |
