Blackmagic Design DeckLink Quad 2
GTIN: 9338716003468
In stock
SKU
BMD-BDLKDVQD2
Special Price €970.88 €795.80 Regular Price €1,055.30
Commercial guarantee of durability offered by the producer at no extra cost: 3 years. See the GARAN label

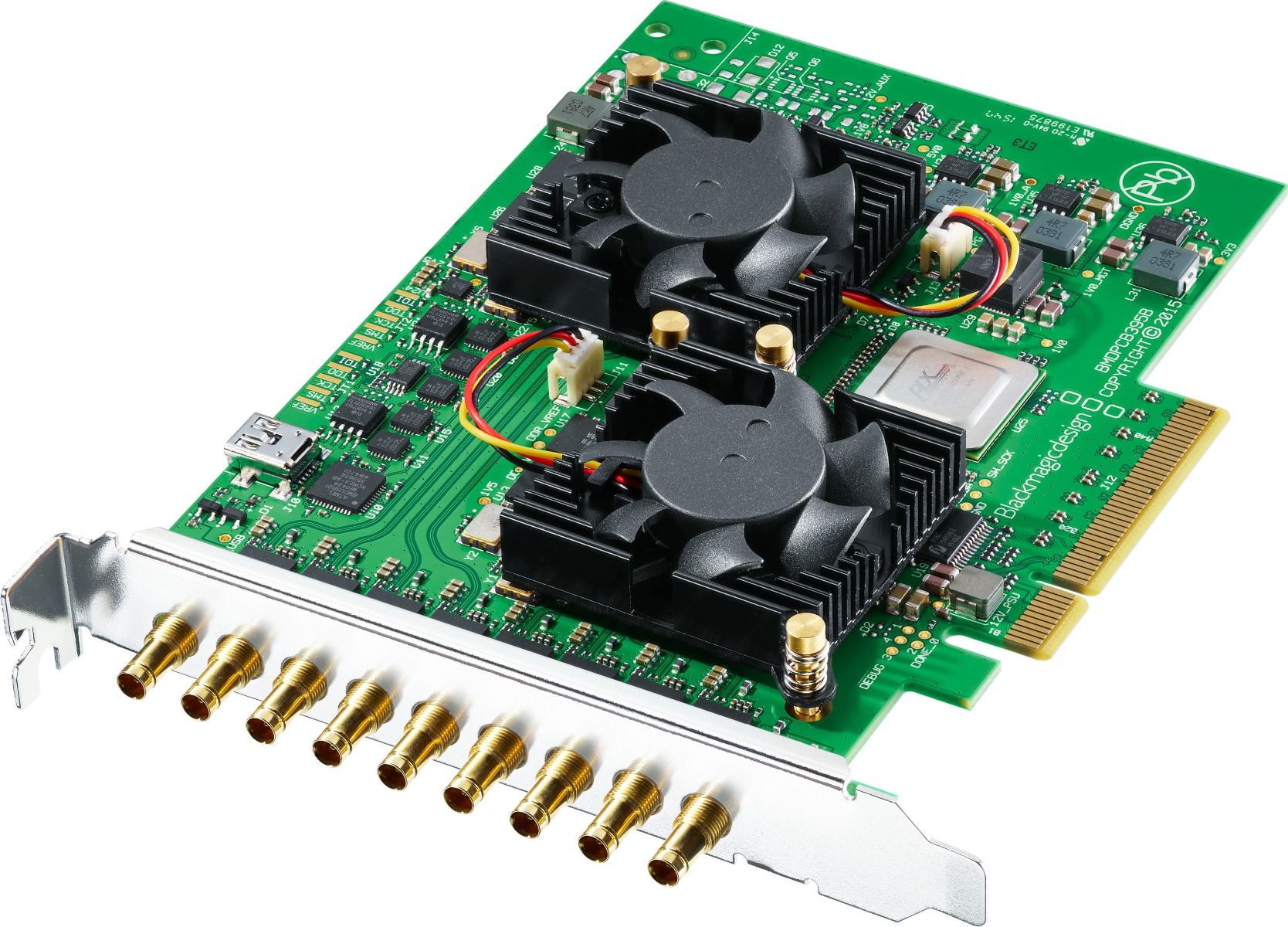

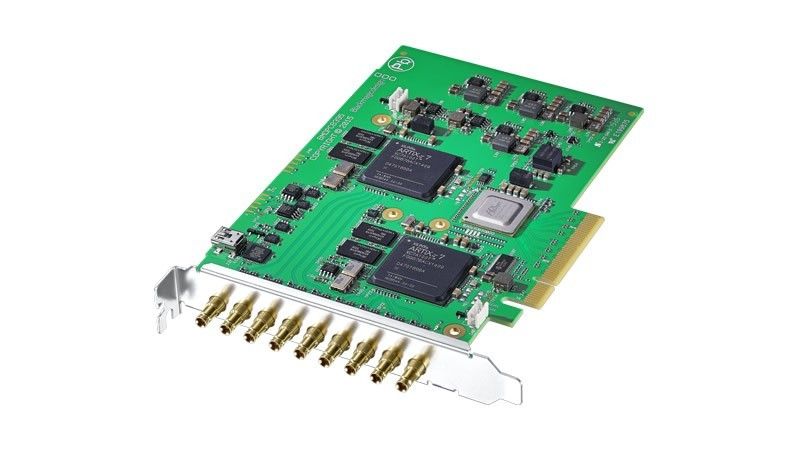

DeckLink Quad 2
DeckLink Quad 2 features 8 independent SDI capture and playback channels in a single card!
Fully compatible with the previous 4 channel model, this new model also allows 4 independent capture and playback channels but now also includes 4 extra channels that developers can use for configuring the card in any combination of up to 8 capture or 8 playback channels. This means DeckLink Quad 2 allows each of the 8 3G-SDI BNC connectors to switch direction between capture or playback in SD and HD up to 1080p60 and as a complete independent channel.
| Product Condition | New |
|---|---|
| Manufacturer | Blackmagic Design |
| manufacturer code | BDLKDVQD2 |
| Ean | 9338716003468 |
| Taric Code | 8471800000 |
| Maximum resolution | HD |
| SDI rate | 3G |
| SD support (PAL/NTSC) | Yes |
| Function | Capture and playback |
| Computer interface | PCI Express |
| Video connection type | SDI |
| Independent channels | 8 |
| Channel configuration | Each input or output |
| PCI Express slot (lanes) | 8 |
| Format | Internal card |
| Reference input | Yes |
| Operating systems | macOS, Windows, Linux |
