Blackmagic Design Blackmagic Videohub Mini 4x2 12G
VHUBSMTG12G0402
New product
Blackmagic Videohub Mini 4x2 12G
A compact SDI video router for SD, HD, and Ultra HD up to 2160p60. It features 4 12G-SDI inputs with dedicated loop outputs, 2 independent SDI outputs, a front control panel, an emergency SDI input, and a USB-C webcam output.
A compact SDI video router for SD, HD, and Ultra HD up to 2160p60. It features 4 12G-SDI inputs with dedicated loop outputs, 2 independent SDI outputs, a front control panel, an emergency SDI input, and a USB-C webcam output.
By buying this product you can collect up to 68 loyalty points. Your cart will total 68 points that can be converted into a voucher of 6,80 €.
- Send to a friend
- Remove this product from my favorite's list.
- Add this product to my list of favorites.
Blackmagic Videohub Mini 4x2 12G

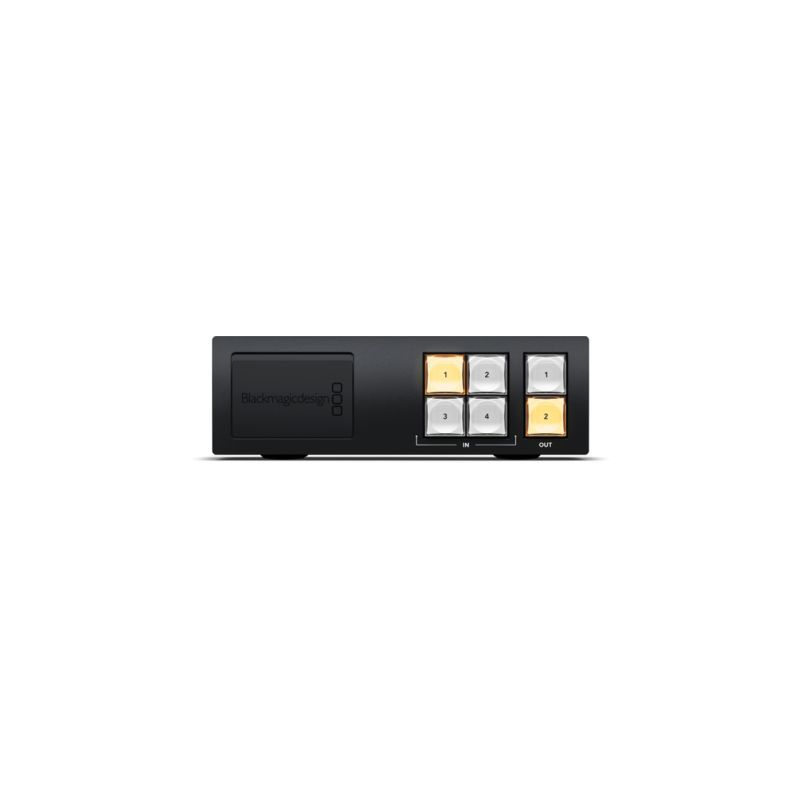

Blackmagic Videohub Mini 4x2 12G is a professional-grade, compact SDI router with zero latency, designed to switch video in any combination of SD, HD, and Ultra HD formats up to 2160p60. Occupying only one-third of a rack width, it provides 4 12G-SDI inputs—each with a loop output—and 2 dedicated 12G-SDI outputs. The front panel features intuitive routing controls and includes an emergency 12G-SDI input for external sources, as well as a USB-C output for webcam use. It supports SDI signal reclocking, remote control over Ethernet, and full compatibility with all professional SDI video standards.
Blackmagic Videohub Mini 4x2 12G is a professional-grade, compact SDI router with zero latency, designed to switch video in any combination of SD, HD, and Ultra HD formats up to 2160p60. Occupying only one-third of a rack width, it provides 4 12G-SDI inputs—each with a loop output—and 2 dedicated 12G-SDI outputs. The front panel features intuitive routing controls and includes an emergency 12G-SDI input for external sources, as well as a USB-C output for webcam use. It supports SDI signal reclocking, remote control over Ethernet, and full compatibility with all professional SDI video standards.
Connections
| Feature | Details |
|---|---|
| SDI Video Inputs | 4 (Front input overrides rear input 4) |
| SDI Video Outputs | 2 |
| SDI Rates | 270Mb, 1.5G, 3G, 6G, 12G |
| Input Resynchronization | On all 4 inputs for instantaneous switching |
| SDI Reclocking | On all outputs |
| Reference Inputs | None |
| Reference Outputs | None |
| Webcam Output | USB-C |
| Ethernet | 10/100/1000 BASE-T |
| Computer Interface | 1 x USB Type-C 3.1 Gen 1 for webcam output, software updates, and connection to Videohub Setup Utility |
Standards and Formats
| Feature | Details |
|---|---|
| SD Video Standards | 525i59.94 NTSC, 625i50 PAL |
| HD Video Standards | 720p50/59.94/60, 1080i50/59.94/60, 1080p23.98–60, PsF23.98–30 |
| 2K Video Standards | 2Kp23.98–60 DCI, 2KPsF23.98–30 DCI |
| Ultra HD Standards | 2160p23.98–60 |
| 4K DCI Standards | 4Kp23.98–60 DCI |
| SDI Compliance | SMPTE 259M, 292M, 296M, 372M, 424M, 425M Level A/B, 2081-1/10, 2082-10, ITU-R BT.656, ITU-R BT.601 |
| Audio Sampling | 48kHz, 24-bit |
| Video Sampling | YUV 4:2:2 and RGB 4:4:4 |
| Color Precision | RGB 10/12-bit in HD and 2K; Ultra HD up to 2160p30; 4K up to 4Kp30 DCI. YUV 10-bit in all modes |
| Color Space | Rec. 601, Rec. 709, Rec. 2020 |
| SDI Auto Switching | Auto detects between SD, HD, and Ultra HD on each input |
| SDI Metadata | Video payload ID ancillary data according to SMPTE 352M |
Control, Software & Power
| Feature | Details |
|---|---|
| Built-in Control Panel | 6 buttons |
| External Control Panel | Blackmagic Videohub software for Mac/Windows. Compatible with Smart Control Pro and Master Control Pro |
| Control Panel Connection | Ethernet |
| Software Control | Included for Windows™ and Mac™ |
| Software Updates | Via included utility |
| Supported OS | Mac 14.0 Sonoma / 15.0 Sequoia+, Windows 10/11 |
| Power Supply | 1 x Internal 100-240V AC 50/60Hz, 1 x DC 12V input with reverse polarity protection |
| Power Consumption | Max 17W |
| Operating Temperature | 0° to 40° C |
| Storage Temperature | -20° to 60° C |
| Relative Humidity | 0% to 90% non-condensing |
| Included Accessories | Blackmagic Videohub Mini 4x2 12G, welcome wallet with QR code for software download |
| Warranty | 1-year limited manufacturer’s warranty |
