Blackmagic Design ATEM Mini Extreme ISO G2
SWATEMMINICEXTISOG2
New product
ATEM Mini Extreme ISO G2
Compact video switcher with 8 HDMI inputs, multi-channel ISO recording, built-in streaming, multiview, USB webcam output, and Thunderbolt for recording and playback. Features include DVE, chroma keyer, and built-in media player.
Compact video switcher with 8 HDMI inputs, multi-channel ISO recording, built-in streaming, multiview, USB webcam output, and Thunderbolt for recording and playback. Features include DVE, chroma keyer, and built-in media player.
By buying this product you can collect up to 226 loyalty points. Your cart will total 226 points that can be converted into a voucher of 22,60 €.
- Send to a friend
- Remove this product from my favorite's list.
- Add this product to my list of favorites.

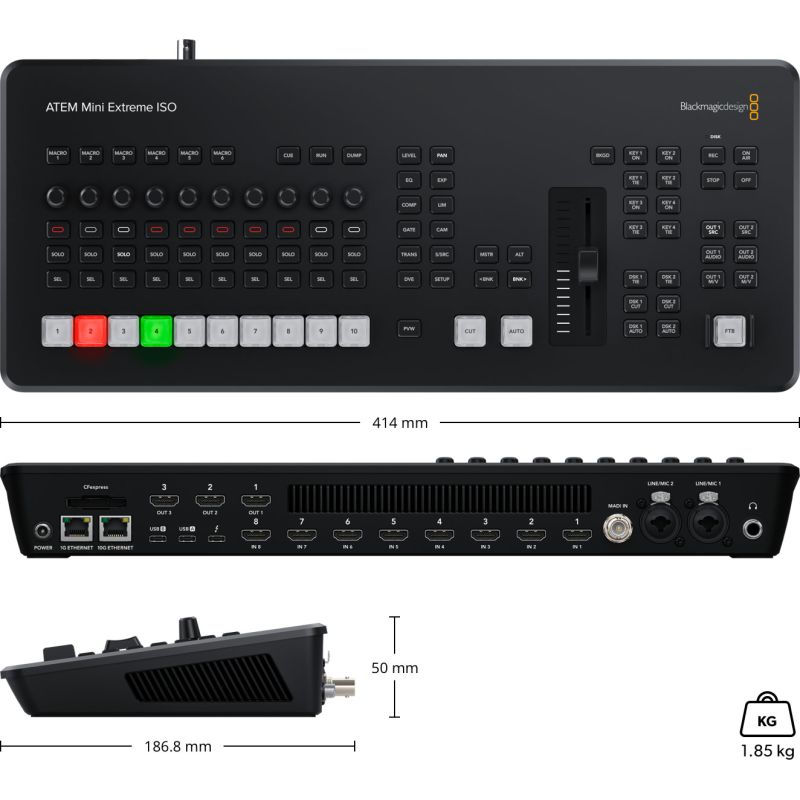

ATEM Mini Extreme ISO G2
TEM Mini Extreme ISO G2 is a powerful yet compact live production switcher, ideal for building a high-end broadcast studio. It features 8 HDMI inputs with standards conversion, 3 independent HDMI outputs, built-in streaming engine, multiview, CFexpress and Thunderbolt support for recording/playback. It also includes 10G Ethernet for high-speed network storage, XLR audio inputs, USB webcam output, DVE, chroma keyer, media player, and ISO recording of all 8 HDMI inputs.
TEM Mini Extreme ISO G2 is a powerful yet compact live production switcher, ideal for building a high-end broadcast studio. It features 8 HDMI inputs with standards conversion, 3 independent HDMI outputs, built-in streaming engine, multiview, CFexpress and Thunderbolt support for recording/playback. It also includes 10G Ethernet for high-speed network storage, XLR audio inputs, USB webcam output, DVE, chroma keyer, media player, and ISO recording of all 8 HDMI inputs.
Connections
| Video Inputs | 9 (8 HDMI + 1 streaming) |
| HDMI Inputs | 8 x HDMI type A, 10-bit HD with 2-channel embedded audio |
| HDMI Video Outputs | 3 |
| Program HDMI Outputs | 3 |
| AUX Outputs | 4 |
| Webcam Output | 2 x USB-C at 720p or 1080p in PGM frame rate |
| Multiview | 1 x HDMI, 1 x webcam |
| Audio Inputs | 2 x XLR Combo with phantom power, 1 x BNC MADI 32-channel digital audio |
| Audio Outputs | 1 x 6.35mm headphone jack |
| Timecode Connection | No |
| Reference Input | No |
| Input Resync | For all 8 HDMI inputs and remote sources |
| Frame Rate and Format Converters | For all 8 HDMI inputs and remote sources |
| Ethernet | 1 x 1G for standard streaming, control panels, internet; 1 x 10G for network recording |
| Computer Interface | 2 x USB-C 3.1 Gen 1, 1 x Thunderbolt |
Video Standards
| Supported Input Formats | 720p50, 59.94, 60; 1080p23.98 to 60; 1080i50 to 60 |
| HDMI Output Formats | 1080p23.98 to 60 |
| Streaming Formats | 1080p23.98 to 60 |
| Color Sampling | 4:2:2 YUV |
| Color Precision | 10-bit |
| Color Space | Rec.709 |
| Computer HDMI Input Resolutions | 1280x720p 50/59.94/60Hz; 1920x1080p 23.98–60Hz; 1080i 50/59.94/60Hz |
| Color Space Conversion | Real-time hardware conversion |
Features
| Effect Rows | 1 |
| Direct Crosspoints | 10 |
| Crosspoint Buttons | NKK Buttons |
| Transition Preview | 1 |
| Source Select Bus | Multi-function controls with Fairlight audio status |
| Macro Buttons | 6 |
| Transition Buttons | Multi-function with Fairlight audio status |
| Transition Duration | Configurable via multi-function controls |
| Keyer Buttons | 8 |
| AUX Buttons | 6 |
| T-Bar | 1 |
| Record Buttons | 2 |
| Streaming Buttons | 2 |
| DSK Transition Selectors | 6 |
| FTB Button | 1 NKK button |
| Primary Keys | 4 |
| Secondary Keys | 2 |
| Advanced Chroma Keyers | Up to 4 |
| SuperSource | 1 |
| DVEs | 2 |
| Linear/Luma Keyers | Up to 4 |
| Stinger/DVE Transition Keyers | DVE only |
| Color Generators | 2 |
| Assignable Windows | 16 |
| Tally | Red for program, green for preview |
Audio
| Mixer | 26 inputs x 2 channels (HDMI, MADI, XLR, Thunderbolt) |
| Controls | On/Off/AFV, gain, level and peak metering, compressor, gate, limiter, 6-band parametric EQ |
| Analog Audio Input | Balanced stereo XLR combo connectors |
| Analog Input Delay | Max 8 frames |
| Mic Power Supply | +48V phantom power on XLR combo inputs |
Streaming
| Direct Streaming | RTMP and SRT via Ethernet or shared USB-C internet |
Recording
| Direct Recording | CFExpress slot, USB-C, or network storage |
| Video Recording | 8 x HDMI inputs + program output, H.264 .mp4 files, AAC audio |
| Audio Recording | .wav files at 48kHz 24-bit from 26 stereo sources |
| Switching | DaVinci Resolve project file (.drp) |
| File System Support | exFAT, APFS, HFS+ |
Multiview
| Monitoring Layouts | 16, 13, 10, 7 or 4 windows: includes program, preview, HDMI inputs, clean feed, media player, streaming & recording status, audio meters |
| Multiview Video Standard | HD |
Media Players
| Media Players | 2 with fill and key channels |
| Still Store Capacity | 200 stills at 1080 HD resolution |
| Supported Still Formats | PNG, TGA, BMP, GIF, JPEG, TIFF |
| Video Clip Format | TGA |
| Audio Clip Formats | WAV, MP3, AIFF |
Control
| Control Panel | Integrated hardware panel + ATEM Software Control |
| Panel Connection | 10/100/1000/10G BASE-T Ethernet or direct USB-C |
| Compatible Panels | ATEM Micro Panel, ATEM 1 M/E, 2 M/E, 4 M/E Advanced Panels |
| Included Software | ATEM Software Control for macOS and Windows |
Software
| Included Software | ATEM Software Control for macOS 14+ (Sonoma), 15+ (Sequoia), Windows 10/11 |
| Software Updates | Via USB or Ethernet |
| Configuration | Via ATEM Software Control (IP via ATEM Setup utility over USB) |
Operating Systems
| macOS | 14.0 Sonoma, 15.0 Sequoia or later |
| Windows | Windows 10, 11 (also ARM) |
Power Requirements
| Power Supply | 1 x external 12V |
| Power Consumption | Max 120 W |
Environmental Specifications
| Operating Temperature | 5° to 40° C |
| Storage Temperature | -10° to 60° C |
| Relative Humidity | 0% to 90% non-condensing |
Package Contents
| Included Items | ATEM Mini Extreme ISO G2, 12V DC power supply |
Warranty
| Manufacturer Warranty | Limited 1-year warranty from Blackmagic Design |
