Blackmagic Design ATEM 4 M/E Constellation 4K Plus
SWATEMSCN2/2ME4/4K/P
New product
ATEM 4 M/E Constellation 4K Plus
A powerful 4 M/E Ultra HD switcher with 80 12G-SDI inputs featuring standards conversion, 48 dedicated outputs, 16 advanced keyers, 4 multiviews, and 2 SuperSource engines—all in just 4 rack units.
A powerful 4 M/E Ultra HD switcher with 80 12G-SDI inputs featuring standards conversion, 48 dedicated outputs, 16 advanced keyers, 4 multiviews, and 2 SuperSource engines—all in just 4 rack units.
By buying this product you can collect up to 1469 loyalty points. Your cart will total 1469 points that can be converted into a voucher of 146,90 €.
- Send to a friend
- Remove this product from my favorite's list.
- Add this product to my list of favorites.

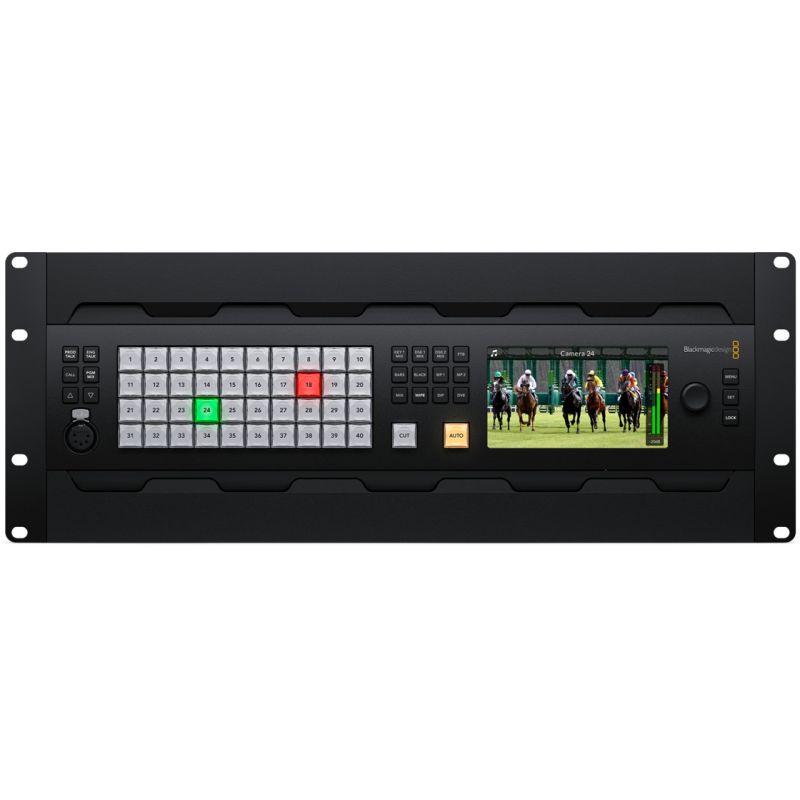

ATEM 4 M/E Constellation 4K Plus
The ATEM 4 M/E Constellation 4K Plus is an exceptionally powerful 4 M/E switcher designed for high-end Ultra HD live production. It features an impressive 80 12G-SDI inputs, each with built-in standards conversion to ensure full compatibility across mixed sources. The switcher offers 48 dedicated 12G-SDI auxiliary outputs, 4 DVEs for dynamic real-time effects, and 16 advanced ATEM chroma keyers for broadcast-quality keying. It also includes 4 integrated media players, 4 independent Ultra HD multiview outputs, and 2 SuperSource processors for expanded source layering. Additional features include integrated talkback support and a professional Fairlight audio mixer with 156 channels, complete with EQ, dynamics, and comprehensive mixing tools—ideal for complex, large-scale production environments.
The ATEM 4 M/E Constellation 4K Plus is an exceptionally powerful 4 M/E switcher designed for high-end Ultra HD live production. It features an impressive 80 12G-SDI inputs, each with built-in standards conversion to ensure full compatibility across mixed sources. The switcher offers 48 dedicated 12G-SDI auxiliary outputs, 4 DVEs for dynamic real-time effects, and 16 advanced ATEM chroma keyers for broadcast-quality keying. It also includes 4 integrated media players, 4 independent Ultra HD multiview outputs, and 2 SuperSource processors for expanded source layering. Additional features include integrated talkback support and a professional Fairlight audio mixer with 156 channels, complete with EQ, dynamics, and comprehensive mixing tools—ideal for complex, large-scale production environments.
Connections
| Video Inputs | 80 |
| Video Outputs | 52 |
| AUX Outputs | 48 |
| SDI Standards | 1.5G, 3G, 6G, 12G |
| Audio Inputs | 2 x balanced 1/4" jacks, 2 x 64-channel MADI BNC, 1 x 5-pin XLR for talkback |
| Audio Outputs | 2 x balanced 1/4" jacks, 4 x 64-channel MADI BNC, 1 x 5-pin XLR for talkback |
| Timecode Connections | 1 x 3-pin XLR input, 1 x 3-pin XLR output |
| Reference Input | Tri-Sync or Black Burst |
| Source Resync | All 80 inputs |
| Frame Rate and Format Converters | All 80 inputs |
| SDI Video Inputs | 80 x 10-bit 720p, 1080i, 1080p, 2160p |
| SDI Video Outputs | 52 x 10-bit 720p, 1080i, 1080p, 2160p |
| SDI Multiview Outputs | 4 dedicated, up to 48 assignable |
| Webcam Output | 1 x USB-C at 720p or 1080p at program frame rate |
| Control Panel Connection | BaseT 10/100/1000 direct or via network |
| Internal Timecode Generator | Yes |
| Talkback | RJ45 for third-party systems |
| Tally Output | Via GPI and Tally Interface on any of the 48 SDI outputs |
| Computer Interface | 1 x USB-C port |
Standards
| HD Video Standards | 720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080p23.98–60 |
| Ultra HD Video Standards | 2160p23.98–60 |
| SDI Compliance | SMPTE 292M, 296M, 424M, 425M level A/B, 2081‑1/10, 2082‑1/10/12 |
| Video Sampling | 4:2:2 |
| Color Precision | 10-bit |
| Color Space | REC 709, REC 2020 |
| Auto SDI Switching | 1.5G, 3G (level A/B), 6G, 12G-SDI auto-detected |
Specifications
| Primary Keyers | 16 |
| Secondary Keyers | 4 |
| Advanced Chroma Keyers | 16 |
| SuperSource | 2 |
| Talkback | Yes |
| Audio Return | Yes |
| Linear/Luma Keyers | 20 |
| Transition Keyers (Stinger/DVE) | 4 stingers, 4 DVEs |
| Composition Layers | 28 |
| Pattern Generators | 21 |
| Color Generators | 2 |
| DVEs | 4 |
| Control Panel | Front panel emergency switching, software, optional hardware panel |
| Assignable Windows | 64 |
| Tally | Red for program, green for preview |
| Source Labels in Windows | Yes |
Monitoring
| Monitoring | 4 x 16 multiview configurations for a total of up to 64 windows |
| Multiview Video Standard | HD or Ultra HD |
Media Players
| Media Players | 4 |
| Channels | Fill and key signal per player |
| Still Store Capacity | 64 |
| Clip Capacity | 4 |
| Clip Length in 720p HD | 3200 frames |
| Clip Length in 1080p HD | 1600 frames |
| Clip Length in Ultra HD | 400 frames |
| Supported Still Formats | PNG, TGA, BMP, GIF, JPEG, TIFF |
| Media Pool Video Formats | TGA |
| Media Pool Audio Formats | WAV, MP3, AIFF |
Display
| Interface | Minimum monitor resolution of 1366 x 768 |
| Front Panel | HD LCD video display; 42 LED buttons; 8 source buttons; 4 transition buttons; 6 talkback/mix buttons; control knob; Set button; Lock button |
Processing
| Processing Delay | < 10 lines |
| Mixer | 298 channels. On/Off/AFV switchable, level and peak monitoring, master gain control, 6-band parametric EQ, dynamics with expander, gate, compressor, limiter |
| Resolution Downconversion | 1 selectable output downconverted to HD |
Software
| Included Control Software | ATEM Software Control for macOS 14.0 Sonoma, 15.0 Sequoia or later, and Windows 10 and 11 |
| Software Updates | Via USB-C. Includes ATEM Setup utility |
| Configuration | Via ATEM Software Control, except for IP address (set via USB-C with ATEM Setup) |
Operating Systems
| macOS | macOS 14.0 Sonoma, 15.0 Sequoia or later |
| Windows | Windows 10 and 11, Windows 11 for ARM |
Power Requirements
| Power Supply | 2 x 100–240V AC internal, 50/60Hz |
| Power Consumption | Max 400 W |
Environmental Specifications
| Operating Temperature | 0° to 40° C |
| Storage Temperature | -20° to 60° C |
| Relative Humidity | 0% to 90% non-condensing |
Installation
| Installation | 4RU rack height |
Included Items
| Package Contents | ATEM 4 M/E Constellation 4K Plus, welcome wallet with QR code to download software |
Warranty
| Manufacturer Warranty | Limited 1-year warranty provided by the manufacturer |
