Blackmagic Design Blackmagic Videohub Mini 6x2 12G
VHUBSMTI12G0602
New product
Blackmagic Videohub Mini 6x2 12G
half-rack video router featuring six 12G-SDI inputs (each with loop-out), two 12G-SDI outputs and a reference input for sync. Its front panel also provides a backup 12G-SDI input, a 12G-SDI output and a USB-C webcam output.
half-rack video router featuring six 12G-SDI inputs (each with loop-out), two 12G-SDI outputs and a reference input for sync. Its front panel also provides a backup 12G-SDI input, a 12G-SDI output and a USB-C webcam output.
By buying this product you can collect up to 90 loyalty points. Your cart will total 90 points that can be converted into a voucher of 9,00 €.
- Send to a friend
- Remove this product from my favorite's list.
- Add this product to my list of favorites.
Blackmagic Videohub Mini 6x2 12G

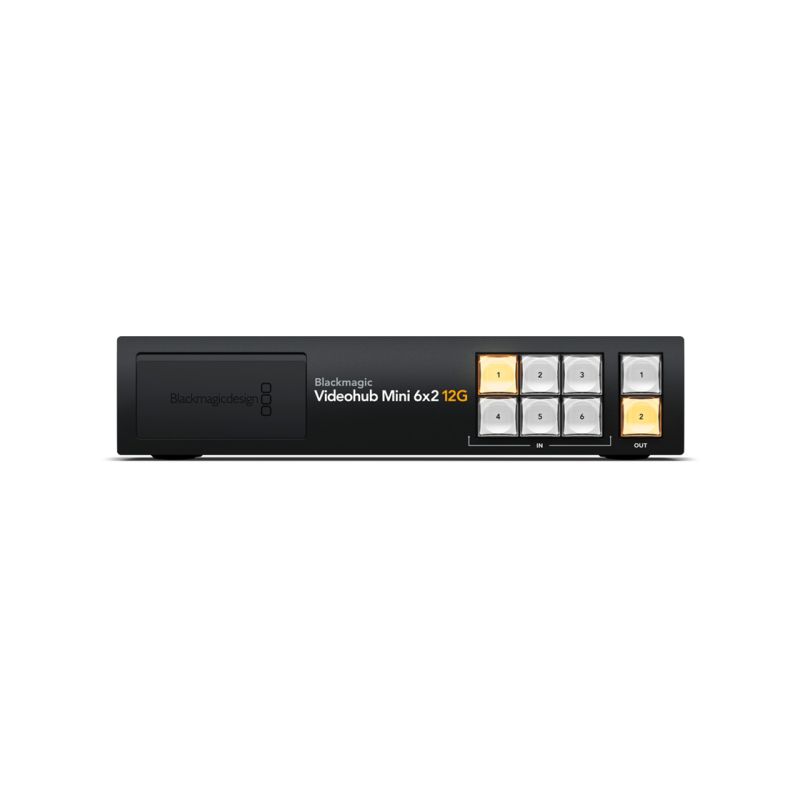

The Blackmagic Videohub Mini 6x2 12G is a zero-latency, half-rack video router engineered to handle SD, HD, and Ultra HD signals simultaneously. It features six 12G-SDI inputs and two 12G-SDI outputs, plus a reference input for instant synchronization switching. The front panel allows rapid routing of feeds and includes a backup 12G-SDI input for external sources and a USB-C webcam output. It supports SDI reclocking, remote control via Ethernet, and all SDI video formats up to 2160p60.
The Blackmagic Videohub Mini 6x2 12G is a zero-latency, half-rack video router engineered to handle SD, HD, and Ultra HD signals simultaneously. It features six 12G-SDI inputs and two 12G-SDI outputs, plus a reference input for instant synchronization switching. The front panel allows rapid routing of feeds and includes a backup 12G-SDI input for external sources and a USB-C webcam output. It supports SDI reclocking, remote control via Ethernet, and all SDI video formats up to 2160p60.
Connections
| Feature | Details |
|---|---|
| SDI Video Inputs | 6 (front input overrides rear input 6) |
| SDI Video Outputs | 2 (front output mirrors rear output 2) |
| SDI Rates | 270Mb, 1.5G, 3G, 6G, 12G |
| Input Resynchronization | On all 6 inputs for instantaneous switching |
| SDI Reclocking | On all SDI outputs |
| Reference Inputs | Tri-Sync or Black Burst |
| Reference Loop Output | Loop-out with reference termination |
| Webcam Output | USB-C |
| Ethernet | 10/100/1000 BASE-T |
| Computer Interface | 1× USB-C 3.1 Gen 1 for webcam, updates & Videohub Setup |
Video Standards
| Feature | Details |
|---|---|
| SD Video Standards | 525i59.94 NTSC, 625i50 PAL |
| HD Video Standards | 720p50/59.94/60; 1080i50/59.94/60; 1080p23.98–60; 1080PsF23.98–30 |
| 2K Video Standards | 2Kp23.98–60 DCI; 2KPsF23.98–30 DCI |
| Ultra HD Standards | 2160p23.98–60 |
| 4K DCI Standards | 4Kp23.98–60 DCI |
| SDI Compliance | SMPTE 259M/292M/296M/372M/424M/425M A/B; 2081-1/10; 2082-10; ITU-R BT.656/601 |
| Audio Sampling | 48 kHz, 24-bit |
| Video Sampling | YUV 4:2:2, RGB 4:4:4 |
| Color Precision | RGB 10/12-bit HD/2K; Ultra HD 2160p30; 4K 4Kp30 DCI; YUV 10-bit |
| Color Space | Rec. 601, 709, 2020 |
| SDI Auto-Switching | Auto-detects SD, HD (3G Level A/B), 6G, 12G on each input |
| SDI Metadata | Video payload ID ancillary data (SMPTE 352M) |
Control, Software & Power
| Feature | Details |
|---|---|
| Built-in Control Panel | 8 buttons |
| External Control Panel | Videohub software for Mac/Windows; compatible with Smart/Master Control Pro; includes SDK & Ethernet Control Protocol |
| Control Connection | Ethernet |
| Software Control | Included for Windows™ & Mac™ |
| Software Updates | Via included utility |
| Supported OS | macOS 14.0 Sonoma, 15.0 Sequoia+; Windows 10/11 (64-bit) |
| Power Supply | 1×100–240V AC internal (IEC cable required); 1×DC 12V input with reverse-polarity protection |
| Power Consumption | 18.5W max |
| Operating Temperature | 0° to 40° C |
| Storage Temperature | -20° to 60° C |
| Relative Humidity | 0% to 90% non-condensing |
| Included Accessories | Blackmagic Videohub Mini 6x2 12G; welcome wallet with QR code |
| Warranty | 1-year limited warranty |
