Blackmagic Design Blackmagic Videohub Mini 8x4 12G
VHUBSMTK12G0804
New product

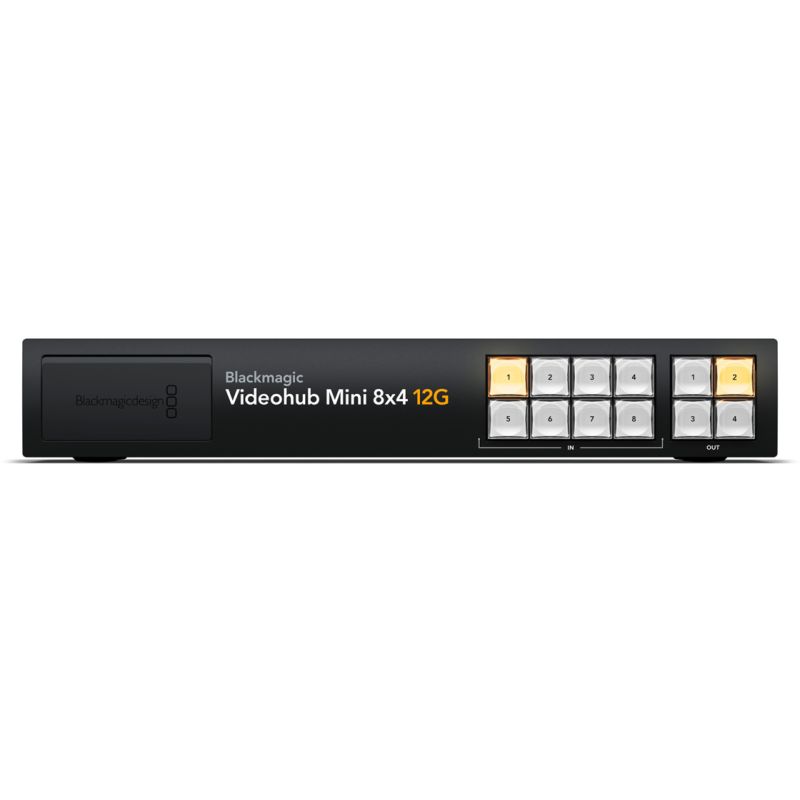

Blackmagic Videohub Mini 8x4 12G
Compact ⅔ rack-width video router featuring 8 12G-SDI inputs with dedicated loop outputs and 4 independent 12G-SDI outputs. It includes a front control panel with additional 12G-SDI input and output, USB-C webcam output, and a reference input for signal alignment.
Compact ⅔ rack-width video router featuring 8 12G-SDI inputs with dedicated loop outputs and 4 independent 12G-SDI outputs. It includes a front control panel with additional 12G-SDI input and output, USB-C webcam output, and a reference input for signal alignment.
By buying this product you can collect up to 113 loyalty points. Your cart will total 113 points that can be converted into a voucher of 11,30 €.
- Send to a friend
- Remove this product from my favorite's list.
- Add this product to my list of favorites.
Blackmagic Videohub Mini 8x4 12G
Blackmagic Videohub Mini 8x4 12G is a compact zero-latency router compatible with any combination of SD, HD, and Ultra HD formats simultaneously. With a ⅔ rack-width design, it features 8 12G-SDI inputs and 4 12G-SDI outputs, along with reference connections to synchronize outputs with instant switching. The front control panel enables quick routing of video signals and includes an emergency 12G-SDI input for external devices and a USB-C output for webcam use. It supports SDI reclocking, remote control via Ethernet, and all SDI video standards up to 2160p60.
Blackmagic Videohub Mini 8x4 12G is a compact zero-latency router compatible with any combination of SD, HD, and Ultra HD formats simultaneously. With a ⅔ rack-width design, it features 8 12G-SDI inputs and 4 12G-SDI outputs, along with reference connections to synchronize outputs with instant switching. The front control panel enables quick routing of video signals and includes an emergency 12G-SDI input for external devices and a USB-C output for webcam use. It supports SDI reclocking, remote control via Ethernet, and all SDI video standards up to 2160p60.
Connections
| SDI Video Inputs | 8 (Front input overrides rear input 8) |
| SDI Video Outputs | 4 (Front output mirrors rear output 4) |
| SDI Rates | 270Mb, 1.5G, 3G, 6G, 12G |
| Source Resynchronization | On all 8 inputs for instant switching |
| SDI Reclocking | On all SDI outputs |
| Reference Inputs | Tri-Sync or Black Burst |
| Reference Outputs | Loop output with termination |
| Webcam Output | USB‑C |
| Ethernet | 10/100/1000 BASE-T |
| Computer Interface | 1 x USB-C 3.1 Gen 1 |
Video Standards
| SD Video Standards | 525i59.94 NTSC, 625i50 PAL |
| HD Video Standards | 720p50/59.94/60, 1080i50/59.94/60, 1080p23.98–60, PsF23.98–30 |
| 2K Video Standards | 2Kp23.98–60 DCI, 2KPsF23.98–30 DCI |
| Ultra HD Standards | 2160p23.98–60 |
| 4K DCI Standards | 4Kp23.98–60 DCI |
| SMPTE Compliance | SMPTE 259M, 292M, 296M, 372M, 424M, 425M A/B, 2081-1/10, 2082-10, ITU-R BT.656/601 |
| Audio Sampling | 48kHz, 24-bit |
| Color Sampling | YUV 4:2:2 and RGB 4:4:4 |
| Color Precision | RGB 4:4:4 at 10 and 12-bit (HD, 2K), Ultra HD up to 2160p30, 4K up to 4Kp30 DCI. YUV 4:2:2 at 10-bit in all modes |
| Color Space | REC 601, REC 709, REC 2020 |
| Automatic Input Switching | 270Mb SD‑SDI, 1.5G HD‑SDI, 3G-SDI A/B, 6G, 12G‑SDI |
| Compatible SDI Metadata | Ancillary data SMPTE 352M |
Control, Software and Power
| Integrated Control Panel | 12 buttons |
| External Control Panel | Blackmagic Videohub Software (Mac/Windows), Smart Control Pro, Master Control Pro, SDK and Protocol |
| Control Panel Connection | Ethernet |
| Software Control | Included for Mac and Windows |
| Firmware Update | Via software updater |
| Operating Systems | Mac 14.0 Sonoma, Mac 15.0 Sequoia or later, Windows 10/11 64-bit |
| Power Requirements | 100-240V AC internal 50/60Hz, IEC cable required, 12V DC input with polarity protection |
| Power Consumption | 23W max |
| Included Items | Blackmagic Videohub Mini 8x4 12G, Welcome wallet with QR code for software download |
| Warranty | 1-year limited manufacturer’s warranty |
