Swit S-3822S – 2-channel charger for V-Mount batteries

Swit S-3822S 2-Channel V-Mount Charger

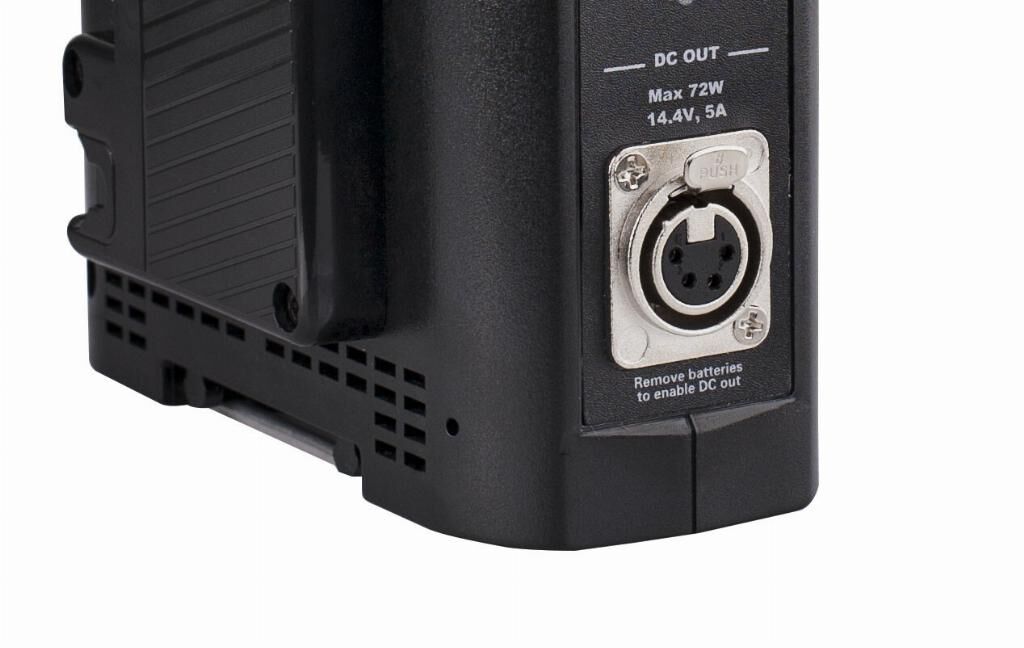

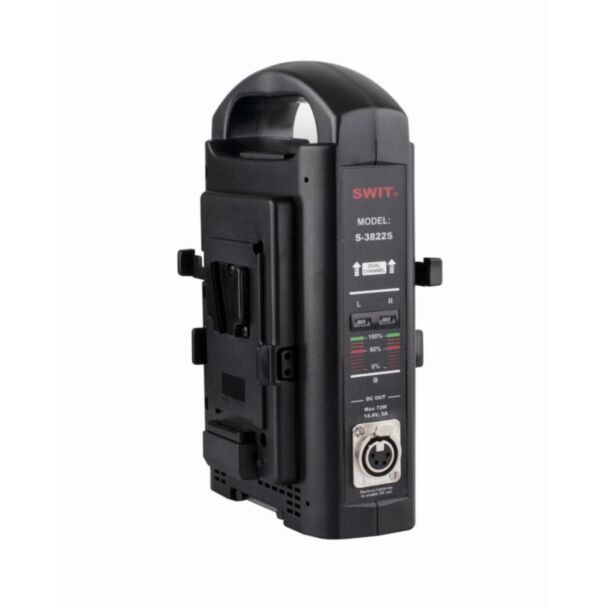

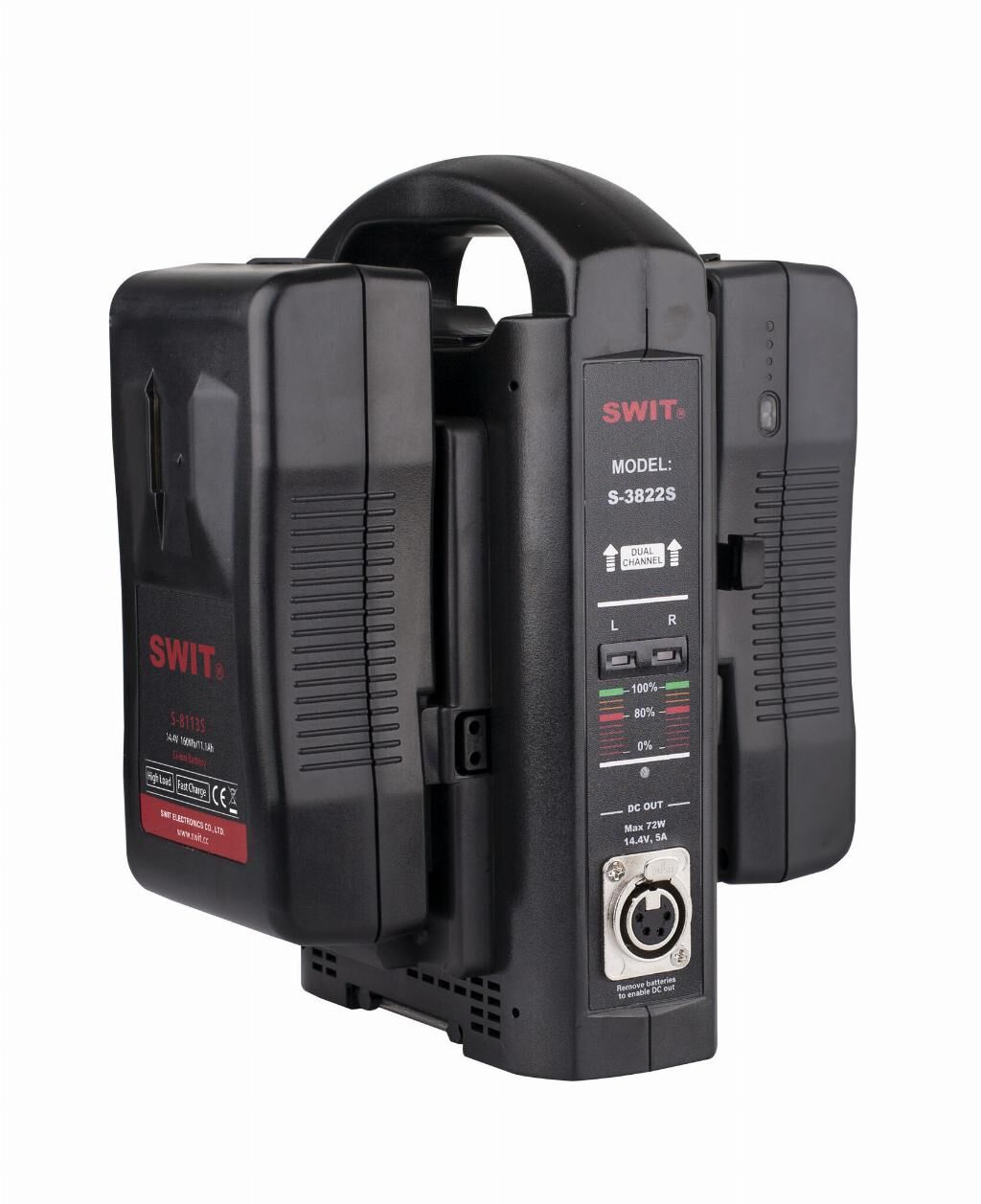

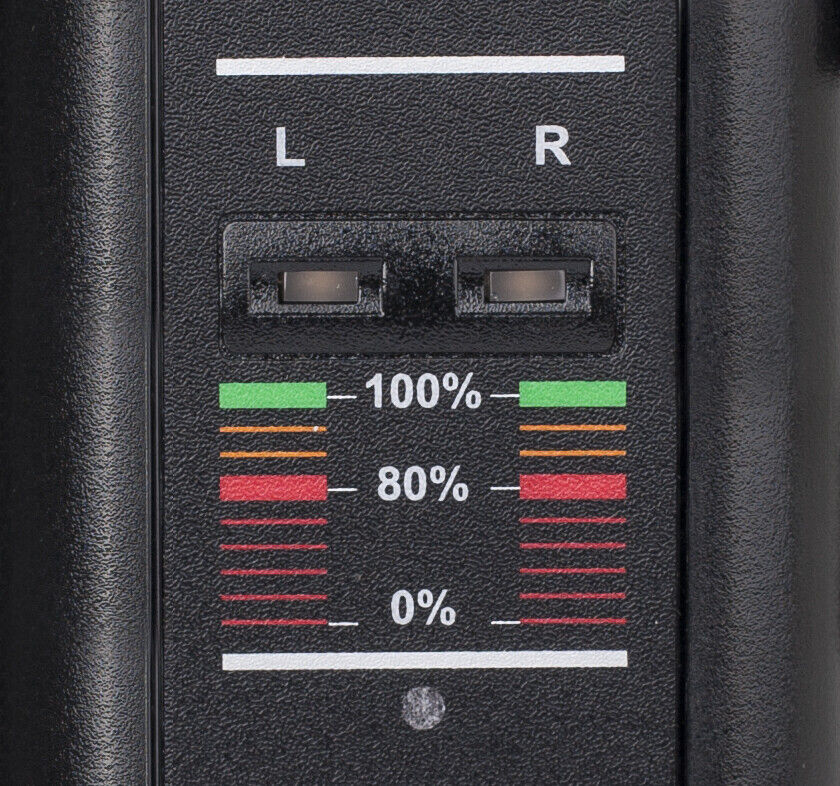

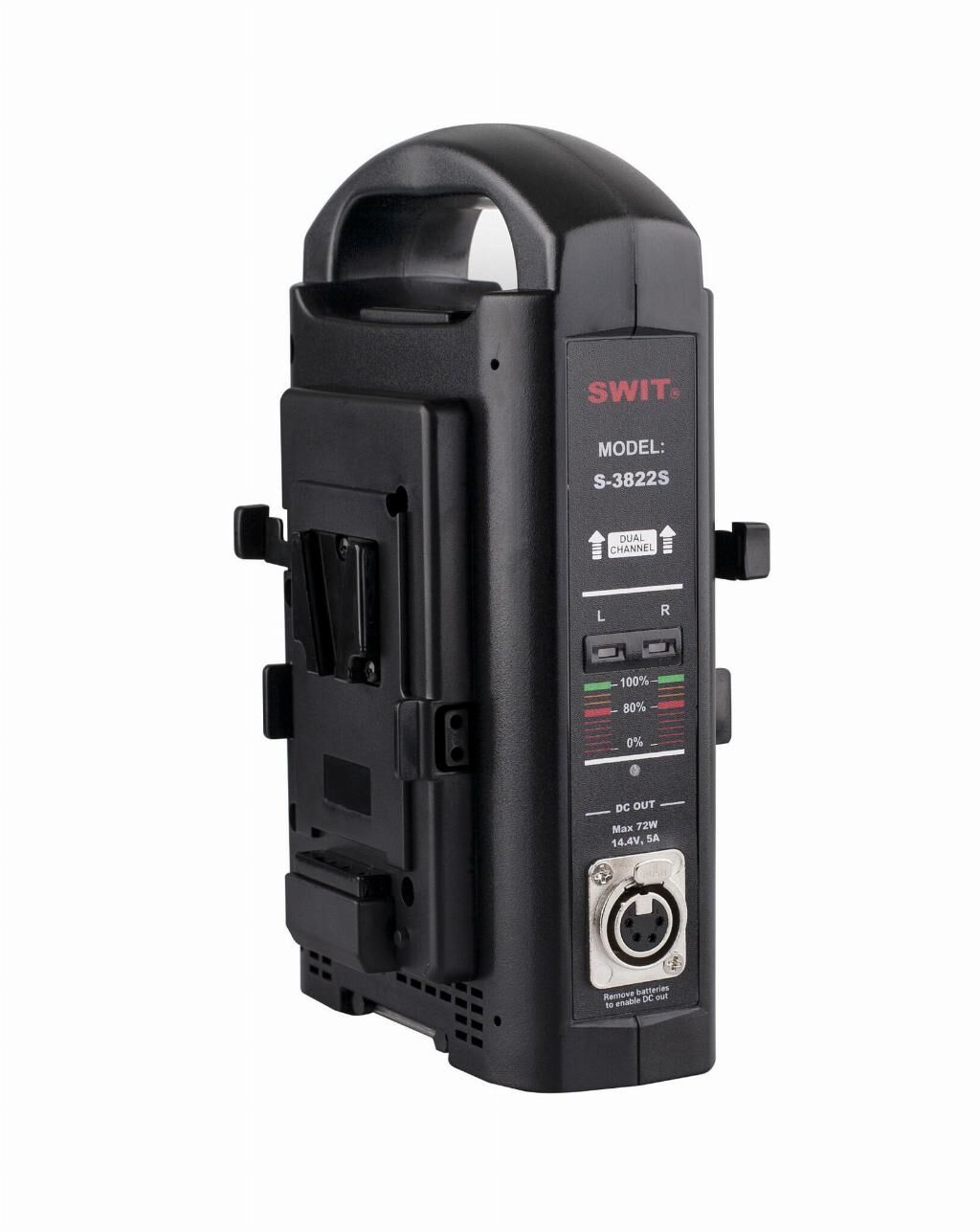

The Swit S-3822S is a lightweight, portable charger that charges two V-mount batteries simultaneously with a DC 16.8 V, 3 A output per channel. LEDs on the front panel show the status of each channel: red while charging below 80%, yellow while charging above 80% and green when charging is complete. A 4-pin XLR female connector on the front panel, used with the optional Swit S-7102 XLR female to male cable, turns it into an AC-DC adapter with a DC 15 V, 6 A, 90 W output; this output does not work while a battery is charging.

Key features

• Charges V-mount batteries
• 2-channel simultaneous charging
• 3 A charging current per channel
• LED charging indicators (red, yellow, green)
• AC to 4-pin XLR DC output, 15 V 6 A 90 W
• Lightweight and portable

Notes

• The XLR DC output does not work while batteries are charging
• The S-7102 4-pin XLR cable is sold separately

Specifications

• Mount: V-mount x 2
• Input: AC 100-240 V, 50/60 Hz
• Charging output: DC 16.8 V, 3 A x 2
• DC output: 15 V, 6 A, 90 W
• Dimensions: 228 x 140 x 120 mm
• Colour: black
