Swit S-8113S – 160 Wh V-Mount battery with D-Tap, fast charging

Swit S-8113S 160Wh High-Load V-Mount Battery

The Swit S-8113S uses high-load Li-ion cells for cine cameras and setups that draw more than a normal battery can supply: standard Li-ion batteries offer 100 W / 8 A, while cameras such as the ARRI ALEXA draw around 85 W on their own, and with monitors and lights the total goes above 100 W. The S-8113S provides up to 150 W / 12 A of continuous output without reducing battery life during long high-power use.

Its 16 18650 cells give a nominal 14.4 V and 160 Wh / 11.1 Ah, about 5 hours with a normal 30 W ENG camera. It supports 6 A fast charging, which saves more than 50% of charging time: 0-80% in 1.5 hours and full charge within 2.5 hours (for example with the Swit S-3812S). A D-Tap output on top supplies on-camera lights, monitors and wireless transmitters up to 120 W / 10 A, and a 4-level LED indicator shows the remaining capacity.

Key features

• Li-ion, 14.4 V, 160 Wh capacity
• Max 150 W / 12 A continuous output

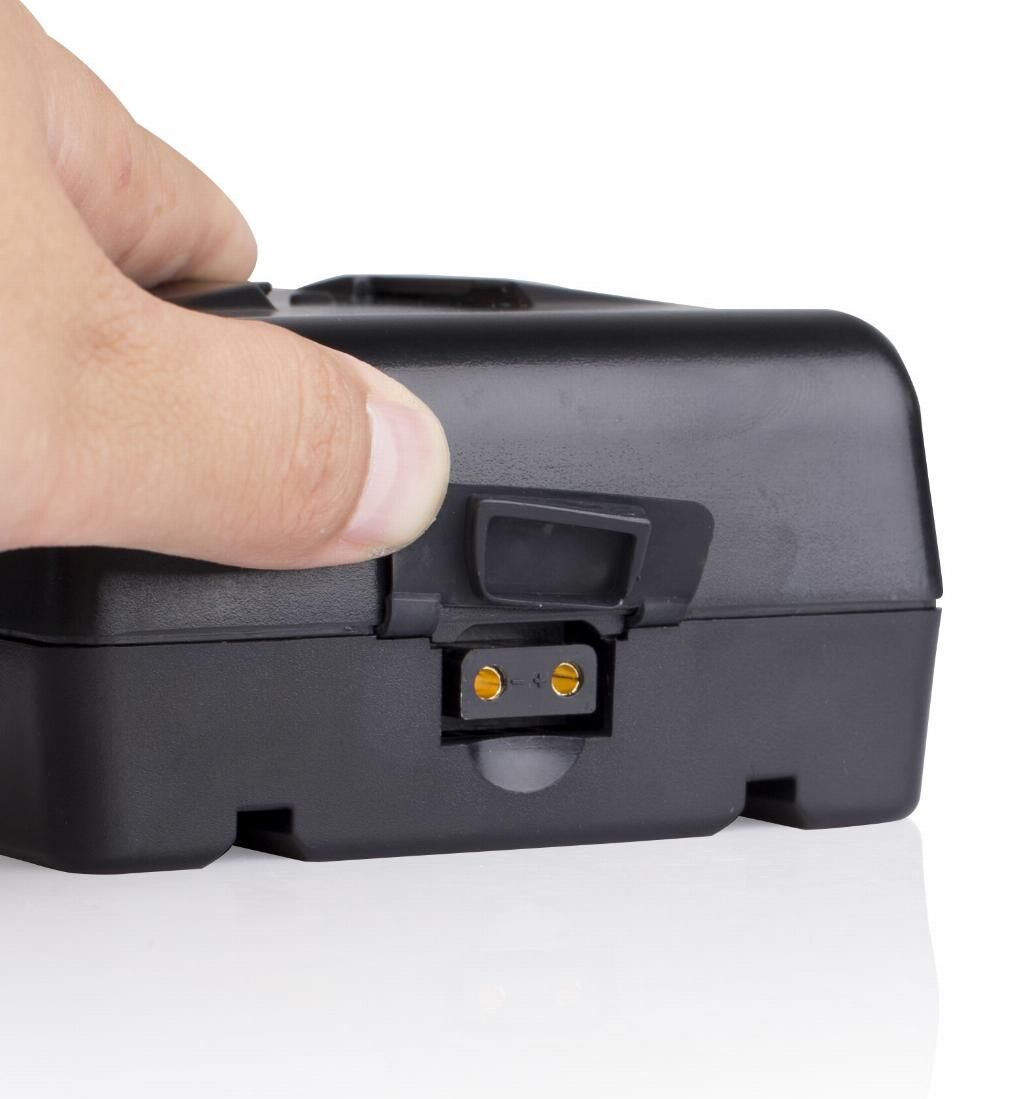

• D-Tap output socket (max 120 W / 10 A)
• 6 A fast charging: 0-80% in 1.5 h, full within 2.5 h

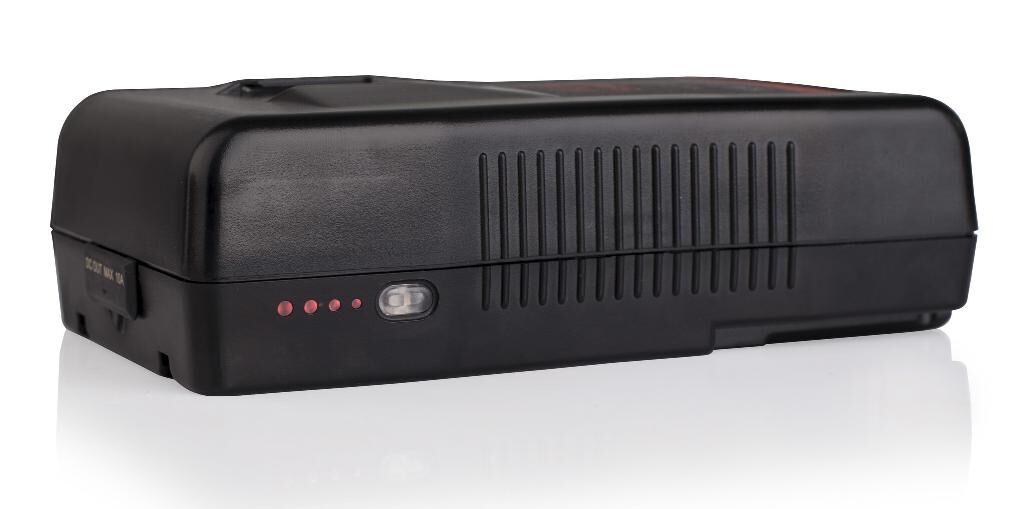

• 4-level LED power indicator

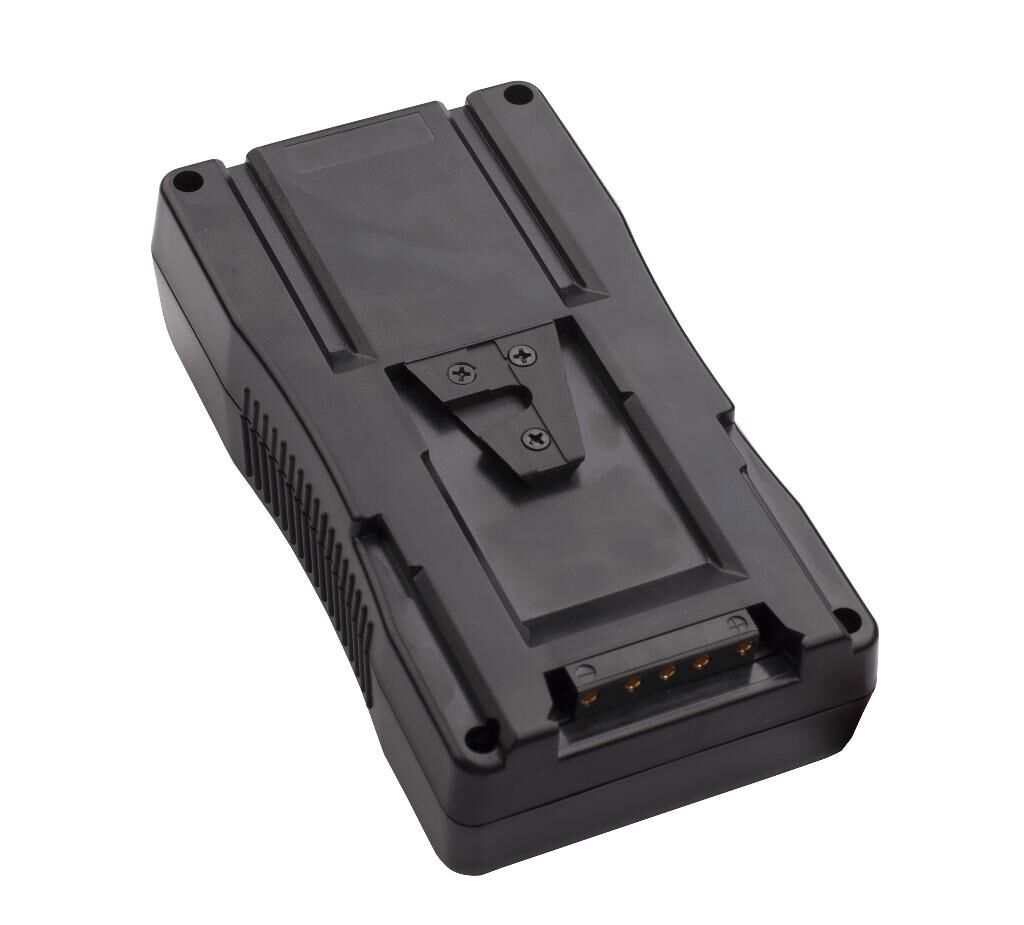

• V-mount connection
• Multiple circuit protections

Specifications

• Mount: V-mount
• Chemistry: Li-ion, 16 x 18650 cells
• Nominal voltage: 14.4 V
• Capacity: 160 Wh / 11.1 Ah
• Dimensions: 165 x 90 x 51 mm
