Blackmagic Design ATEM 2 M/E Advanced Panel 30

Blackmagic ATEM 2 M/E Advanced Panel 30

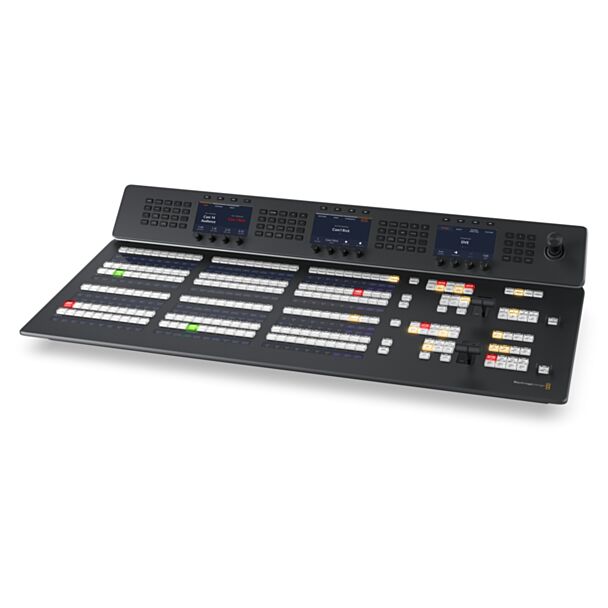

The ATEM 2 M/E Advanced Panel 30 is a broadcast style hardware control panel for ATEM switchers. It features 2 M/E rows with 30 input buttons and 3 independent system control LCDs for each row, and each row can control up to 4 M/Es in larger switchers. Both rows and all input buttons include LCDs for custom labeling, and each row has an independent select bus.

ATEM Advanced Panels use the familiar program/preview M/E layout, with high quality buttons with customizable illumination colour, a DVE joystick and a T-bar fader, and let you set up and trigger macros. The panel connects over Ethernet and has dual internal power supplies for redundancy.

Key features

• 2 M/E rows, each able to control up to 4 M/Es
• 30 direct and 60 shifted crosspoints per row
• Tri-colour LED crosspoint buttons with LCD labels
• 3 LCD menu displays
• 2 fader bars and 3-axis joystick
• Dedicated macro buttons (2 x 30) and numeric keypad
• Redundant power

Compatibility

• ATEM switchers (ATEM Software Control Panel)
• macOS 14 Sonoma, macOS 15 Sequoia or later; Windows 10 and 11

In the box

• ATEM 2 M/E Advanced Panel 30

Specifications

• Ethernet: 4 x 10/100/1000 BASE-T with loop output for additional panels or computers
• Software updates: 1 x USB-C
• On-air indicators: 12
• Transport control buttons: 8
• Menu control: 3 x 20 buttons
• Power supply: 2 x internal 100-240 V AC
• Power consumption: 120 W
• Operating temperature: 0 to 40 °C
