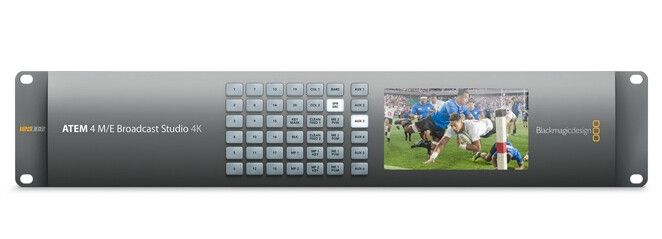

Blackmagic Design ATEM 4 M/E Broadcast Studio 4K BNC
GTIN: 9338716005356
20/13 BNC I/O, 6x AUX, LCD, 2160p59.94
Get one of the world’s most compact and advanced switchers with the new ATEM 4 M/E Broadcast Studio 4K. You get an incredibly high performance live production switcher designed to work with the latest formats and high frame rates, all the way up to Ultra HD 2160p59.94! You get 16 next generation ATEM Advanced Chroma Keyers with 4 per M/E, perfect for advanced work and virtual sets. As the most advanced ATEM switcher, this model also includes the latest technology and features such as 2 Ultra HD multi viewers, full 2D DVE, built in SuperSource compositing engine with 4 picture in picture DVE's, full re-synchronization on each 12G-SDI input and much more! The multi rate 12G-SDI connections automatically switch between all HD and Ultra HD formats up to 2160p59.94 with a single BNC cable! Even if you're not working in Ultra HD now, the ATEM 4 M/E Broadcast Studio 4K has all the power and features for the highest end live production work, while being Ultra HD ready the instant you need it!
| Product Condition | New |
|---|---|
| Manufacturer | Blackmagic Design |
| manufacturer code | SWATEMRRW4ME4K |
| Ean | 9338716005356 |
| Modified on | 26-03-2018 |
| Warranty | 12 Month Limited Manufacturer's Warranty |
| Product title | Blackmagic Design ATEM 4 M/E Broadcast Studio 4K BNC |
| Long Product Name | 20/13 BNC I/O, 6x AUX, LCD, 2160p59.94 |
| Product specifications | Ports & interfacesVideo port type* BNC USB port type Mini USB Type-B Audio (L/R) in 1 BNC input ports 20 BNC output ports 13 RJ-45 input ports 1 FeaturesProduct colour Grey Supported video modes 720p, 1080p, 2160p Rack capacity 2U Display type LCD PowerAC input voltage 110 - 240 V PowerPower consumption (typical) 300 W Weight & dimensionsWidth 482.6 mm Depth 234.9 mm Height 89.9 mm Weight 4.8 kg Packaging contentQuantity per pack 1 pc(s) Operational conditionsOperating temperature (T-T) 0 - 40 °C Storage temperature (T-T) -20 - 60 °C Operating relative humidity (H-H) 0 - 90% |
| Essential qualities |
|
| Video port type | BNC |
