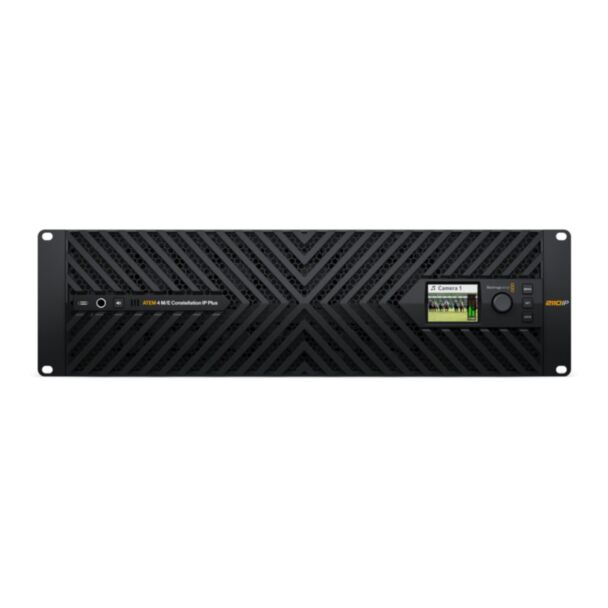

Blackmagic Design ATEM 4 M/E Constellation IP Plus

ATEM 4 M/E Constellation IP Plus

ATEM 4 M/E Constellation IP Plus is a much larger and more powerful live production switcher with lots of video inputs and outputs. It is fully SMPTE 2110 native with high speed 100G Ethernet connections, and all IP video connections are fully redundant and SMPTE 2022-7 compliant. You get 64 inputs and 64 outputs, 16 ATEM Advanced Keyers, 4 multi-views and 2 SuperSource processors for a total of 12 DVEs. Perfect for large live productions.

Key features

• 64 video inputs, 64 video outputs and 64 aux outputs, with frame rate and format converters on all 64 inputs
• 16 x 100G QSFP28 connections with ST 2022-7 redundant delivery over two 2110 networks; 8 x Ultra HD senders and receivers per 100G pair
• 16 upstream keyers, 16 advanced chroma keyers, 4 downstream keyers, 20 linear/luma keyers and 28 layers
• 2 SuperSource processors, 4 DVEs and transition keyers with 4 stinger and 4 DVE
• 4 multi-view outputs, 4 x 16 multi-view pattern options for up to 64 views and 64 routable windows
• 4 media players with fill and key, 64 still image capacity
• 132 channel audio mixer with 6 band parametric EQ and dynamics, fully integrated with Fairlight Live
• Talkback and mix minus support; internal timecode generator
• Built-in HD LCD front panel monitor, headphone jack and speaker

Connections

• 2 x 10G RJ45 Ethernet for control panel connection, NMOS control, media loading and presets
• 2 x RJ45 reference network for the 2110 PTP clock and 1 x RJ45 1G management Ethernet
• Rear USB-C 3.0 for USB audio, webcam output (720p or 1080p at program frame rate), ATEM Setup utility and updates; front USB-C 2.0 for updates and setup
• 2 x IEC C14 power inputs

Standards and compliance

• HD 720p50 to 1080p60 and Ultra HD 2160p23.98 to 2160p60, 4:2:2, 10-bit
• SMPTE 2110-20, 2110-21, 2110-30 and 2110-40; SMPTE 2022-7; PTP IEEE 1588-2008 (ST 2059-1, 2059-2)
• NMOS IS-04 and IS-05; optional Blackmagic IP10 codec for 2160p59.94 and 2160p60 as 2110 IP video

Software and installation

• ATEM Software Control panel included free for Mac and Windows, with ATEM Setup Utility
• macOS 15 Sequoia, macOS 26 Tahoe or later; Windows 10 and 11, Windows 11 for ARM
• 2 x 100 - 240V AC 50/60Hz internal power supplies, 390 W max; 3 rack units

In the box

ATEM 4 M/E Constellation IP Plus and welcome wallet with QR code for software download.
