Blackmagic Design ATEM Monitoring Rack Panel 20
GTIN: 9338716010497
In stock
SKU
BMD-SWPANELABRMP20
Special Price €1,009.04 €827.08 Regular Price €1,096.78
1RU rack mount ATEM control panel with 20 buttons and a built in SMPTE 2110 converter: two redundant 10G Ethernet connections, 2 x 12G-SDI outputs, HDMI and LCD screen.
Blackmagic Design ATEM Monitoring Rack Panel 20

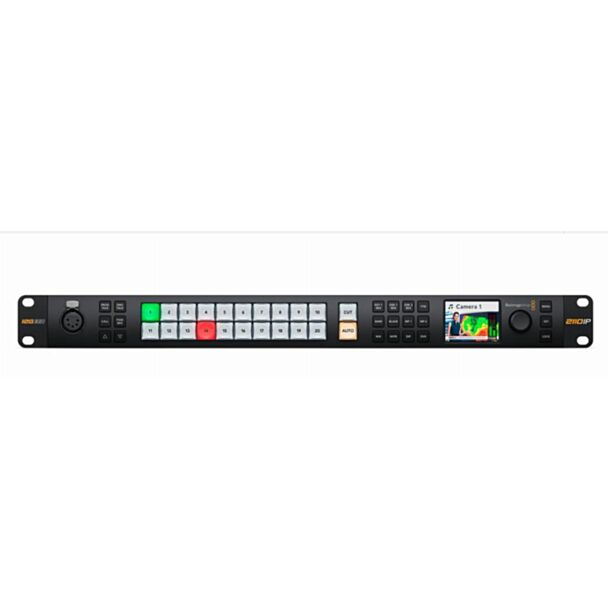

ATEM Monitoring Rack Panel 20 combines an ATEM switcher control panel and a video converter in one rack unit. The 20 buttons control a local ATEM switcher, and there is a talkback connection on the front panel.
The converter takes SMPTE 2110 video from two redundant 10G Ethernet connections and delivers it to 2 x 12G-SDI outputs and HDMI. Video is also shown on the built in LCD screen, which is useful when setting up or monitoring a job.
Technical specifications
Connections
| 10G 2110 IP Networks | 2 x 10G RJ45 connections. Supports ST 2022-7 redundant delivery of IP streams over two 2110 networks. |
|---|---|
| 1G Control Network | 1 x 1G RJ45 for connection to switcher and NMOS control. |
| Total Video Inputs | 1 |
| Total Video Outputs | 3 |
| SDI Video Outputs | 2 |
| SDI Rates | 1.5G, 3G, 6G, 12G. |
| HDMI 2.0 Video Inputs | 1 |
| SMPTE ST 2110 IP Audio Inputs | 16 Ch embedded audio on each 2110 IP video stream over 10G Ethernet. |
| SDI Audio Outputs | 16 Ch embedded audio on all SDI outputs. |
| HDMI Audio Outputs | 8 Ch embedded audio on HDMI output. |
| Talkback | 1 x 5-pin XLR Talkback. |
| Computer Interface | 1 x USB-C for setup utility and software updates. |
| Power | 2 x IEC C14 power inputs. |
Standards
| HD Video Standards | 720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 |
|---|---|
| Ultra HD Video Standards | 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60. |
| SMPTE Compliance | SMPTE 2110‑20, SMPTE 2110‑21, SMPTE 2110‑30, SMPTE 2110‑40, SMPTE 2022‑7 |
| Video Sampling | 4:2:2 |
| Color Precision | 10-bit. |
| SDI Color Space | Rec. 709, Rec. 2020 |
IP Video Compliance
| SMPTE 2110-20 (Uncompressed Video) | IGMP v3 |
|---|---|
| SMPTE 2110-21 (Traffic Shaping) | Sender: Narrow Receiver: Narrow, Wide Synchronous, Asynchronous |
| SMPTE 2110-30 (PCM) | Audio Conformance level: Level C |
| SMPTE 2110-40 (Ancillary Data) | Full access to entire SMPTE ancillary data stream. Includes RP 188/SMPTE 12M-2, closed captioning and HDR static metadata. |
| Codec | Blackmagic IP10 codec optional for 2160p59.94 and 2160p60 as 2110 IP video. |
| Precision Time Protocol | IEEE 1588-2008 (PTP v2) ST 2059-1 ST 2059-2 |
| NMOS IS-04 Discovery and Registration | v1.3.2 Peer-to-peer via mDNS/DNS-SD |
| NMOS IS-05 Connection Management | v1.1.2 |
| NMOS BCP-002-01 | Natural Grouping |
| NMOS BCP-004-01 | Receiver capabilities |
Product Specifics
| Talkback Support | Yes |
|---|---|
| Control | Front panel emergency switching, software or optional hardware panel. |
Display
| Front panel | Built in HD LCD monitor for video, 22 LED buttons for setup and emergency switching, 8 source buttons, 4 transition buttons, 6 talkback selection and mix buttons, menu control knob and set button, front panel lock button. |
|---|
Software
| Control Panel Included | ATEM Software Control Panel included free for macOS 14.0 Sonoma, macOS 15.0 Sequoia or later and Windows 10 and 11. |
|---|---|
| Software Updates | Using USB or Ethernet connection directly connected to Mac or Windows computers. Includes ATEM Setup Utility. |
| Configuration | Set via ATEM Software Control Panel, excluding ATEM chassis IP address which is set via the ATEM Setup Utility connected via USB‑C to chassis. |
Power Requirements
| Power Supply | 2 x 100 ‑ 240V AC 50/60Hz internal power supplies. |
|---|---|
| Power Supply | 2 x IEC C14 sockets. |
| Power Usage | To be confirmed by the manufacturer |
Physical Installation
| Physical Installation | 1 rack unit. |
|---|
Environmental Specifications
| Operating Temperature | 0° to 40° C (32° to 104° F) |
|---|---|
| Storage Temperature | -20° to 60° C (-4° to 140° F) |
| Relative Humidity | 0% to 90% non-condensing |
| Product Condition | New |
|---|---|
| Manufacturer | Blackmagic Design |
| manufacturer code | SWPANELABRMP20 |
| Ean | 9338716010497 |
| Taric Code | 8543709099 |
