Blackmagic Design Battery Converter HDMI to SDI
GTIN: 9338716001655
Discontinued product
This product is no longer manufactured and is not available for purchase. The page stays online as a reference for specifications and compatibility.
See the current products in: Micro Converter
Out of stock
SKU
BMD-CONVBATT/HS
Special Price €279.48 €229.08 Regular Price €303.78
Battery powered converter from HDMI to SD/HD-SDI with two SDI outputs, built in rechargeable lithium-ion polymer battery and over 2 hours of battery life.

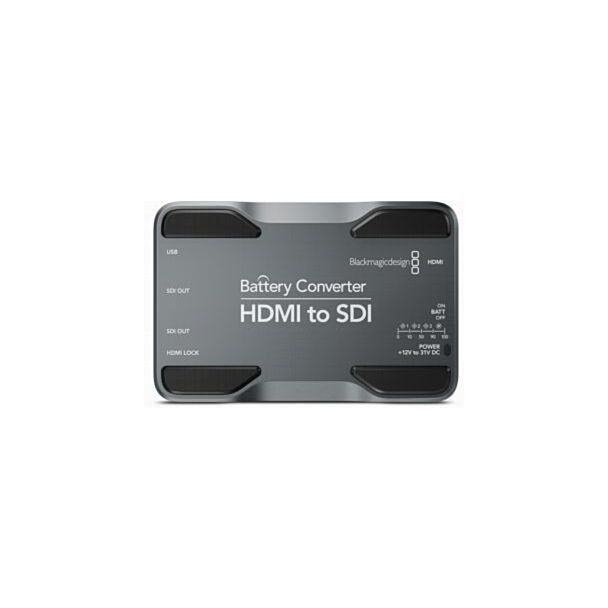

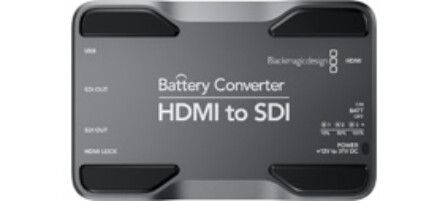

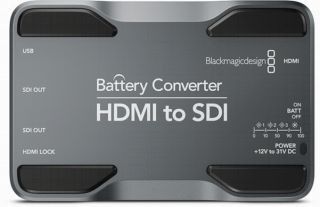

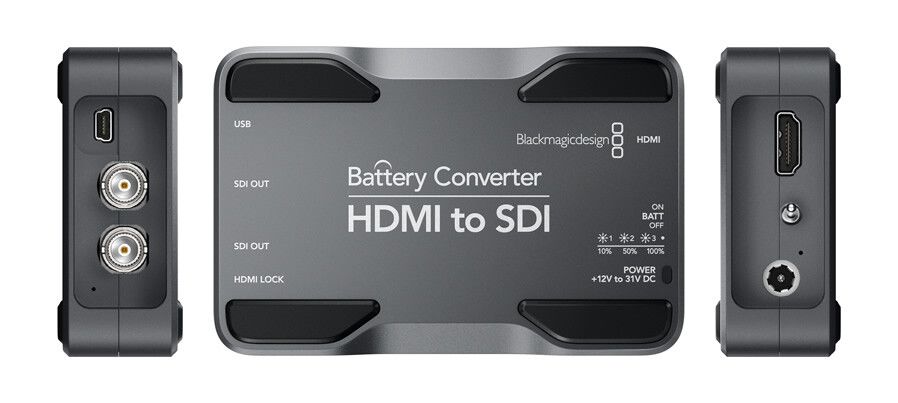

Blackmagic Battery Converter HDMI to SDI
Battery Converter HDMI to SDI converts an HDMI input to SDI output, for example to bring HDMI camera outputs to SDI for longer cable runs and professional connections on location. It switches automatically between SD and HD, has two SDI outputs and includes a built in rechargeable lithium-ion polymer battery plus an external power supply.
Key features
- HDMI input, 2 x SD/HD-SDI outputs
- Automatic SD/HD detection
- HDMI 4:2:2 in all formats, 4:4:4 up to 1080p29.97
- Built in rechargeable battery, over 2 hours of operation
- Battery charge indicator and on/off switch
- LED for input video lock
- Software updates via USB 2.0
In the box
- Battery Converter HDMI to SDI
- Software CD
- 12V AC adapter with international socket adapters
Specifications
- Video formats: 525/29.97 NTSC, 625/25 PAL, 720p50 to 720p60, 1080i50 to 1080i60, 1080p23.98 to 1080p60
- SDI compliance: SMPTE 259M, 292M, 296M
- Power: built in battery, 12-31 V DC input
- Power consumption: typically 2.3 W
- Dimensions: 113.18 x 29.95 x 74.6 mm (W x H x D)
- Weight: 340 g
| Product Condition | New |
|---|---|
| Manufacturer | Blackmagic Design |
| manufacturer code | CONVBATT/HS |
| Ean | 9338716001655 |
| Essential qualities |
|
| Maximum video resolution | 1920 x 1080 pixels |
| Host interface | HDMI |
| Output interface | SDI |
