Blackmagic Design Blackmagic 2110 IP SDI to HDMI 12G
GTIN: 9338716010015
In stock
SKU
BMD-CONVNVIPM/12G/HDMI02
Special Price €510.33 €418.30 Regular Price €542.90
Blackmagic 2110 IP SDI to HDMI 12G
Professional 12G-SDI or SMPTE-2110 IP to HDMI converter with rackmount design. Features an LCD display for video preview and menu navigation, 2-channel XLR audio outputs with adjustable gain and delay, built-in speaker, headphone jack, and support for 3D LUTs.
Professional 12G-SDI or SMPTE-2110 IP to HDMI converter with rackmount design. Features an LCD display for video preview and menu navigation, 2-channel XLR audio outputs with adjustable gain and delay, built-in speaker, headphone jack, and support for 3D LUTs.
Blackmagic 2110 IP SDI to HDMI 12G
Blackmagic 2110 IP SDI to HDMI 12G is a professional converter designed to transform 12G-SDI or SMPTE-2110 IP signals into HDMI output, housed in a compact rackmount enclosure. It supports conversion across all SD, HD, and Ultra HD video standards with outstanding signal integrity and includes 3D LUT support for precise HDMI monitor calibration. On the front panel, a built-in LCD displays live video, audio levels, and configuration menus. The unit also features two balanced XLR audio outputs with adjustable gain and delay, an integrated speaker, and a headphone jack for real-time audio monitoring.
Blackmagic 2110 IP SDI to HDMI 12G is a professional converter designed to transform 12G-SDI or SMPTE-2110 IP signals into HDMI output, housed in a compact rackmount enclosure. It supports conversion across all SD, HD, and Ultra HD video standards with outstanding signal integrity and includes 3D LUT support for precise HDMI monitor calibration. On the front panel, a built-in LCD displays live video, audio levels, and configuration menus. The unit also features two balanced XLR audio outputs with adjustable gain and delay, an integrated speaker, and a headphone jack for real-time audio monitoring.

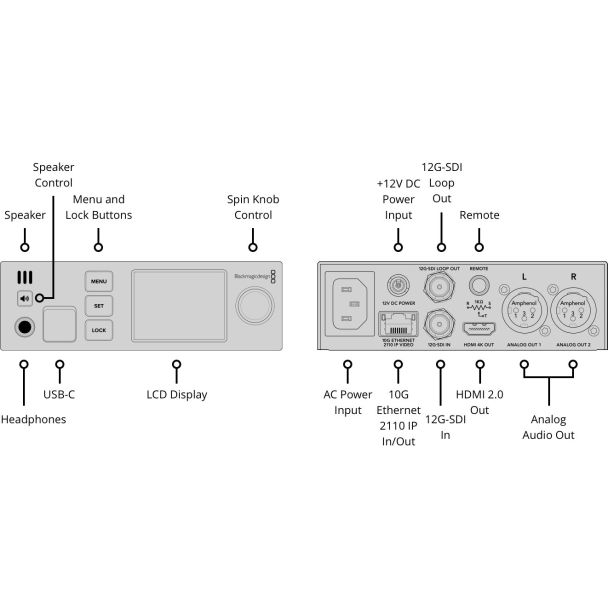

Connections
| SDI Inputs | 1 |
| SDI Loop Outputs | 1 |
| SDI Rates | SD, 1.5G, 3G, 6G, and 12G |
| HDMI 2.0 Outputs | 1 |
| SMPTE 2110 Input / Output | 1 x 10G Ethernet port |
| ST 2110 IP Audio I/O | 16 channels embedded input and output audio on ST-2110 IP video via 10G Ethernet |
| SDI Audio Inputs | 16 embedded audio channels |
| SDI Audio Outputs | 16 embedded audio channels |
| HDMI Audio Inputs | 8 embedded audio channels |
| HDMI Audio Outputs | 8 embedded audio channels |
| Analog Audio Outputs | 2 x balanced XLR 3-pin, 1 x 6.35 mm headphone jack |
| Webcam Output | 1 x USB-C up to 1080p60 |
| Ethernet | BASE-T 10/100/1000/10G for SMPTE 2110 IP video, config, and software updates |
| Computer Interface | USB-C for webcam out, updates, and configuration |
Video Standards
| SD Video Standards | 525i59.94 NTSC, 625i50 PAL |
| HD Video Standards | 720p50/59.94/60, 1080i50/59.94/60, 1080p23.98–60, PsF23.98–30 |
| 2K Video Standards | 2Kp23.98–60 DCI, 2KPsF23.98–30 DCI |
| Ultra HD Standards | 2160p23.98–60 |
| 4K DCI Standards | 4Kp23.98–60 DCI |
| SMPTE Compliance | SMPTE 259M, 274M, 292M, 296M, 372M, 424M, 425M A/B, 2036‑1, 2048‑1, 2081‑10/11/12, 2082‑10/11/12, ST2108‑1 |
| SDI Metadata Support | RP 188/SMPTE 12M-2, closed captions |
| Audio Sampling | 48kHz, 24-bit |
| Color Precision | RGB 4:4:4 at 8/10-bit up to 1080p30, YUV 4:2:2 at 8/10-bit |
| Color Space | Rec. 601, Rec. 709, Rec. 2020 |
| HDMI HD Standards | 720p50/59.94/60, 1080i50/59.94/60, 1080p23.98–60 |
| HDMI Ultra HD Standards | 2160p23.98–62 |
| HDMI 4K Standards | 4Kp23.98–60 DCI |
| HDMI Color Precision | 4:2:2 |
| HDMI Color Space | YUV |
Audio
| Local Audio Monitoring | Front panel speaker with control button and 6.35 mm headphone jack |
IP Video Conformance
| SMPTE 2110-20 | Uncompressed video, IGMP v2 |
| SMPTE 2110-21 | Transmitter: Narrow / Receiver: Narrow, Wide Synchronous, Asynchronous |
| SMPTE 2110-30 | PCM, Audio Conformance Level C |
| SMPTE 2110-40 | Full access to ancillary data stream including RP 188, captions, and static HDR metadata |
| Codec | Uses Blackmagic IP10 codec for 2160p59.94 and 2160p60 conversion to 10G 2110 IP video |
PTP Protocol
| PTP | IEEE 1588-2008 (PTP v2), ST 2059-1, ST 2059-2 |
NMOS
| IS-04 | v1.3.2, peer-to-peer via mDNS/DNS-SD |
| IS-05 | v1.1.2 |
| BCP-002-01 | Natural grouping |
| BCP-004-01 | Receiver capabilities |
Control
| Built-in Control Panel | 4 buttons, spin knob, and 2.2-inch color display |
| External Control | 10Gb/s RJ-45 Ethernet and USB-C. REST API via HTTP |
Display
| Display | Built-in 2.2-inch LCD for video, audio, status, and menu navigation |
Operating Systems
| macOS | macOS 13.0 Ventura, macOS 14.0 Sonoma or later |
| Windows | Windows 10 and 11 |
Power Requirements
| Power Supply | 1 x internal 100–240V AC 50/60Hz |
| Power Inputs | 1 x IEC C14 AC socket, 1 x 12V DC 5.5mm locking barrel for external sources or batteries |
| Power Consumption | TBC |
Installation
| Rack Format | 1/3 RU width, 1 RU height |
Environmental Specifications
| Operating Temperature | 0° to 40° C |
| Storage Temperature | -20° to 45° C |
| Relative Humidity | 0% to 90% non-condensing |
Included Items
| Package Contents | Blackmagic 2110 IP SDI to HDMI 12G, welcome wallet with QR code for software download |
Warranty
| Manufacturer Warranty | Limited 1-year warranty |
| Product Condition | New |
|---|---|
| Manufacturer | Blackmagic Design |
| manufacturer code | CONVNVIPM/12G/HDMI02 |
| Ean | 9338716010015 |
