Blackmagic Design Blackmagic Camera ProDock
GTIN: 9338716010107
A professional dock accessory for iPhone that adds HDMI, audio, genlock, timecode, expandable USB‑C ports, and 12‑15V power input to turn the iPhone 17 Pro / Pro Max into rig‑ready gear for video production.

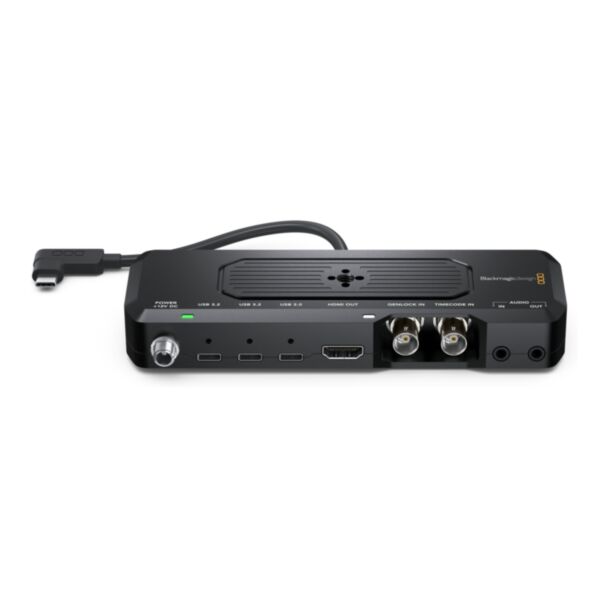

The Blackmagic Camera ProDock is a powerful accessory designed to transform the iPhone 17 Pro and 17 Pro Max into a professional video camera. It features three USB‑C ports for external SSDs or accessories, a full-size HDMI port for external monitoring, BNC inputs for genlock and timecode, a 3.5 mm microphone input and 3.5 mm headphone output, and a locking 12–15V DC power input that can power the dock, the iPhone, and connected accessories. The dock includes 1/4‑20 mounting threads on the top and bottom, making it easy to integrate into professional rigs. It is designed to be used with the Blackmagic Camera app and supports 10‑bit ProRes recording directly to external SSDs.
Technical specifications
| Compatibility | iPhone 17 Pro, iPhone 17 Pro Max (genlock supported); earlier iPhone Pro models (genlock not supported) |
| USB‑C Ports | 3x USB‑C for external SSDs and accessories |
| HDMI Output | 1x full-size HDMI for monitoring |
| BNC Inputs | 1x genlock, 1x timecode (only with iPhone 17 Pro / Max) |
| Audio | 3.5 mm microphone input, 3.5 mm headphone output |
| Power | 12–15V DC locking input, powers dock, iPhone and accessories |
| Mounting | 1/4‑20 mounting threads on top and bottom |
| Dimensions | 16.3 x 6.6 x 2.54 cm (without cable) |
| Weight | 270 g |
| What's in the box | Camera ProDock, 1/4" adapter, 12V 60W power supply, 7 international plug adapters, 30 cm cable |
| Product Condition | New |
|---|---|
| Manufacturer | Blackmagic Design |
| manufacturer code | CINTDOCKPRO |
| Ean | 9338716010107 |
| Taric Code | 8543709099 |
