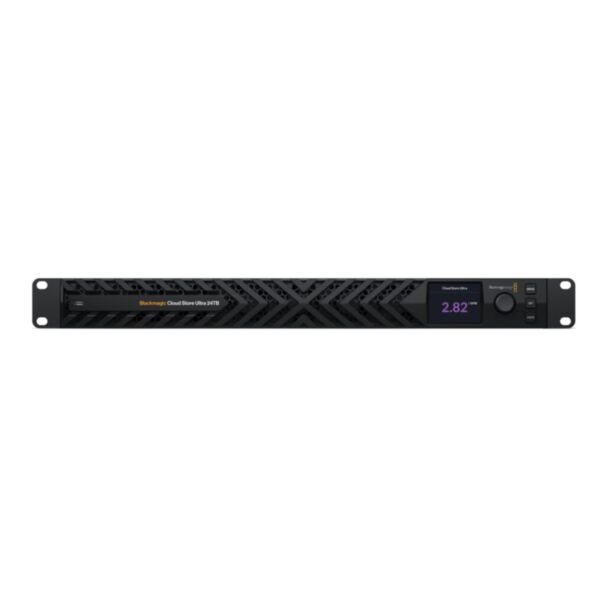

Blackmagic Design Blackmagic Cloud Store Ultra 24TB

Blackmagic Cloud Store Ultra 24TB

Blackmagic Cloud Store Ultra 24TB is an extremely high performance network storage solution in a compact 1RU design with server-style front-to-rear cooling. It features a 24TB capacity 12-card RAID 0 flash memory core, 2 x 100G Ethernet ports, RAID 5 support for data protection, two redundant power supplies, USB-C and Blackmagic Cloud Sync for distributing files globally. It stays fast even with many users accessing files at the same time.

Key features

• 24TB M.2 NVMe SSD storage, 12-card RAID 0 flash memory core
• 2 x 100G QSFP28 Ethernet ports; each can have an independent IP address and subnet for up to 200G bandwidth and load balancing with a managed switch
• RAID 5 support for data protection
• NFS and SMB file sharing, up to 200 computer connections
• Blackmagic Cloud Sync, including Amazon Web Services S3 sync
• Two redundant internal power supplies
• SDI (2) and HDMI (1) monitor outputs showing device name, capacity and use, Cloud Sync status, user activity, hardware status, storage map and network data rate graph
• Built-in 2.2 inch LCD and control panel with 3 buttons and spin knob

Connections

• 2 x 100G QSFP28 Ethernet
• 1 x RJ45 1G management Ethernet (10/100/1000 BASE-T)
• 1 x USB-C for setup utility and software updates
• 2 x SDI monitor outputs (1080p50, 1080p59.94, 1080p60) and 1 x HDMI monitor output
• 2 x IEC C14 power inputs

Software and installation

• Blackmagic Cloud Setup Utility and Blackmagic Proxy Generator Lite included
• macOS 15 Sequoia, macOS 26 Tahoe or later; Windows 11
• 2 x 100 - 240V AC 50/60Hz internal power supplies; 1 rack unit

In the box

Blackmagic Cloud Store Ultra 24TB and welcome wallet with QR code for software download.
