Blackmagic Design Production Camera 4K PL

Blackmagic Production Camera 4K PL

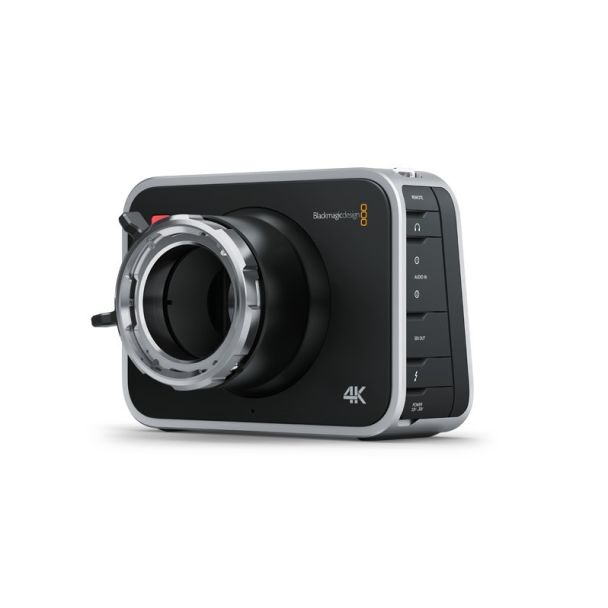

Blackmagic Production Camera 4K PL is a compact 4K digital film camera with a Super 35 size sensor with global shutter and a professional PL mount for manually operated cinema lenses. It offers 12 stops of dynamic range and a built in recorder for CinemaDNG RAW at 4000 x 2160 and Apple ProRes at 3840 x 2160 and 1920 x 1080 onto removable 2.5" SSDs.

The 5" capacitive touchscreen is used for monitoring, settings and metadata entry, inside a strong machined aluminium chassis. Connections include a 6G-SDI output, two balanced 1/4" jack audio inputs switchable between mic and line level, a headphone output, LANC remote control and a Thunderbolt port.

Key features

• Super 35 sensor (22 x 11.88 mm) with global shutter
• 12 stops of dynamic range
• PL mount for manual lenses with manual iris control
• CinemaDNG RAW 4K and ProRes 422 HQ/422/LT/Proxy in Ultra HD and HD
• Film or video dynamic range for ProRes
• 5" touchscreen with metadata entry
• Integrated rechargeable battery, approx. 90 minutes

In the box

• Blackmagic Production Camera 4K PL
• Sun shield
• Camera strap
• Turret dust cap
• 12V AC adapter
• SD card with software and manual
• DaVinci Resolve Studio USB dongle

Specifications

• RAW resolution: 12-bit, 4000 x 2160
• Frame rates: 23.98, 24, 25, 29.97, 30 in 4K RAW, Ultra HD and HD
• Storage: removable 2.5" SSD
• Video output: 1 x 6G-SDI 10-bit 4:2:2
• Audio: 2 x 1/4" balanced inputs (mic/line), 3.5 mm headphone output, integrated mono microphone
• Remote: 2.5 mm LANC (record start/stop)
• Computer interface: Thunderbolt; USB 2.0 Mini-B for updates
• Mounting: 3 x 1/4"-20 on top, 1 x 1/4"-20 tripod mount with locator pin
