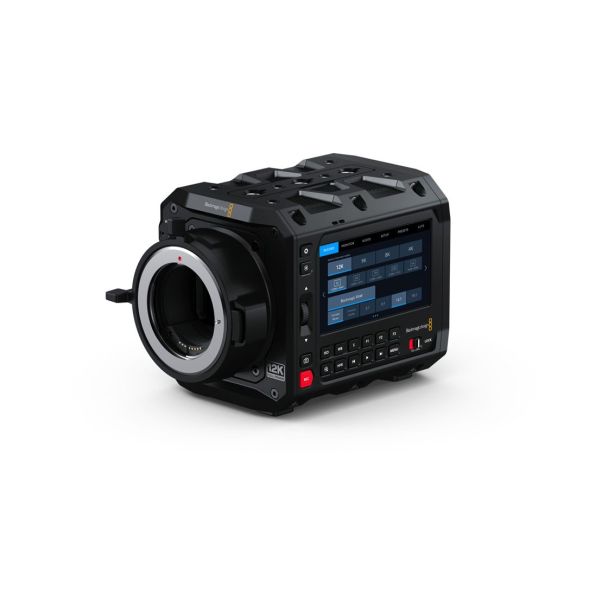

Blackmagic design Blackmagic PYXIS 12K EF
GTIN: 9338716009934
Professional digital cinema camera with a full-frame RGBW sensor (36 x 24mm), up to 12K resolution (12288 x 8040), 16 stops of dynamic range, and EF mount with locking mechanism. Records in Blackmagic RAW with automatic H.264 proxy file generation.
Blackmagic PYXIS 12K is a professional digital cinema camera with a compact and modular design, tailored for all types of productions. The precision CNC-machined aircraft-grade aluminum body is both lightweight and extremely durable. Thanks to multiple 1/4" and 3/8" threaded mounting points and interchangeable side plates, it can be easily customized with accessories such as handles, microphones, SSDs, phones for mobile streaming, brackets, and more. Its compact form factor makes it ideal for mounting on rigs, gimbals, cranes, or drones.
The camera comes in three lens mount versions — L, EF, and PL — making it compatible with a wide range of photographic and cinematic lenses, from Leica full frame to professional cinema glass from Zeiss, ARRI, and Cooke.
At its core is an advanced 12K full frame RGBW sensor (12288 x 8040, 36x24mm) with massive dynamic range and exceptional low-light performance. It allows for open gate 3:2 recording, full-height 6:5 anamorphic shooting without cropping, and Super 35 9K windowed recording, capturing up to 112 fps in 4K or 40 fps in 12K. Its multi-resolution sensor enables shooting in 12K, 8K, or 4K using the full sensor area.
An integrated 4-inch HDR touchscreen provides high-resolution on-set monitoring and playback, while the optional Blackmagic PYXIS Monitor offers a 5-inch 1500-nit HDR touch display with full camera control, multiple mounting points, and clear visibility even in direct sunlight. It’s ideal when the built-in LCD is obstructed by accessories and can double as a director’s monitor or on-set viewfinder.
For handheld or location shooting, PYXIS supports the optional Blackmagic URSA Cine EVF, a high-quality electronic viewfinder featuring a 1920x1080 OLED display, proximity sensor, and precision glass optics with adjustable focus.
Blackmagic PYXIS records in Blackmagic RAW at 12-bit, while also generating H.264 HD proxy files simultaneously. These proxies can be uploaded to Blackmagic Cloud even during recording and accessed immediately by post-production teams. Files can be sent directly to shared folders in DaVinci Resolve, enabling remote editing workflows in real time.
The camera includes dual CFexpress card slots for ultra-fast recording and supports external USB-C drives for extended storage. CFexpress cards are durable and hot-swappable, ensuring continuous and uninterrupted capture.
On the connectivity side, PYXIS includes a 12G-SDI output for clean or overlay monitoring, mini XLR input with 48V phantom power, 10G ethernet, USB-C, and a built-in streaming engine compatible with RTMP and SRT protocols. Live streaming is possible via direct ethernet connection or by tethering a 4G or 5G smartphone for mobile data.
Blackmagic PYXIS 12K EF is a professional-grade digital cinema camera engineered for ultimate rig flexibility and customization. At its core lies a full-frame RGBW sensor (12288 × 8040) with an integrated optical low-pass filter, delivering up to 16 stops of dynamic range. Dual hot-swappable CFexpress slots power robust, uninterrupted recording workflows. Housed in a precision-machined aerospace-grade aluminum body, it features multiple threaded mounting points and side accessory plates. The EF-mount variant comes with a fixed Canon EF mount, providing secure support for both photographic and cinema lenses. Combining true 12K capture performance with a modular design, the PYXIS 12K EF adapts seamlessly to setups from stabilized handheld rigs to dollies, always producing stunning, cinematic imagery.
Key Imaging Features and Sensor Specifications
| Effective Sensor Area | Dimensions of 35.64mm x 23.32mm, corresponding to "Large Format" size. |
| Pixel Pitch | Each pixel measures 2.9 microns, a key factor for the high resolution. |
| Lens Mount System | Active EF type lens mount, equipped with a robust locking system. |
| Electronic Lens Control | Management of iris and focus for compatible EF lenses with electronic control. |
| Dynamic Range Breadth | Capability to capture 16 stops of dynamic range, preserving details in the brightest highlights and darkest shadows. |
| Sensor's Native ISO Value | ISO 800, ideal for optimizing dynamic range and minimizing digital noise. |
| Range of Shooting Resolutions | Offers multiple resolution options, including: 12,288 x 8,040 (12K Open Gate 3:2) 12,288 x 6,912 (12K 16:9 format) 12,288 x 6,480 (12K 17:9 format) 12,288 x 5,112 (12K 2.4:1 format) 9,648 x 8,040 (12K Anamorphic 6:5) 9,408 x 6,264 (9K 3:2 format) 8,688 x 4,896 (9K 16:9 format) 9,312 x 4,896 (9K 17:9 format) 9,312 x 3,864 (9K 2.4:1 format) 7,680 x 6,408 (9K Anamorphic 6:5) 8,192 x 5,360 (8K Open Gate 3:2) 8,192 x 4,608 (8K 16:9 format) 8,192 x 4,320 (8K 17:9 format) 8,192 x 3,408 (8K 2.4:1 format) 6,432 x 5,360 (8K Anamorphic 6:5) 4,096 x 2,680 (4K Open Gate 3:2) 4,096 x 2,304 (4K 16:9 format) 4,096 x 2,160 (4K DCI - 17:9 format) 4,096 x 1,704 (4K 2.4:1 format) 3,216 x 2,680 (4K Anamorphic 6:5) |
| Recording Speeds (Frame Rates) | Project frame rates selectable from 23.98, 24, 25, 29.97, 30, 50, 59.94, and 60 fps. The maximum sensor capture speed varies depending on the chosen resolution. |
| High Frame Rate Performance | Up to 40 fps in 12K (Open Gate 3:2) Up to 45 fps in 12K (16:9) Up to 50 fps in 12K (17:9) Up to 60 fps in 12K (2.4:1) Up to 40 fps in 12K (Anamorphic 6:5) Up to 50 fps in 9K (Super 35, 3:2) Up to 65 fps in 9K (Super 35, 16:9) Up to 65 fps in 9K (Super 35, 17:9) Up to 80 fps in 9K (Super 35, 2.4:1) Up to 50 fps in 9K (Super 35, Anamorphic 6:5) Up to 72 fps in 8K/4K (Open Gate 3:2) Up to 84 fps in 8K/4K (16:9) Up to 90 fps in 8K/4K (17:9) Up to 112 fps in 8K/4K (2.4:1) Up to 72 fps in 8K/4K (Anamorphic 6:5) |
| Focusing Modes | Automatic autofocus available when using compatible lenses that support this function. |
| Iris Adjustment | Manual control via dedicated dial and touchscreen slider for electronically managed lenses; an instant auto-adjustment button is available with suitable lenses. |
| Display Dimensions and Resolution | 4-inch screen with a resolution of 1920 x 1080 pixels. |
| Maximum Display Brightness | 1500 nits, ensuring good visibility even in high ambient light conditions. |
| Integrated Display Technology | LCD display with capacitive touchscreen technology for intuitive control. |
| Metadata Support and Management | Automatic data acquisition from compatible electronic lenses. Automatic saving of camera settings, motion sensor data, and digital slate information (including project, scene number, take, and notes). Custom 3D LUTs can be embedded in Blackmagic RAW file metadata. |
| User Interface and Physical Controls | Menu system accessible via 4-inch touchscreen. Dedicated physical buttons for other functions. Three user-programmable function buttons for quick access to preferred settings. |
| Timecode Generator | High-accuracy timecode counter, with less than a single frame drift per eight hours of continuous use. |
Connection Ports
| Video Input Ports | No video inputs available. |
| Video Output Ports | 1 x 12G-SDI port, capable of transmitting signals up to 2160p60. 1 x USB-C port for viewfinder, managing power, data, video signal, and equipped with a locking connector. |
| Analog Audio Input Ports | 1 x mini XLR connector for analog audio signals, switchable between microphone input with phantom power and line input (up to +14 dBu). 1 x 3.5mm auxiliary stereo input. |
| Analog Audio Output Ports | 1 x 3.5mm jack for stereo headphone output. |
| Synchronization Input Ports | Support for Tri-Sync / Black Burst reference signals and Timecode input. |
| Computer Data and Control Connection | USB-C port for direct recording to external drives, PTP camera control, and internal software updates. |
| Ethernet Network Interface | 1 x 10Gb/s RJ‑45 type connector, backward compatible with 10/100/1000/10G BASE-T speeds, for high-speed file transfer and remote control. |
Defined Video and Audio Standards
| High Definition (HD) Video Standards | Supports: 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60. |
| Ultra High Definition (Ultra HD) Video Standards | Supports: 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60. |
| SDI Standards Compliance | Complies with SMPTE 424M, SMPTE 425M (Level A and B), SMPTE 2081‑1, SMPTE 2081‑10, SMPTE 2082‑1, and SMPTE 2082‑10 standards. |
| SDI Audio Sampling Specifications | Audio sampling according to television standard: 48kHz frequency and 24-bit depth. |
Integrated Audio Features
| Internal Microphone | Equipped with an integrated stereo microphone for reference or ambient audio recording. |
| Internal Speaker | Includes a monophonic speaker for basic audio monitoring directly from the camera. |
Recording Media Management
| Recording Media Options | 2 x CFexpress Type B card slots. Additionally, 1 x USB-C port (with speeds up to 10 Gbps) allows recording of Blackmagic RAW files and their H.264 proxies to external storage media. It is advisable to check the manufacturer's list of compatible media. |
| File Systems for Media Formatting | Media can be formatted in ExFAT (for Windows/Mac compatibility) or HFS+ (specific to Mac environment) file systems. |
Supported Video Codecs
| List of Available Codecs | Blackmagic RAW with constant bitrate (CBR): options 3:1, 5:1, 8:1, 12:1, 18:1. Blackmagic RAW with constant quality (CQ): options Q0, Q1, Q3, Q5. Proxy files in H.264 format, 1920 x 1080 resolution, 8-bit with 4:2:0 color sampling. |
Camera Control Methods
| Remote and External Control | Full compatibility with Blackmagic Zoom Demand and Blackmagic Focus Demand devices for precise camera and lens control directly from tripod handles. Control possible via iPad, Bluetooth connection, or PTP protocol over USB. Remote management of fundamental camera settings, including focus, iris, and zoom (with compatible lenses). REST API available for integration and control via Ethernet network. |
Network Management Capabilities
| NTP Time Synchronization | The NTP (Network Time Protocol) ensures accurate synchronization of the camera's internal clock when connected to a network equipped with a reference NTP server. |
| Web Interface for Media Management | Through a web browser on a computer connected to the same Ethernet network, the Web Media Manager interface allows viewing, Browse, downloading, and deleting media files stored on media connected to the camera. |
| File Transfer via FTP | Support for the FTP protocol for downloading files from storage media connected directly to the camera. |
| File Sharing via SMB | Facilitates local network file sharing using the SMB (Server Message Block) protocol. |
Data Storage Information
| Storage Unit Configuration | Dual CFexpress Type B card slots. Single high-speed USB-C expansion port for connection and recording to external drives. |
| Estimated Write Speeds (based on 24 fps) | Storage speeds are indicative and calculated based on a project frame rate of 24 fps: Resolution 12,288 x 8,040 (12K) Blackmagic RAW 3:1 - approx. 1,194 MB/s Blackmagic RAW 8:1 - approx. 448 MB/s Blackmagic RAW 12:1 - approx. 299 MB/s Blackmagic RAW 18:1 - approx. 199 MB/s Blackmagic RAW Q0 - 398 to 1,433 MB/s (variable) Blackmagic RAW Q1 - 326 to 796 MB/s (variable) Blackmagic RAW Q3 - 179 to 448 MB/s (variable) Blackmagic RAW Q5 - 120 to 358 MB/s (variable) Resolution 9,408 x 6,264 (9K) Blackmagic RAW 3:1 - approx. 714 MB/s Blackmagic RAW 8:1 - approx. 268 MB/s Blackmagic RAW 12:1 - approx. 179 MB/s Blackmagic RAW 18:1 - approx. 119 MB/s Blackmagic RAW Q0 - 238 to 857 MB/s (variable) Blackmagic RAW Q1 - 195 to 476 MB/s (variable) Blackmagic RAW Q3 - 107 to 268 MB/s (variable) Blackmagic RAW Q5 - 72 to 214 MB/s (variable) Resolution 8,192 x 5,360 (8K) Blackmagic RAW 3:1 - approx. 533 MB/s Blackmagic RAW 5:1 - approx. 320 MB/s Blackmagic RAW 8:1 - approx. 200 MB/s Blackmagic RAW 12:1 - approx. 133 MB/s Blackmagic RAW Q0 - 320 to 639 MB/s (variable) Blackmagic RAW Q1 - 228 to 533 MB/s (variable) Blackmagic RAW Q3 - 133 to 400 MB/s (variable) Blackmagic RAW Q5 - 100 to 266 MB/s (variable) Resolution 4,096 x 2,680 (4K) Blackmagic RAW 3:1 - approx. 135 MB/s Blackmagic RAW 4:1 - approx. 101 MB/s Blackmagic RAW 5:1 - approx. 81 MB/s Blackmagic RAW 6:1 - approx. 68 MB/s Blackmagic RAW Q0 - 202 to 336 MB/s (variable) Blackmagic RAW Q1 - 135 to 311 MB/s (variable) Blackmagic RAW Q3 - 101 to 238 MB/s (variable) Blackmagic RAW Q5 - 81 to 202 MB/s (variable) |
| Detailed Recording Formats | Recording in Blackmagic RAW (compression ratios 3:1, 8:1, 12:1, 18:1; or constant quality Q0, Q1, Q3, Q5) utilizing the full sensor resolution (in width or height) for the following dimensions: 12,288x8,040, 12,288x6,912, 12,288x6,480, 12,288x5,112, and 9,648x8,040. These modes support Film, Extended Video, or Video dynamic range, with the option to embed a custom 3D LUT in the metadata. Simultaneous recording of proxy files in H.264 format at 1920x1080 is included. Recording in Blackmagic RAW (ratios 3:1, 8:1, 12:1, 18:1; quality Q0, Q1, Q3, Q5) using a sensor portion in Super 35 windowed mode for the following dimensions: 9,408x6,264, 8,688x4,896, 9,312x4,896, 9,312x3,864, and 7,680x6,408. Dynamic range options, embedded 3D LUT, and H.264 proxy recording are also available for these modes. Recording in Blackmagic RAW (ratios 3:1, 5:1, 8:1, 12:1; quality Q0, Q1, Q3, Q5) with downscaling from full sensor resolution to the following dimensions: 8,192x5,360, 8,192x4,608, 8,192x4,320, 8,192x3,408, and 6,432x5,360. Dynamic range, 3D LUT, and H.264 proxy options remain available. Recording in Blackmagic RAW (ratios 3:1, 4:1, 5:1, 6:1; quality Q0, Q1, Q3, Q5) with downscaling from full sensor resolution to the following dimensions: 4,096x2,680, 4,096x2,304, 4,096x2,160, 4,096x1,704, and 3,216x2,680. Dynamic range, 3D LUT, and H.264 proxy options are also available. Please Note: Storage speeds indicated for Constant Quality (Q) modes are to be considered indicative estimates. The actual data storage speed may vary depending on the complexity and detail of the recorded scene. |
Software Provision
| Software Supplied with the Product | Pre-installed Blackmagic OS Operating System Full license for DaVinci Resolve Studio (Mac and Windows versions), with activation code Blackmagic Camera Setup software utility Blackmagic RAW Player application Blackmagic RAW QuickLook Plugin for preview on macOS Blackmagic RAW SDK (Software Development Kit) Blackmagic RAW Speed Test utility for media performance evaluation |
Compatible Operating System Requirements
| Apple macOS Systems | Requires macOS 14.0 Sonoma, macOS 15.0 Sequoia or later versions. |
| Microsoft Windows Systems | Compatible with 64-bit versions of Windows 10 and Windows 11. |
Power Supply Specifications
| Supplied External Power Adapter | 1 x external 18V DC, 90W power supply unit. |
| External Power Input Connector | 1 x 2-pin Lemo type connector, featuring a locking mechanism for a secure connection. |
| Supported Battery Type | Compatible with industry-standard BP-U series batteries. |
| Power Supply Voltage Range | 12V to 18V DC. |
Compatible Optional Accessories
| Range of Separately Purchasable Accessories | Blackmagic URSA Cine Handle Blackmagic URSA Cine EVF (Electronic Viewfinder) Blackmagic PYXIS Rosette Plate Blackmagic PYXIS Dedicated Monitor Blackmagic PYXIS Monitor Full Kit Blackmagic PYXIS Monitor EVF Kit |
Environmental Conditions for Use
| Recommended Operating Temperature | Guaranteed operation from 0°C to 40°C (equivalent to 32°F - 104°F). |
| Storage Temperature | From -20°C to 45°C (equivalent to -4°F - 113°F). |
| Permissible Relative Humidity | From 0% to 90% in the absence of condensation. |
Items Included in the Product Package
| Blackmagic PYXIS 12K EF camera body Protective cap for the lens mount PYXIS Standard mounting Plate PYXIS SSD mounting Plate 90W power supply with locking safety connector and set of international mains adapters Welcome booklet and initial instructions Unique activation code for DaVinci Resolve Studio license |
Manufacturer's Warranty Terms
| Product Warranty Coverage | The product is covered by a one (1) year limited manufacturer's warranty. |
| Product Condition | New |
|---|---|
| Manufacturer | Blackmagic Design |
| manufacturer code | CINECAMCPYXN12LFEF |
| Ean | 9338716009934 |
