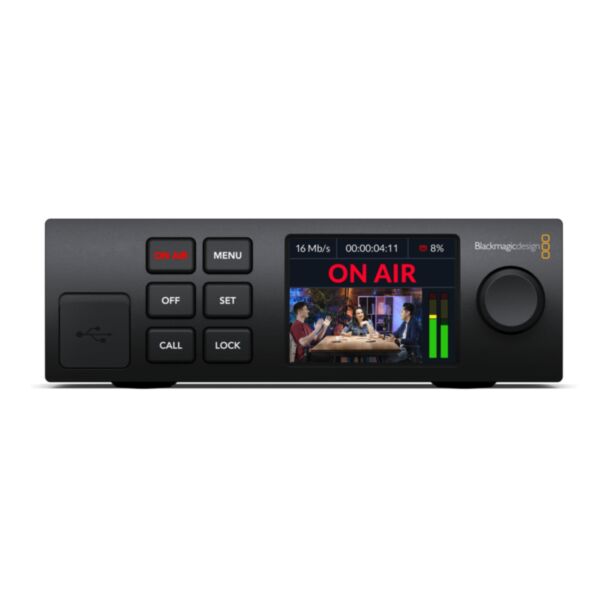

Blackmagic Design Blackmagic Streaming Encoder HD
GTIN: 9338716010039
Self-contained streaming processor for H.264 live streaming in 720p, 1080i and 1080p HD via SRT or RTMP. Includes a 12G-SDI input with standards conversion, SDI and HDMI monitoring outputs, a USB webcam output and Ethernet, or connect a 5G or 4G phone to use mobile data.
Commercial guarantee of durability offered by the producer at no extra cost: 3 years. See the GARAN label
Blackmagic Streaming Encoder HD
Blackmagic Streaming Encoder HD is a self-contained streaming processor that sends H.264 video in 720p, 1080i and 1080p HD to streaming services over SRT or RTMP. Stream directly to platforms such as YouTube, Facebook and X over Ethernet, or connect a 5G or 4G phone to stream using mobile data. The 12G-SDI input accepts Ultra HD sources and converts them for HD streaming, while the built-in 2.2 inch LCD, buttons and spin knob let you monitor and set up the encoder without a computer.
Key features
- H.264 streaming in 720p, 1080i and 1080p HD, up to 1080p60
- Direct streaming over Ethernet with RTMP (H.264) and SRT (H.264 and H.265)
- Connect a 5G or 4G phone to stream using mobile data
- 12G-SDI input with standards conversion and an SDI loop output
- SDI and HDMI monitoring outputs for checking the stream
- USB-C webcam output up to 1080p60 for video calls and streaming software
- Embeds CEA-608 and CEA-708 closed captions in RTMP streams; supports source timecode over RTMP and SRT
- Built-in control panel with 6 buttons, spin knob and 2.2 inch colour LCD
- Supports remote camera control, colour corrector, tally and talkback; REST API over Ethernet
Connections
- 1 x SDI video input (1.5G, 3G, 6G, 12G), 16 channels of embedded audio
- 1 x SDI loop output and 1 x SDI monitor output
- 1 x HDMI monitor output with 2 channels of embedded audio
- 1 x USB-C webcam output
- Ethernet 10/100/1000 BASE-T for live streaming, configuration and software updates
- 4-pin XLR +12V DC input for an external power supply or battery use
Video standards
- HD input: 720p50, 59.94, 60; 1080i50, 59.94, 60; 1080p23.98 to 1080p60
- Ultra HD input: 2160p23.98 to 2160p60, converted for HD streaming
- Streaming standards: 720p25 to 720p60, 1080i50 to 1080i60, 1080p23.98 to 1080p60
- SDI and HDMI monitor outputs: 1080p50, 1080p59.94, 1080p60
- Colour space Rec. 709 and Rec. 2020
Software and compatibility
Works with streaming services and software including YouTube, Facebook, Twitch, X, Vimeo, Restream.IO, Zoom, Microsoft Teams, OBS Studio, VLC, Wirecast Play and Wowza Streaming Engine.
- Mac: macOS 14 Sonoma, macOS 26 Tahoe or later
- Windows 10 (64-bit) and Windows 11, Linux and Chrome OS
Power and installation
- Internal 100 - 240V AC power supply, 21 W
- One third rack unit width, 1 rack unit height
In the box
Blackmagic Streaming Encoder HD and welcome wallet with QR code for software download.
| Product Condition | New |
|---|---|
| Manufacturer | Blackmagic Design |
| manufacturer code | BDLKWEB/C/SEDHD |
| Ean | 9338716010039 |
| Taric Code | 8543709099 |
