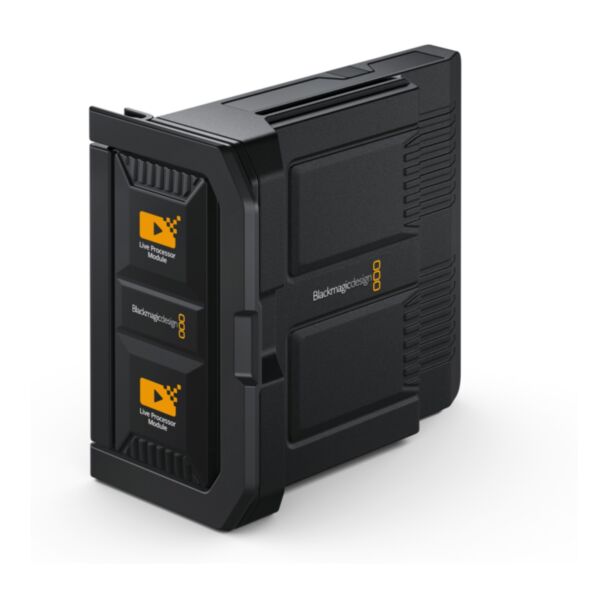

Blackmagic Design Blackmagic URSA Live Encoder

Blackmagic URSA Live Encoder

Blackmagic URSA Live Encoder is a live processing module that enables the Blackmagic URSA Cine Immersive 100G to be used for live immersive production. It manages the very large amount of data used by live immersive video by encoding it into ProRes, for output as SMPTE 2110 IP video via the high-speed 100G Ethernet port. The camera data rate stays under 50 Gb/s, so you can combine two cameras into a single 100G Ethernet connection.

Key features

• Live processing module for the Blackmagic URSA Cine Immersive 100G
• Encodes live video into Apple ProRes (ProRes HQ, ProRes or ProRes LT)
• Output as SMPTE 2110 IP video (SMPTE 2110-22 constant bit-rate compressed video) via the 100G Ethernet port
• Camera data rate under 50 Gb/s, so two cameras can share a single 100G Ethernet connection

Compatibility

Listed as an optional accessory of the Blackmagic URSA Cine Immersive 100G and Immersive 100G Body cameras.
