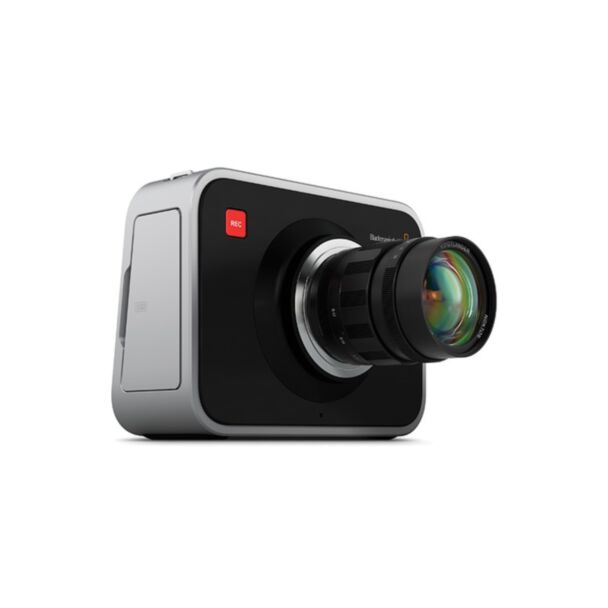

Blackmagic Design Cinema Camera MFT Handheld/Shoulder camcorder Full HD Black
GTIN: 9338716001884
Discontinued product
This product is no longer manufactured and is not available for purchase. The page stays online as a reference for specifications and compatibility.
Similar current model: Blackmagic Design Cinema Camera 6K – 6K full frame L-Mount cinema camera
2.5K digital film camera with passive Micro Four Thirds mount, 13 stops of dynamic range, 12-bit CinemaDNG RAW, ProRes and DNxHD recording to 2.5" SSD, 5" touchscreen and HD-SDI output.
Blackmagic Cinema Camera MFT
Blackmagic Cinema Camera MFT has a passive Micro Four Thirds lens mount for manually operated MFT lenses and for adapters to other mounts such as PL. It shares the machined aluminium design, 2.5K sensor and 13 stops of dynamic range of the Blackmagic Cinema Camera, recording lossless compressed 12-bit CinemaDNG RAW as well as Apple ProRes and Avid DNxHD files in 1920 x 1080 10-bit onto removable 2.5" SSDs.
The built in 5" capacitive touchscreen is used for monitoring, settings and metadata entry. Connections include a 10-bit HD-SDI output, two balanced 1/4" jack audio inputs switchable between mic and line level, a headphone output, LANC remote control and a Thunderbolt port.
Key features
- 2.5K sensor with 13 stops of dynamic range
- Passive MFT mount for manual lenses, compatible with most MFT adapters (e.g. PL)
- Focus peaking
- CinemaDNG RAW 2.5K, ProRes 422 HQ/422/LT/Proxy and DNxHD 1080p
- Film or video dynamic range for ProRes and DNxHD
- 5" touchscreen with metadata entry
- Integrated rechargeable battery, approx. 90 minutes
In the box
- Blackmagic Cinema Camera MFT
- Sun shield
- Camera strap
- Turret dust cap
- 12V AC adapter
Specifications
- Sensor size: 15.81 x 8.88 mm
- Frame rates: 1080p 23.98, 24, 25, 29.97, 30
- Storage: removable 2.5" SSD
- Video output: 1 x 10-bit HD-SDI 4:2:2
- Audio: 2 x 1/4" balanced inputs (mic/line), 3.5 mm headphone output, integrated mono microphone
- Remote: 2.5 mm LANC (record start/stop)
- Computer interface: Thunderbolt; USB 2.0 Mini-B for updates
- Power: integrated battery, 12-30 V DC input, 12 V AC adapter included
- Mounting: 3 x 1/4"-20 on top, 1 x 1/4"-20 tripod mount
| Product Condition | New |
|---|---|
| Manufacturer | Blackmagic Design |
| manufacturer code | CINECAM26KMFT |
| Ean | 9338716001884 |
| Product colour | Black |
| Modified on | 08-04-2014 |
| Product title | Blackmagic Design Cinema Version MFT Handheld camcorder Full HD Black |
| Long Product Name | Cinema Camera MFT, 2432 x 1366px, LCD capacitive touchscreen, mono microphone, mono speaker, 1.5 kg |
| Product specifications | Lens systemInterchangeable lens Yes Image stabilizer* No StorageCamcorder media type* SSD Disc types supported No Camcorder tape type No DisplayDisplay diagonal* 20.3 cm (8") Built-in display* Yes Display LCD Display resolution 800 x 480 pixels Touchscreen Yes CameraCamcorder type* Handheld camcorder 3D* No DesignProduct colour* Black Tripod mounting supported Yes VideoHD type* Full HD Maximum video resolution* 2432 x 1366 pixels Video resolutions 1920 x 1080,2432 x 1366 pixels Video formats supported RAW Maximum frame rate 30 fps AudioAudio system Mono Built-in microphone* Yes Built-in speaker(s) Yes Ports & interfacesMicrophone in Yes Headphone outputs* 1 Mini-USB 2.0 ports quantity 1 Headphone connectivity 3.5 mm BatteryBattery technology* Lithium-Ion (Li-Ion) Battery life (max)* 1.5 h Battery recharge time 2 h Weight & dimensionsWidth 166.2 mm Depth 113.5 mm Height 126.5 mm Weight* 1.7 kg Packaging contentBundled software DaVinci Resolve Hand strap Yes Batteries included Yes Quick start guide Yes AC adapter included Yes |
| Essential qualities |
|
| Image stabilizer | No |
| Camcorder media type | SSD |
| Display diagonal | 12.7 cm (5") |
| Built-in display | Yes |
| Camcorder type | Handheld/Shoulder camcorder |
| 3D | No |
| HD type | Full HD |
| Maximum video resolution | 2432 x 1366 pixels |
| PictBridge | No |
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| Headphone outputs | 1 |
| Battery technology | Lithium Polymer (LiPo) |
| Video recording time | 1.5 h |
| Battery life (max) | 1.5 h |
| Weight | 1.5 kg |
| AC adapter included | Yes |
