Blackmagic Design Cintel Audio and KeyKode Reader
GTIN: 9338716004052
In stock
SKU
BMD-CINTELSNAUDKCSCAN
Special Price €3,877.89 €3,178.60 Regular Price €4,215.10
Optional reader for the Cintel Scanner that captures audio and KeyKode information from film together with the images.

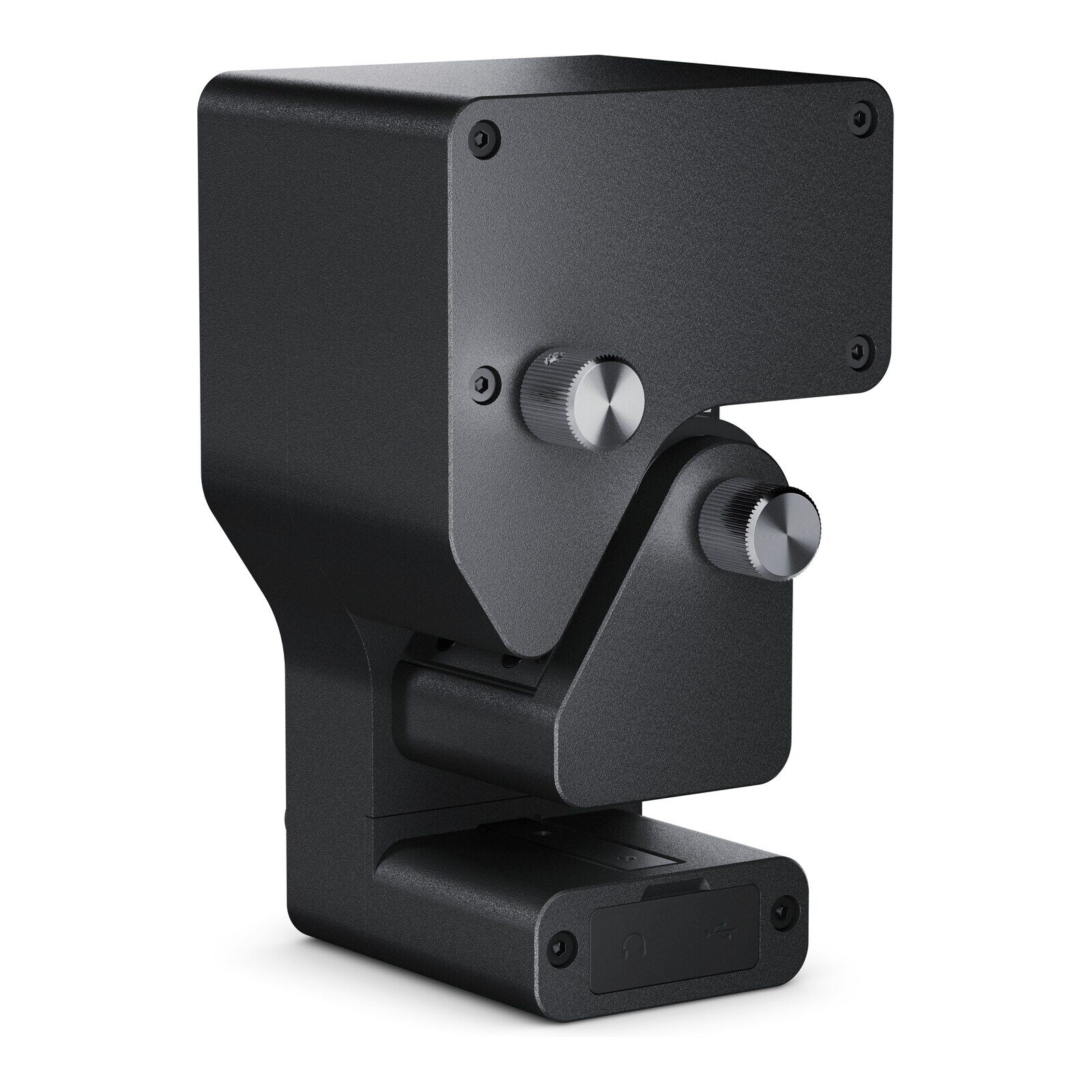

Blackmagic Design Cintel Audio and KeyKode Reader
Cintel Audio and KeyKode Reader lets you capture professional quality audio and KeyKode information from film, together with the images, with the Cintel Scanner. It uses LED illumination with dedicated optics and precision mechanical adjustments; the capstan with encoder automatically corrects wow and flutter.
KeyKode numbers identify each film frame and make it easy to match the video timecode.
Technical specifications
Features
| Equalisation | Optical audio SMPTE, Magnetic audio IEC. |
|---|---|
| Supported KeyKode Scan Speeds | All scanner speeds. |
| LED Type | Optical audio and KeyKode Deep RED. |
| Supported Audio Scan Speeds | 6fps-125% chosen film rate. i.e. 24fps film frame rate has a 30fps maximum scan speed and 16mm film has a 12fps lower limit. |
| Supported Optical Audio Types | Variable Area. Variable Density. |
| Audio Sampling Rate and Bit Depth | 48kHz 24 bit PCM WAV file |
| Optical Audio 35mm | Bandwidth: 40Hz-16kHz ±2dB SnR Signal to Noise Ratio: Transparent film base -65dB (measured with flat weighting). Wow and Flutter: < 0.15% (measured with IEC 386 weighting). (measured with IEC 60386 2012 weighting) |
| Optical Audio 16mm | Bandwidth: 40Hz-7kHz ±2dB SnR Signal to Noise Ratio: Transparent film base -65dB (measured with flat weighting). Wow and Flutter: < 0.3% (measured with IEC 386 weighting). (measured with IEC 60386 2012 weighting). |
| Magnetic Audio | Engagement Pressure: 15 grams Bandwidth: 32Hz-14kHz ±2dB SnR Signal to Noise Ratio: -55dB (measured with flat weighting). Wow and Flutter: < 0.3% (measured with IEC 386 weighting). (measured with IEC 60386 2012 weighting). |
| Full Modulation Level | -18dBFS |
| Headphones Level | -18dBu at 50Ω load (for monitoring purposes only). |
Connections
| Preview Audio Output | 3.5mm stereo headphone jack. |
|---|---|
| Audio Connection | XLR6 |
| Computer Interface | USB Type-C for software updates. |
Power Requirements
| Power Consumption | Voltage 12V. Power 10W. |
|---|
Ideal Film Conditions
| Operating Temperature | 18 - 28°C |
|---|---|
| Relative Humidity | Maximum 65% non-condensing. |
| Product Condition | New |
|---|---|
| Manufacturer | Blackmagic Design |
| manufacturer code | CINTELSNAUDKCSCAN |
| Ean | 9338716004052 |
| Essential qualities |
|
| Device compatibility | Scanner |
| Brand compatibility | Blackmagic Design |
| Compatibility | Cintel |
| Quantity per pack | 1 pc(s) |
