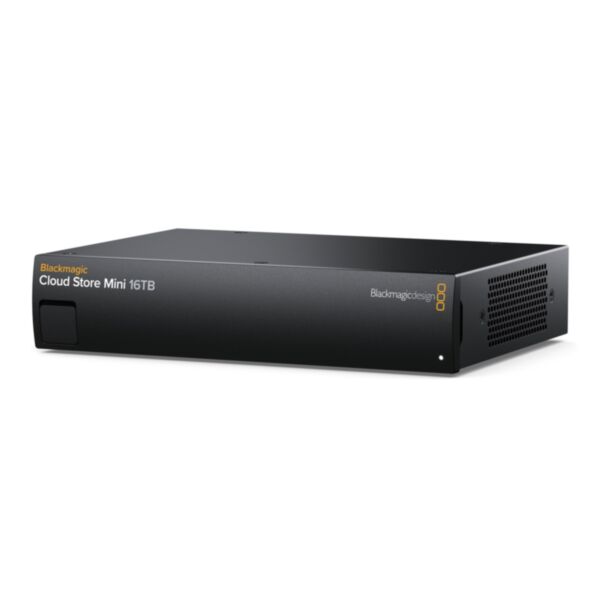

Blackmagic Design Cloud Store Mini 16TB – 16TB 10G flash network storage
GTIN: 9338716008746
Cloud Store Mini 16TB: compact rack network storage with 16TB on 4 M.2 NVMe cards in RAID 0, 10G Ethernet, up to 50 users, Blackmagic Cloud sync.
Blackmagic Design Cloud Store Mini 16TB – 16TB 10G flash network storage
Blackmagic Cloud Store Mini 16TB is fast network storage in a compact rack mount design: a 10G Ethernet connection and four internal M.2 flash memory cards working in parallel RAID 0 give very fast file access, even with many simultaneous users.
What the Cloud Store Mini 16TB is for
It lets small post production and editing studios work with several people on the same files, for example with collaborative DaVinci Resolve. Like all Blackmagic Cloud products it shares files over the network with SMB and NFS, is set up with Blackmagic Cloud Setup and includes Blackmagic Proxy Generator Lite. With Blackmagic Cloud it can sync files with other locations worldwide, and the HDMI output shows device name, storage capacity and use, sync status, user activity, hardware status and network data rate graphs on a monitor.
Connections
1 10G Ethernet port, 1 1G Ethernet port, USB-C 3.0 with Ethernet over USB, HDMI monitor output, up to 50 connections, 16TB on M.2 NVMe SSD. Front LED white in normal operation, red on disk fault.
How to choose
Cloud Pod: turns a USB-C disk into network storage. Cloud Dock 2 and 4: removable 2.5" SATA or U.2 disks. Cloud Store Mini: 4 internal M.2 cards, compact. Cloud Store Max: 12 M.2 cards, 4 10G ports and one 100G. Cloud Store Ultra: 2 100G ports, RAID 5 and dual power supply. Cloud Backup 8: 8 3.5" hard disks for low cost backup.
bmdonline.eu is an authorized Blackmagic Design reseller: the official extended warranty is also available for this product.
Technical specifications
Connections
| 10G Ethernet Ports | 1 x Ethernet 100/1000/10G BASE-T |
|---|---|
| 1G Ethernet Ports | 1 x 100/1000 BASE-T |
| USB-C Port | 1 x USB 3.0 (up to 5Gb/s). Supports Ethernet Over USB |
| HDMI Monitor Outputs | 1 |
| Computer Interface | USB-C or Ethernet for shared file access, configuration and software updates. |
File Sharing Protocol
| Protocol | NFS SMB |
|---|---|
| Computer Connections | 50 max. |
Cloud Synchronization
| Amazon Web Services S3 sync. |
Storage
| Storage Type | M.2 NVMe SSD |
|---|---|
| Total Capacity | 16TB |
Displays
| HDMI Monitor Out Standards | 1080p50, 1080p59.94, 1080p60 |
|---|---|
| Monitor Out Displays | Device Name, storage capacity and use, Cloud Sync status, User Activity, Hardware Status, storage map, network data rate graph. |
| Status Indicator | Front panel LED illuminates white indicating normal operation or red indicating disk fault. |
Device Control
| External Control | USB-C or Ethernet for configuration and software updates. |
|---|
Software
| Software Included | Blackmagic Cloud Setup Utility Blackmagic Proxy Generator Lite Internal software upgrade via Blackmagic Cloud Setup using USB-C port. |
|---|
Operating Systems
| Mac 26.0 Tahoe, Mac 27.0 Golden Gate or later. Windows 10, 64-bit. Windows 11. |
Power Requirements
| Power Supply | Internal 100 - 240V AC 50/60Hz with IEC C14 mains input. |
|---|---|
| Power Inputs | 1 x IEC C14 mains input. 1 x 12V DC locking 5.5 mm barrel connector. |
| Power Usage | 35W |
Environmental Specifications
| Operating Temperature | 0° to 40° C (32°to 104° F) |
|---|---|
| Storage Temperature | -20° to 60° C (-4° to 140° F) |
| Relative Humidity | 0% to 90% non-condensing |
What's Included
| Blackmagic Cloud Store Mini 16TB Welcome wallet with QR code for software download |
Warranty
| 1 Year Limited Manufacturer’s Warranty. |
| Product Condition | New |
|---|---|
| Manufacturer | Blackmagic Design |
| manufacturer code | DWCLDE/CLDMINI16 |
| Ean | 9338716008746 |
| Taric Code | 8517620000 |
| Warranty | 12 Month Limited |
| Product specifications | PerformanceBuilt-in storage media* Yes Internal storage capacity 16 TB Storage media SSD Windows operating systems supported Windows 10, Windows 11 Mac compatibility Yes Mac operating systems supported Mac OS X 14.0 Sonoma Operating temperature (T-T) 0 - 40 °C Storage temperature (T-T) -20 - 60 °C Operating relative humidity (H-H) 0 - 90% Ports & interfacesEthernet LAN* Yes Ethernet LAN data rates 10,100,1000 Mbit/s USB connectivity* Yes DesignProduct colour* Black DesignLED indicators Status PowerAC adapter input voltage 100 - 240 V AC adapter frequency 50/60 Hz Logistics dataCountry of origin Indonesia Technical detailsWarranty period 1 year(s) Weight & dimensionsWidth 210.5 mm Depth 155 mm Height 44.2 mm Packaging contentPower supply included Yes |
| Built-in storage media | Yes |
| Ethernet LAN | Yes |
| USB connectivity | Yes |
| Product colour | Black |
| Device type | Network storage |
| Storage capacity | 16 TB |
| Network | 10G Ethernet |
