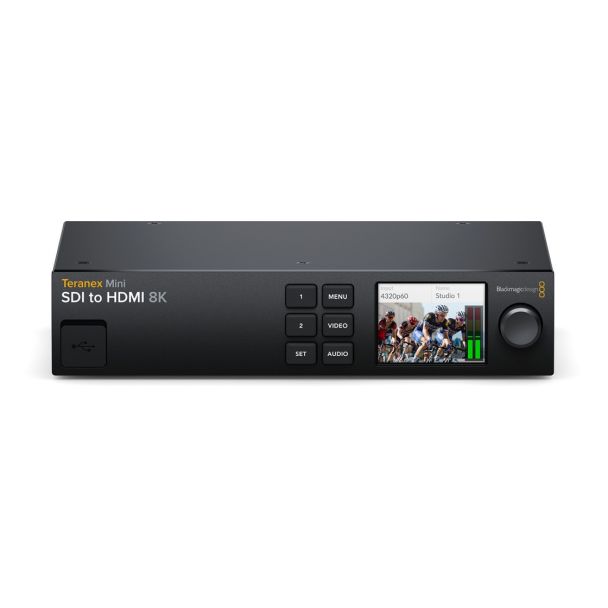

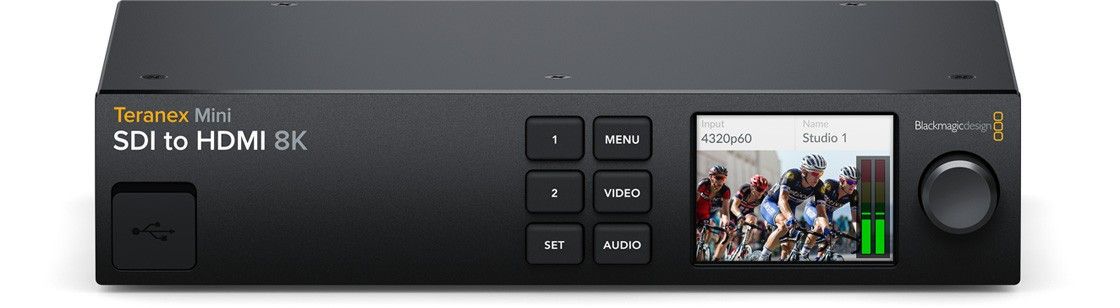

Blackmagic Design Teranex Mini - SDI to HDMI 8K HDR Active video converter
GTIN: 9338716006179
In stock
SKU
BMD-CONVN8TRM/AA/SDIH
Special Price €1,453.51 €1,191.40 Regular Price €1,579.90
4 x 12G-SDI HD/2K/4K/8K auto switching. Dual and quad link 12G‑SDI for 8K only, 4 x 12G-SDI loop output, 4 x HDMI 2.0 type A connector with support for HD, UHD and 4K in single link or 4320p60 in Quad Link, USB-C or Ethernet
Commercial guarantee of durability offered by the producer at no extra cost: 3 years. See the GARAN label
Advanced 8K HDMI monitoring solution for converting SDI sources to HDMI in all HD, Ultra HD and 8K formats up to 4320p60. Includes 4 HDMI 2.0 output connections, built in down converter, HDR formats, 33 point 10‑bit RGB LUTs, built in waveform, parade, vector and histogram scopes, monitor calibration and more.
| Product Condition | New |
|---|---|
| Manufacturer | Blackmagic Design |
| manufacturer code | CONVN8TRM/AA/SDIH |
| Ean | 9338716006179 |
| Taric Code | 8543709099 |
| Modified on | 22-07-2022 |
| Warranty | 1 year Limited Manufacturer’s Warranty |
| Product title | Blackmagic Design CONVN8TRM/AA/SDIH video signal converter Active video converter |
| Long Product Name | 4 x 12G-SDI HD/2K/4K/8K auto switching. Dual and quad link 12G‑SDI for 8K only, 4 x 12G-SDI loop output, 4 x HDMI 2.0 type A connector with support for HD, UHD and 4K in single link or 4320p60 in Quad Link, USB-C or Ethernet |
| Product specifications | FeaturesConverter type* Active video converter Internal No Reclocking Yes LED indicators Yes Product colour Black Windows operating systems supported Windows 10 Mac operating systems supported Mac OS X 10.15 Catalina, Mac OS X 11.0 Big Sur VideoSupported video modes 720p, 1080i, 1080p, 2560p, 3840p, 7680p Supported chroma subsampling 4:2:2, 4:4:4 Colour space supported RGB, YUV SDI auto-switching Yes Ports & interfacesHost interface* SDI (BNC) Output interface* HDMI PowerExternal power adapter Yes USB powered Yes Input voltage 110 - 240 V Power consumption (typical) 25 W Operational conditionsOperating temperature (T-T) 0 - 40 °C Storage temperature (T-T) -20 - 60 °C Weight & dimensionsWidth 210 mm Depth 176 mm Height 44 mm Weight 1.2 kg |
| Essential qualities |
|
| Converter type | Active video converter |
| Host interface | SDI (BNC) |
| Output interface | HDMI |
