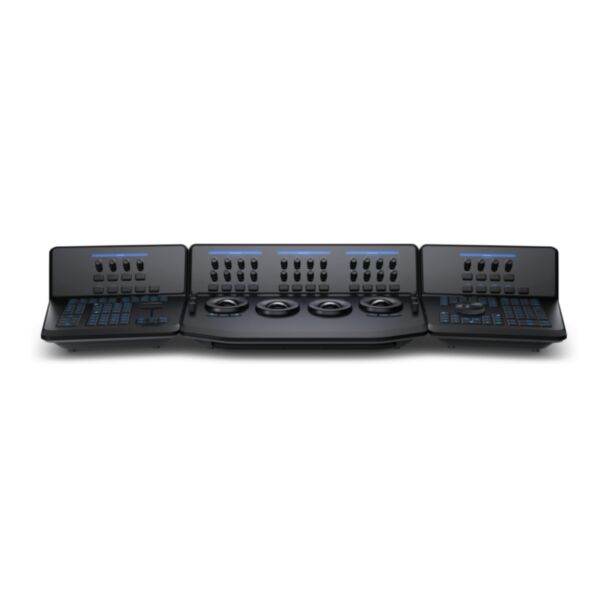

Blackmagic Design DaVinci Resolve Advanced Panel – Professional color grading console
GTIN: 9338716000788
DaVinci Resolve Advanced Panel: three-section color grading console with pull out keyboard, weighted trackballs, knobs and soft keys for every DaVinci Resolve function.
Blackmagic Design DaVinci Resolve Advanced Panel – Professional color grading console
DaVinci Resolve Advanced Panel has three ergonomically connected control surfaces and a pull out keyboard, giving complete command of every grading session. Each correction has its own soft key, knob, high resolution weighted trackball or ring.
What the DaVinci Resolve Advanced Panel is for
It is the console for professional grading suites in film, commercials and television: it lets you experiment faster and create a wider range of looks. It works with DaVinci Resolve, Blackmagic Design's editing, color, effects and audio software, also available in a free version; controls are designed for two-handed work, much faster than a mouse.
Connection and power
USB Type-B on each section, 2 USB loop outputs for the side panels and 2 USB-A ports for a mouse and other devices. External 100-240V supply, 80 W maximum.
How to choose
Micro Color Panel: compact, battery powered, Bluetooth, with iPad slot. Micro Panel: 3 trackballs and 12 knobs over USB-C. Mini Panel: adds two 5" screens, soft keys and knobs and Ethernet. Advanced Panel: the full three-section console for grading suites.
bmdonline.eu is an authorized Blackmagic Design reseller: the official extended warranty is also available for this product.
Technical specifications
Connections
| Computer Interface | USB Type‑B connector on each panel. |
|---|---|
| USB Loop Out | 2 x loop out USB Type‑A connectors for side panels. |
| USB Hub | 2 x USB Type‑A connectors for a mouse and other USB devices. |
| Software Updates | USB Type Mini‑B connectors on each panel for factory software updates. |
| 12V Power Input | Centre 3‑pin 3W3 D‑Sub connector on Trackball Panel. 3‑pin 3W3 D‑Sub connector on the Search Dial and T‑bar Panels. |
| 12V Power Output | Left and right 3‑pin 3W3 D‑Sub connectors on Trackball Panel. |
Power Requirements
| Power Supply | External 100 - 240V AC 1.5A 50/60Hz with IEC C14 mains input. |
|---|---|
| Power Usage | 80W max. |
Environmental Specifications
| Operating Temperature | 0° to 40°C (32° to 104°F) |
|---|---|
| Storage Temperature | -20° to 60°C (-4° to 140°F) |
| Relative Humidity | 0% to 90% non-condensing |
| Product Condition | New |
|---|---|
| Manufacturer | Blackmagic Design |
| manufacturer code | DV/RES/AADPNL |
| Ean | 9338716000788 |
| Taric Code | 8537109899 |
