Blackmagic Design DeckLink IP/SDI HD – SMPTE 2110 and 3G-SDI PCIe card with 10G RJ45 Ethernet
GTIN: 9338716008265
DeckLink IP/SDI HD: PCIe card with 10G SMPTE 2110 Ethernet (2 channels in and 2 out) and 2 bidirectional 3G-SDI connections, up to 1080p60.
Commercial guarantee of durability offered by the producer at no extra cost: 3 years. See the GARAN label
Blackmagic Design DeckLink IP/SDI HD – SMPTE 2110 and 3G-SDI PCIe card with 10G RJ45 Ethernet

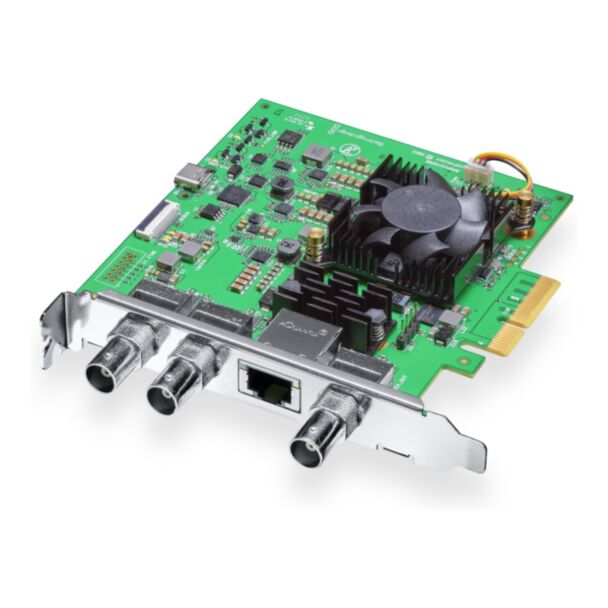

DeckLink IP/SDI HD works with both SMPTE 2110 networks and traditional SDI. It has a 10G RJ45 Ethernet port with 2 capture and 2 playback channels, 2 3G-SDI connections configurable as input or output, and a reference output.
What the DeckLink IP/SDI HD is for
It is the card for the transition from SDI to IP: the same computer can receive and send video over the 2110 network and keep talking to SDI monitors, switchers and recorders. It works with Apple ProRes, DNxHD or 10-bit uncompressed video.
Connections and formats
10G BASE-T Ethernet with 2 inputs and 2 outputs, each up to 1080p60 with 16 audio channels; 2 bidirectional 3G-SDI connections up to 12 bit with 16 audio channels; Black Burst or Tri-Sync reference output. Formats from 525i to 1080p60, 12-bit RGB 4:4:4 up to 1080p30. Power consumption: 10 W.
Installation and compatibility
It uses a 4 lane second generation PCI Express slot and also works in wider slots. It runs on Windows, Linux and Mac computers with PCI Express slots; the Desktop Video driver includes Media Express, Disk Speed Test, LiveKey and the setup utility, and the free SDK lets you build the card into your own applications.
IP/SDI HD or IP HD?
If the facility is already all IP, DeckLink IP HD is enough; IP/SDI HD is needed when SDI equipment must be connected too.
bmdonline.eu is an authorized Blackmagic Design reseller: the official extended warranty is also available for this product.
Technical specifications
Connections
| SDI Ports | 2 x bidirectional 12-bit SD/HD independently configurable as either Input or Output. 16 channels audio embedded in SD and HD. |
|---|---|
| 10G Ethernet Port | 1 x 10G BASE-T 10G ethernet supports 2 input channels and 2 output channels, each up to 1080p60 with 16 audio channels. |
| Sync Output | Tri-Sync or Black Burst. |
| Computer Interface | PCI Express 4 lane generation 2, compatible with 4, 8 and 16 lane PCI Express slots. |
Supported Codecs
| AVC‑Intra, AVCHD, Canon XF MPEG2, Digital SLR, DV‑NTSC, DV‑PAL, DVCPRO50, DVCPROHD, DPX, HDV, HEVC, XDCAM EX, XDCAM HD, XDCAM HD422, DNxHR & DNxHD, Apple ProRes 4444, Apple ProRes 422 HQ, Apple ProRes 422, Apple ProRes LT, Apple ProRes 422 Proxy, Uncompressed 8‑bit 4:2:2, Uncompressed 10‑bit 4:2:2, Uncompressed 10‑bit 4:4:4 |
Software
| Software Included | Media Express, Disk Speed Test, LiveKey, Blackmagic Desktop Video Utility and Blackmagic driver on Mac OS and Windows. Media Express, Blackmagic Desktop Video Utility and Blackmagic driver on Linux. |
|---|---|
| Internal Software Upgrade | Firmware built into software driver. Loaded at system start or via updater software. |
| Physical Installation | PCI Express 4 lane generation 2, compatible with 4 and 8 lane PCI Express slots on Mac OS, Windows and Linux. Mac OS systems require a Mac Pro computer with PCI Express slots. Please check the Support pages to see the full system requirements. |
Video Standards
| HD Video Standards | 720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080PsF23.98*, 1080PsF24*, 1080PsF25*, 1080PsF29.97*, 1080PsF30* * PsF SDI ONLY |
|---|---|
| SDI Compliance | SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M, level A and B, ITU‑R BT.656 and ITU‑R BT.601. |
| SDI Metadata Support | RP 188/SMPTE 12M-2 and closed captioning. |
| Audio Sampling | Television standard sample rate of 48 kHz and 24 bit. |
| Color Precision | 8, 10, 12-bit RGB 4:4:4 in all modes up to 1080p30 and 8, 10-bit YUV 4:2:2 in all modes. |
| Color Space | REC 601, REC 709, REC 2020 |
| HDR Support | HDR static metadata packing, HLG and PQ transfer characteristics. |
IP Video Compliance
| SMPTE 2110-20 (Uncompressed Video) | IGMP v2/v3 |
|---|---|
| SMPTE 2110-21 (Traffic Shaping) | Sender: Narrow Receiver: Narrow, Wide Synchronous, Asynchronous |
| SMPTE 2110-30 (PCM) | Audio Conformance level: Level C |
| SMPTE 2110-40 (Ancillary Data) | Full access to entire SMPTE ancillary data stream. Includes RP 188/SMPTE 12M-2, closed captioning and HDR static metadata. |
| Precision Time Protocol | IEEE 1588-2008 (PTP v2) ST 2059-1 ST 2059-2 |
| NMOS IS-04 Discovery and Registration | v1.3.2 Peer-to-peer via mDNS/DNS-SD |
| NMOS IS-05 Connection Management | v1.1.2 |
| NMOS BCP-002-01 | Natural Grouping |
| NMOS BCP-004-01 | Receiver capabilities |
Processing
| Colorspace Conversion | Hardware based real time. |
|---|---|
| Real Time Effects | DaVinci Resolve, Final Cut Pro internal effects. Adobe Premiere Pro CC Mercury Playback Engine effects. Avid Media Composer internal effects. |
Power Requirements
| Power Consumption | 10 Watts |
|---|
Environmental Specifications
| Operating Temperature | 5° to 40 ° C (32° to 104° F) |
|---|---|
| Storage Temperature | -20° to 45° C (-4° to 113° F) |
| Relative Humidity | 0% to 90% non-condensing |
| Product Condition | New |
|---|---|
| Manufacturer | Blackmagic Design |
| manufacturer code | BDLKIPFIP/SDI/HD |
| Ean | 9338716008265 |
| Taric Code | 8471800000 |
| Warranty | 3 Year Limited Manufacturer's |
| Product specifications | PerformanceProduct colour* Green Internal* Yes Host interface* PCIe Video capture resolution (max) 1920 x 1080 pixels VideoAnalog signal format system* NTSC, PAL Maximum frame rate 60 fps Video codecs AVC‑Intra, AVCHD, Canon XF MPEG2, Digital SLR, DV‑NTSC, DV‑PAL, DVCPRO50, DVCPROHD, DPX, HDV, HEVC, XDCAM EX, XDCAM HD, XDCAM HD422, DNxHR & DNxHD, Apple ProRes 4444, Apple ProRes 422 HQ, Apple ProRes 422, Apple ProRes LT, Apple ProRes 422 Proxy, Uncompressed 8‑bit 4:2:2, Uncompressed 10‑bit 4:2:2, Uncompressed 10‑bit 4:4:4 Supported video modes 1080i, 625i, 1080p, 720p, 525i AudioAudio support Yes Sample rate 48 kHz Ports & interfacesUSB port* No RJ-45 ports quantity 1 BNC ports quantity 2 PowerPower consumption 10 W SoftwareWindows operating systems supported Windows 10 x64, Windows 11 Mac compatibility Yes Mac operating systems supported Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura Linux operating systems supported Yes Operational conditionsOperating temperature (T-T) 5 - 40 °C Storage temperature (T-T) -20 - 45 °C Operating relative humidity (H-H) 0 - 90% Weight & dimensionsWidth 137.6 mm Weight 159 g |
| Essential qualities |
|
| Product colour | Green |
| Internal | Yes |
| Host interface | PCIe |
| Analog signal format system | NTSC, PAL |
| USB port | No |
| Maximum resolution | HD |
| SDI rate | 3G |
| Function | Capture and playback |
| Computer interface | PCI Express |
| Video connection type | SDI, IP SMPTE 2110 |
| Independent channels | 2 |
| PCI Express slot (lanes) | 4 |
| Format | Internal card |
| Operating systems | macOS, Windows, Linux |
