Blackmagic Design DeckLink Mini Monitor 4K – 6G-SDI and HDMI 4K PCIe playback card
GTIN: 9338716004359
DeckLink Mini Monitor 4K: low profile PCIe card with 6G-SDI and HDMI 2.0a outputs for monitoring in SD, HD and Ultra HD up to 2160p30, with HDR.
Commercial guarantee of durability offered by the producer at no extra cost: 3 years. See the GARAN label

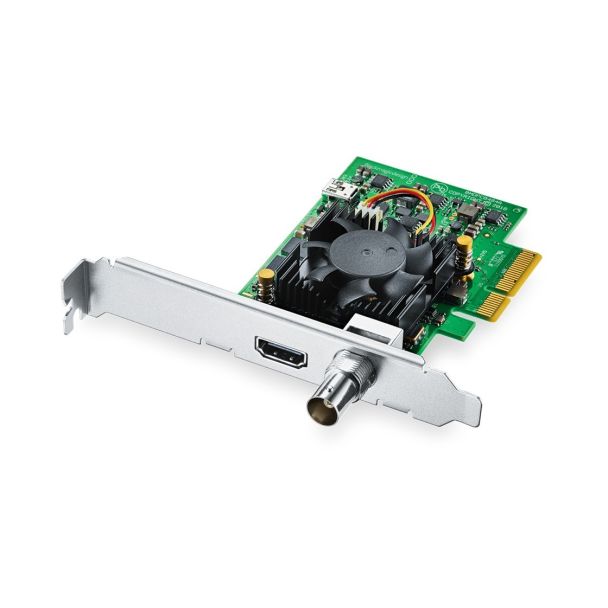

Blackmagic Design DeckLink Mini Monitor 4K – 6G-SDI and HDMI 4K PCIe playback card
DeckLink Mini Monitor 4K is the low profile playback card for Ultra HD work: it has one 6G-SDI output and one HDMI 2.0a output, detects and switches all formats up to 2160p30 automatically and also sends HDR metadata over HDMI.
What the DeckLink Mini Monitor 4K is for
It is the choice for reference monitoring in Ultra HD and HDR editing, grading and graphics, and for playback to monitors, projectors and playout systems. The Desktop Video SDK lets you build custom playback applications.
Outputs and quality
10-bit SD/HD/Ultra HD SDI output and HDMI 2.0a output with Deep Color up to 12 bit. On SDI it supports 12-bit RGB 4:4:4 up to 1080p60 and 8 and 10-bit YUV 4:2:2 in all formats; Ultra HD up to 2160p30 and 4K DCI up to 25p.
Installation and compatibility
It uses a 4 lane second generation PCI Express slot and also works in wider slots. It runs on Windows, Linux and Mac computers with PCI Express slots; the Desktop Video driver includes Media Express, Disk Speed Test, LiveKey and the setup utility, and the free SDK lets you build the card into your own applications.
Mini Monitor 4K or Mini Recorder 4K?
They share the same format and generation: Mini Monitor 4K plays back, DeckLink Mini Recorder 4K captures. To do both with one card there are DeckLink SDI 4K and Studio 4K.
bmdonline.eu is an authorized Blackmagic Design reseller: the official extended warranty is also available for this product.
Technical specifications
Connections
| SDI Video Outputs | 1 x 10 bit SD/HD/Ultra HD switchable. |
|---|---|
| SDI Audio Outputs | 16 channels embedded in SD, HD, Ultra HD. |
| HDMI Video Outputs | 1 x HDMI 2.0a connector. |
| HDMI Audio Outputs | 8 Channels embedded in SD, HD, Ultra HD. |
| Computer Interface | PCI Express 4 lane generation 2, compatible with 4, 8 and 16 lane PCI Express slots. |
Software
| Software Included | Media Express, Disk Speed Test, LiveKey, Blackmagic Desktop Video Utility and Blackmagic driver on Mac OS and Windows. Media Express, Blackmagic Desktop Video Utility and Blackmagic driver on Linux. |
|---|---|
| Internal Software Upgrade | Firmware built into software driver. Loaded at system start or via updater software. |
| Physical Installation | PCI Express 4 lane generation 2, compatible with 4, 8 and 16 lane PCI Express slots on Mac OS, Windows and Linux. Mac OS systems require a Mac Pro computer with PCI Express slots. Please check the Support pages to see the full system requirements. |
Video Standards
| SD Video Standards | 525i59.94 NTSC, 625i50 PAL |
|---|---|
| HD Video Standards | 720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30 1080i50, 1080i59.94, 1080i60 |
| Ultra HD Video Standards | 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30 |
| 4K DCI Video Standards | 4K DCI 23.98p, 4K DCI 24p, 4K DCI 25p. |
| 2K Video Standards (SDI Only) | 2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p 2K DCI 23.98PsF, 2K DCI 24PsF, 2K DCI F25PsF |
| SDI Compliance | SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 425M, SMPTE 2081, ITU-R BT.656 and ITU-R BT.601. |
| SDI Metadata Support | RP 188/SMPTE 12M-2 and closed captioning. |
| Audio Sampling | Television standard sample rate of 48 kHz and 24 bit. |
| SDI Color Precision | 8, 10, 12-bit RGB 4:4:4 in all modes up to 1080p60, and 8, 10-bit YUV 4:2:2 in all modes. |
| SDI Video Sampling | 4:4:4 & 4:2:2 |
| Color Space | REC 601, REC 709, REC 2020. |
| SDI HDR Support | HDR static metadata packing, HLG and PQ transfer characteristics. |
| HDMI Video Sampling | 4:4:4, 4:2:2 & 4:2:0 |
| HDMI Configuration | HDMI 2.0a supports Deep Color and HDR. Automatically configures to connected display. |
| HDMI Resolution | Pixel for pixel HD resolution output to connected device. |
| HDMI Color Precision | Up to 12-bit (Deep Color) |
| HDMI HDR Support | HDR static metadata packing, HLG and PQ transfer characteristics. |
| Multiple Rate Support | HDMI and SDI video connections are switchable between SD/HD/2K and 4K. |
Processing
| HD to SD Down Conversion | Software based down conversion during video playback. |
|---|---|
| HD Cross Conversion | Software based cross conversion from 720p to 1080HD on playback. |
| Colorspace Conversion | Hardware based real time. |
| Real Time Effects | DaVinci Resolve, Final Cut Pro X internal effects. Adobe Premiere Pro CC Mercury Playback Engine effects. Avid Media Composer internal effects. |
| Power Consumption | 10 W |
|---|
Environmental Specifications
| Operating Temperature | 5° to 40° C (32° to 104° F) |
|---|---|
| Storage Temperature | -20° to 45° C (-4° to 113° F) |
| Relative Humidity | 0% to 90% non-condensing |
| Product Condition | New |
|---|---|
| Manufacturer | Blackmagic Design |
| manufacturer code | BDLKMINIMON4K |
| Ean | 9338716004359 |
| Taric Code | 8471800000 |
| Warranty | 3 Year Limited Manufacturer's Warranty |
| Product specifications | PerformanceProduct colour* Green, Grey Internal* Yes Host interface* PCIe VideoAnalog signal format system* NTSC, PAL Supported video modes 525i, 625i, 720p, 1080i, 1080p, 2160p Ports & interfacesNumber of HDMI outputs 1 Operational conditionsOperating temperature (T-T) 5 - 40 °C Storage temperature (T-T) -20 - 45 °C Operating relative humidity (H-H) 0 - 90% Weight & dimensionsDepth 120 mm Weight 90 g |
| Product colour | Green, Grey |
| Internal | Yes |
| Host interface | PCIe |
| Analog signal format system | NTSC, PAL |
| Maximum resolution | Ultra HD |
| SD support (PAL/NTSC) | Yes |
| Function | Playback |
| Computer interface | PCI Express |
| Video connection type | SDI, HDMI |
| Independent channels | 1 |
| Channel configuration | Outputs only |
| PCI Express slot (lanes) | 4 |
| Format | Internal card |
| Operating systems | macOS, Windows, Linux |
