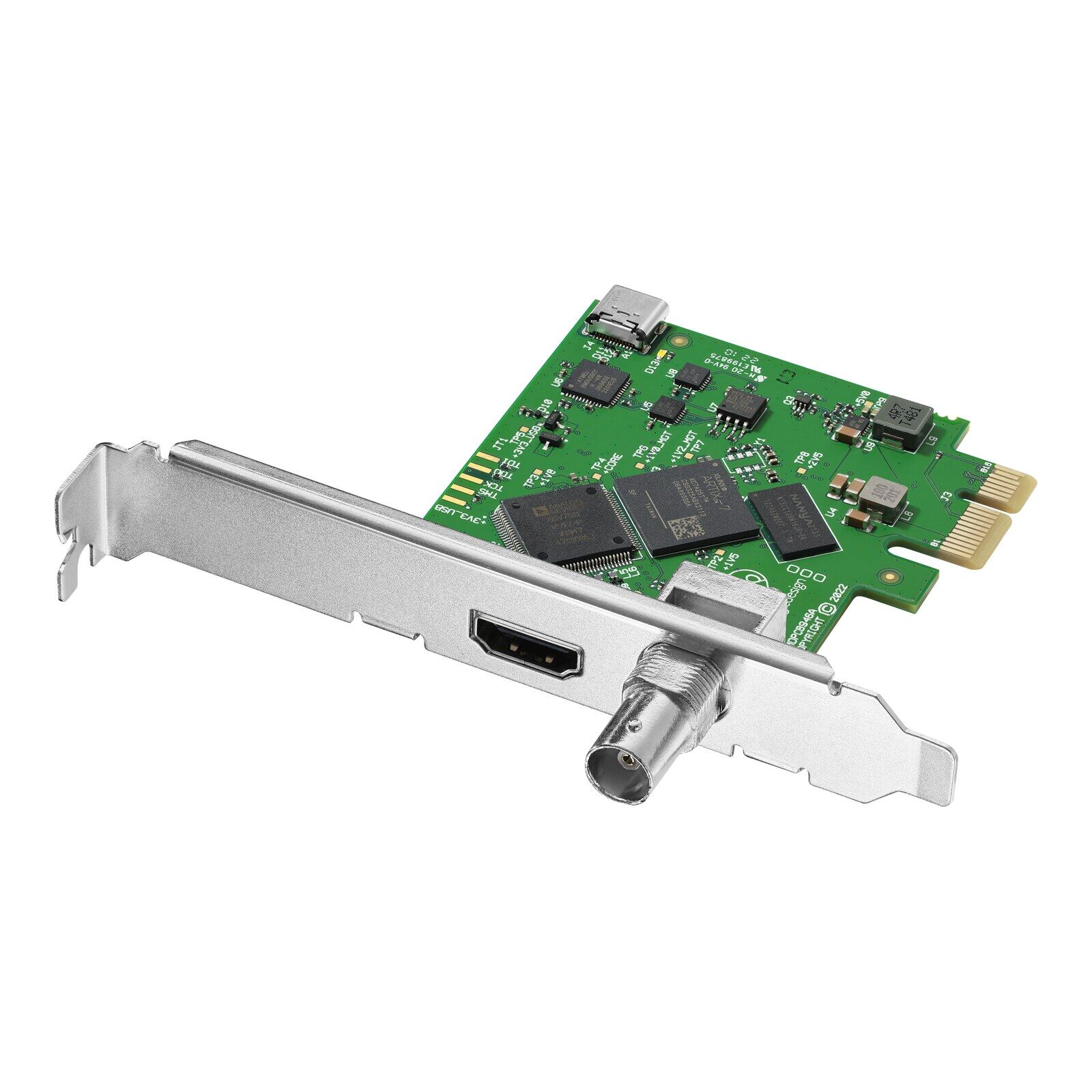

DeckLink Mini Monitor HD: low profile PCIe card with 3G-SDI and HDMI 2.0 outputs for broadcast monitoring in SD and HD, including HDR.
Commercial guarantee of durability offered by the producer at no extra cost: 3 years. See the GARAN label
Blackmagic Design DeckLink Mini Monitor HD – PCIe playback card with 3G-SDI and HDMI 2.0
DeckLink Mini Monitor HD sends the computer video signal to a monitor, TV or projector in broadcast quality. It has one 3G-SDI output and one HDMI 2.0 output, in all SD and HD formats, including high dynamic range (HDR) formats.
What the DeckLink Mini Monitor HD is for
It is the card for viewing your program on a reference monitor while working in DaVinci Resolve, Final Cut Pro or other editing and graphics software, without going through the computer graphics card, so colors and frame rates are correct. It also handles playback to recorders, switchers or playout systems.
Outputs and formats
1 x 10-bit SDI output switchable SD/HD (270 Mb, 1.5G and 3G) and 1 x HDMI 2.0 type A output. Power consumption: 3 W.
Installation and compatibility
It uses a 1 lane second generation PCI Express slot and also works in wider slots. It runs on Windows, Linux and Mac computers with PCI Express slots; the Desktop Video driver includes Media Express, Disk Speed Test, LiveKey and the setup utility, and the free SDK lets you build the card into your own applications.
Mini Monitor HD or Mini Monitor 4K?
If you work in Ultra HD you need DeckLink Mini Monitor 4K, with 6G-SDI and HDMI 2.0a up to 2160p30. For HD, Mini Monitor HD is enough and uses a 1 lane slot.
bmdonline.eu is an authorized Blackmagic Design reseller: the official extended warranty is also available for this product.
Technical specifications
Connections
| SDI Video Output | 1 x 10-bit SD/HD switchable |
|---|---|
| SDI Rates | 270Mb, 1.5G, 3G |
| SDI Audio Output | 16 channels embedded in SD/HD |
| HDMI Video Output | 1 x HDMI 2.0 type A connector |
| HDMI Audio Output | 8 channels embedded in SD/HD |
| Computer Interface | PCI Express 1 lane generation 2, compatible with 1, 4, 8 and 16 lane PCI Express slots. |
Software
| Software Included | Media Express, Disk Speed Test, LiveKey, Blackmagic Desktop Video Utility and Blackmagic driver on Mac OS and Windows. Media Express, Blackmagic Desktop Video Utility and Blackmagic driver on Linux. |
|---|---|
| Internal Software Upgrade | Firmware built into software driver. Loaded at system start or via updater software. |
| Physical Installation | PCI Express 1 lane generation 2, compatible with 1, 4, 8 and 16 lane PCI Express slots on Mac OS, Windows and Linux. Mac OS systems require a Mac Pro computer with PCI Express slots. Please check the Support pages to see the full system requirements. |
SDI Video Standards
| SDI Video Standards | 525i59.94 NTSC, 625i50 PAL |
|---|---|
| HD Video Standards | 720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30 1080i50, 1080i59.94, 1080i60 |
| 2K Video Standards | 2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI, 2Kp50 DCI, 2Kp59.94 DCI,2Kp60 DCI 2KPsF23.98 DCI, 2KPsF24 DCI, 2KPsF25 DCI, 2KPsF29.97 DCI, 2KPsF30 DCI |
| SDI Compliance | SMPTE 259M, SMPTE 274M, SMPTE 296M, SMPTE 424M, SMPTE 425M A/B and SMPTE ST2108–1 |
| SDI Metadata Support | RP 188/SMPTE 12M-2 and closed captioning. |
| SDI Audio Sampling | Television standard sample rate of 48 kHz and 24-bit. |
| SDI Video Sampling | 4:2:2, 4:4:4 |
| SDI Color Precision | 8, 10, 12-bit RGB 4:4:4 up to 1080p30, and 8, 10-bit YUV 4:2:2 in all standards. |
| SDI Color Space | REC 601, REC 709 and REC 2020 |
| SDI HDR Support | HDR metadata packing, HLG and PQ transfer characteristics. |
| Multiple Rate Support | SDI video connection is switchable between SD and HD. |
HDMI Video Standards
| SDI Video Standards | 525i59.94 NTSC, 625i50 PAL |
|---|---|
| HD Video Standards | 720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080i50, 1080i59.94, 1080i60 |
| HDMI Audio Sampling | Television standard sample rate of 48 kHz and 24 bit. |
| HDMI Video Sampling | 4:2:2 and 4:4:4 |
| HDMI Color Precision | 10, 12-bit RGB 4:4:4 up to 1080p30, 8-bit RGB 4:4:4 and 12-bit YUV 4:2:2 in all standards. |
| HDMI Configuration | HDMI 2.0 supports Deep Color and HDR. Automatically configures to connected display. |
| HDMI Color Space | REC 601, REC 709 and REC 2020 |
| HDMI HDR Support | HDR metadata packing, HLG and PQ transfer characteristics. |
| Multiple Rate Support | HDMI video connection is switchable between SD and HD. |
Processing
| Real Time Effects | DaVinci Resolve, Final Cut Pro internal effects. Adobe Premiere Pro CC Mercury Playback Engine effects. Avid Media Composer internal effects. |
|---|---|
| Colorspace Conversion | Hardware based real time. |
Power Requirements
| Power Consumption | 3 W |
|---|
Environmental Specifications
| Operating Temperature | 5° to 40° C (32° to 104° F) |
|---|---|
| Storage Temperature | -20° to 45° C (-4° to 113° F) |
| Relative Humidity | 0% to 90% non-condensing |
| Product Condition | New |
|---|---|
| Manufacturer | Blackmagic Design |
| manufacturer code | BDLKMINIMON3G |
| Ean | 9338716007916 |
| Taric Code | 8471800000 |
| Warranty | 3 Year Limited Manufacturer's |
| Product specifications | PerformanceProduct colour* Green Internal* Yes Host interface* PCIe Video capture resolution (max) 2560 x 1440 pixels High Dynamic Range (HDR) supported Yes VideoAnalog signal format system* NTSC, PAL Maximum frame rate 60 fps Video codecs AVC-Intra, AVCHD, Canon XF MPEG2, Digital SLR, DV-NTSC, DV-PAL, DVCPRO50, DVCPROHD, DPX, HDV, HEVC, XDCAM EX, XDCAM HD, XDCAM HD422, DNxHR & DNxHD, Apple ProRes 4444, Apple ProRes Supported video modes 720p, 1080i, 1080p AudioAudio support Yes Sample rate 48 kHz Ports & interfacesUSB port* No HDMI ports quantity 1 Number of HDMI outputs 1 Ports & interfacesBNC ports quantity 1 PowerPower consumption 3 W SoftwareWindows operating systems supported Windows 10 x64, Windows 11 Mac compatibility Yes Mac operating systems supported Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura Linux operating systems supported Yes Operational conditionsOperating temperature (T-T) 5 - 40 °C Storage temperature (T-T) -20 - 45 °C Operating relative humidity (H-H) 0 - 90% Weight & dimensionsDepth 92 mm Weight 57 g |
