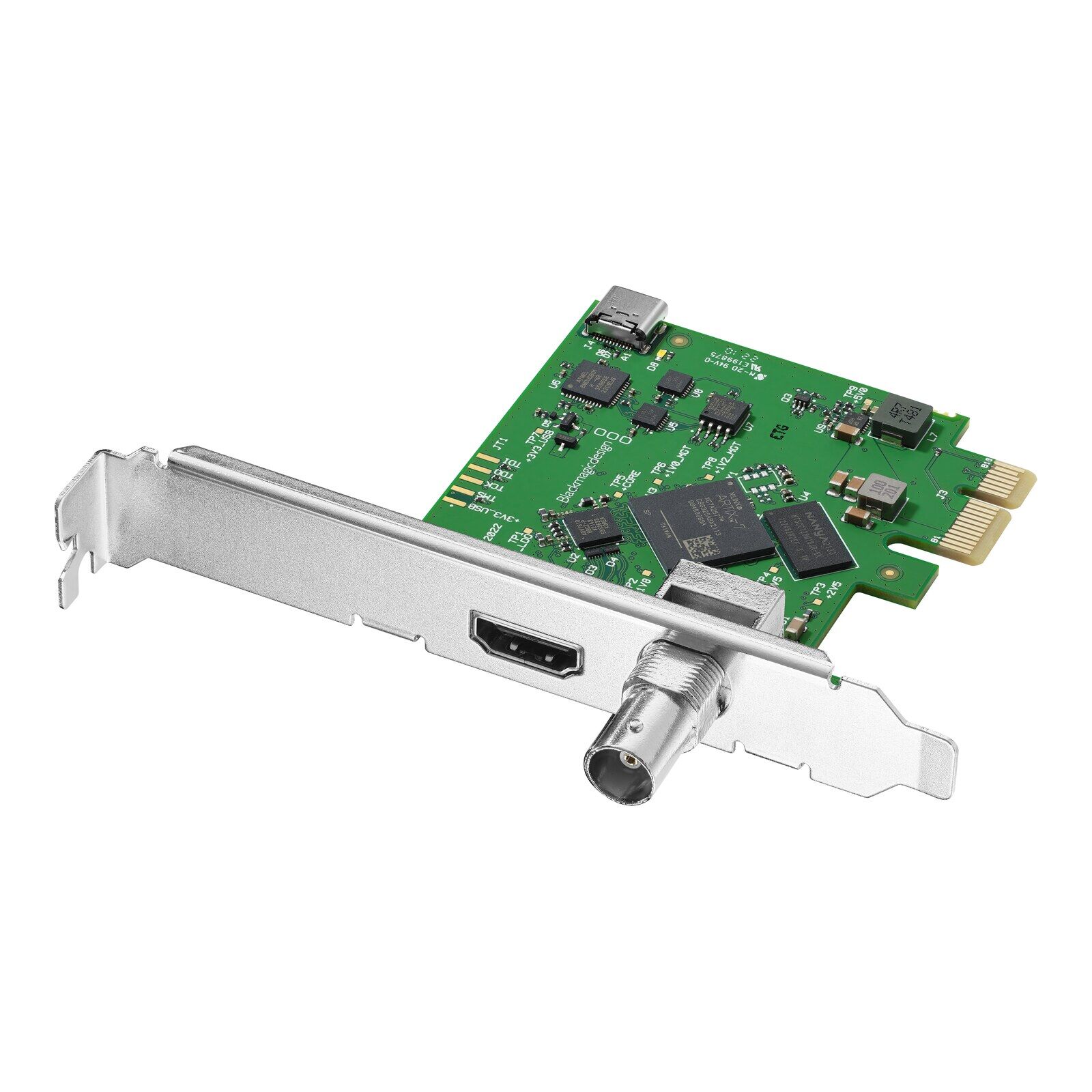

Blackmagic Design DeckLink Mini Recorder HD – 3G-SDI and HDMI PCIe capture card
GTIN: 9338716007923
DeckLink Mini Recorder HD: low profile PCIe card with 3G-SDI and HDMI 2.0 inputs for capturing SD and HD up to 1080p60 and 2K DCI 60p.
Commercial guarantee of durability offered by the producer at no extra cost: 3 years. See the GARAN label
Blackmagic Design DeckLink Mini Recorder HD – 3G-SDI and HDMI PCIe capture card
DeckLink Mini Recorder HD is the simplest and most affordable Blackmagic capture card for bringing an HD signal into your computer: it has one 3G-SDI input and one HDMI 2.0 input and records all SD and HD formats up to 1080p60, plus 2K DCI at 60p.
What the DeckLink Mini Recorder HD is for
It suits streaming and software switching with one camera or switcher, recording events and lessons, and capture for editing. It is compatible with virtually all SD and HD equipment and the most popular software, including DaVinci Resolve.
Inputs and formats
1 x 10-bit SDI input switchable SD/HD (270 Mb, 1.5G and 3G) and 1 x HDMI 2.0 type A input. Power consumption: 3 W.
Installation and compatibility
It uses a 1 lane second generation PCI Express slot and also works in wider slots. It runs on Windows, Linux and Mac computers with PCI Express slots; the Desktop Video driver includes Media Express, Disk Speed Test, LiveKey and the setup utility, and the free SDK lets you build the card into your own applications.
Mini Recorder HD or Mini Recorder 4K?
If your work stays in HD, Mini Recorder HD is enough and uses a 1 lane slot. DeckLink Mini Recorder 4K is for Ultra HD up to 2160p30, HDR and 12-bit 4:4:4 color.
bmdonline.eu is an authorized Blackmagic Design reseller: the official extended warranty is also available for this product.
Technical specifications
Connections
| SDI Video Input | 1 x 10-bit SD/HD switchable |
|---|---|
| SDI Rates | 270Mb, 1.5G, 3G |
| SDI Audio Input | 16 channels embedded in SD/HD |
| HDMI Video Input | 1 x HDMI 2.0 type A connector |
| HDMI Audio Input | 8 channels embedded in SD/HD |
| Computer Interface | PCI Express 1 lane generation 2, compatible with 1, 4, 8 and 16 lane PCI Express slots. |
Software
| Software Included | Media Express, Disk Speed Test, LiveKey, Blackmagic Desktop Video Utility and Blackmagic driver on Mac OS and Windows. Media Express, Blackmagic Desktop Video Utility and Blackmagic driver on Linux. |
|---|---|
| Internal Software Upgrade | Firmware built into software driver. Loaded at system start or via updater software. |
| Physical Installation | PCI Express 1 lane generation 2, compatible with 1, 4, 8 and 16 lane PCI Express slots on Mac OS, Windows and Linux. Mac OS systems require a Mac Pro computer with PCI Express slots. Please check the Support pages to see the full system requirements. |
SDI Video Standards
| SDI Video Standards | 525i59.94 NTSC, 625i50 PAL |
|---|---|
| 2K Video Standards | 2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI, 2Kp50 DCI, 2Kp59.94 DCI, 2Kp60 DCI 2KPsF23.98 DCI, 2KPsF24 DCI, 2KPsF25 DCI, 2KPsF29.97 DCI, 2KPsF30 DCI |
| SDI Compliance | SMPTE 259M, SMPTE 274M, SMPTE 296M, SMPTE 424M and SMPTE 425M A/B |
| SDI Metadata Support | RP 188/SMPTE 12M-2 and closed captioning. |
| SDI Audio Sampling | Television standard sample rate of 48 kHz and 24-bit. |
| SDI Video Sampling | 4:2:2, 4:4:4 |
| SDI Color Precision | 8, 10, 12-bit RGB 4:4:4 up to 1080p30, and 8, 10-bit YUV 4:2:2 in all standards. |
| SDI Color Space | REC 601, REC 709 and REC 2020 |
| Multiple Rate Support | SDI video connection is switchable between SD and HD. |
HDMI Video Standards
| SDI Video Standards | 525i59.94 NTSC, 625i50 PAL |
|---|---|
| HD Video Standards | 720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080i50, 1080i59.94, 1080i60 |
| HDMI Audio Sampling | Television standard sample rate of 48 kHz and 24 bit. |
| HDMI Video Sampling | 4:2:2 and 4:4:4 |
| HDMI Color Precision | 8-bit RGB 4:4:4, 8-bit YUV 4:4:4 and 12-bit YUV 4:2:2 in all standards. |
| HDMI Configuration | HDMI 2.0 supports Deep Color. |
| HDMI Color Space | REC 601, REC 709 and REC 2020 |
| Multiple Rate Support | HDMI video connection is switchable between SD and HD. |
| Copy Protection | HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content. |
Processing
| Colorspace Conversion | Hardware based real time. |
|---|
Power Requirements
| Power Consumption | 3 W |
|---|
Environmental Specifications
| Operating Temperature | 5° to 40° C (32° to 104° F) |
|---|---|
| Storage Temperature | -20° to 45° C (-4° to 113° F) |
| Relative Humidity | 0% to 90% non-condensing |
| Product Condition | New |
|---|---|
| Manufacturer | Blackmagic Design |
| manufacturer code | BDLKMINIREC3G |
| Ean | 9338716007923 |
| Taric Code | 8471800000 |
| Warranty | 3 Year Limited Manufacturer's |
| Product specifications | PerformanceProduct colour* Green Internal* Yes Host interface* PCIe Video capture resolution (max) 2560 x 1440 pixels VideoAnalog signal format system* NTSC, PAL Video codecs AVC-Intra, AVCHD, Canon XF MPEG2, Digital SLR, DV-NTSC, DV-PAL, DVCPRO50, DVCPROHD, DPX, HDV, HEVC, XDCAM EX, XDCAM HD, XDCAM HD422, DNxHR & DNxHD, Apple ProRes 4444, Apple ProRes Supported video modes 720p, 1080i, 1080p AudioAudio support Yes Sample rate 48 kHz Ports & interfacesUSB port* No HDMI ports quantity 1 HDMI in 1 BNC ports quantity 1 PowerPower consumption 3 W SoftwareWindows operating systems supported Windows 10 x64, Windows 11 Mac compatibility Yes Mac operating systems supported Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura Linux operating systems supported Yes Operational conditionsOperating temperature (T-T) 5 - 40 °C Storage temperature (T-T) -20 - 45 °C Operating relative humidity (H-H) 0 - 90% Weight & dimensionsDepth 92 mm Weight 56 g |
| Essential qualities |
|
| Product colour | Green |
| Internal | Yes |
| Host interface | PCIe |
| Analog signal format system | NTSC, PAL |
| USB port | No |
| Maximum resolution | HD |
| SDI rate | 3G |
| SD support (PAL/NTSC) | Yes |
| Function | Capture |
| Computer interface | PCI Express |
| Video connection type | SDI, HDMI |
| Independent channels | 1 |
| Channel configuration | Inputs only |
| PCI Express slot (lanes) | 1 |
| Format | Internal card |
| Operating systems | macOS, Windows, Linux |
