Blackmagic 2110 IP UpDownCross 12G

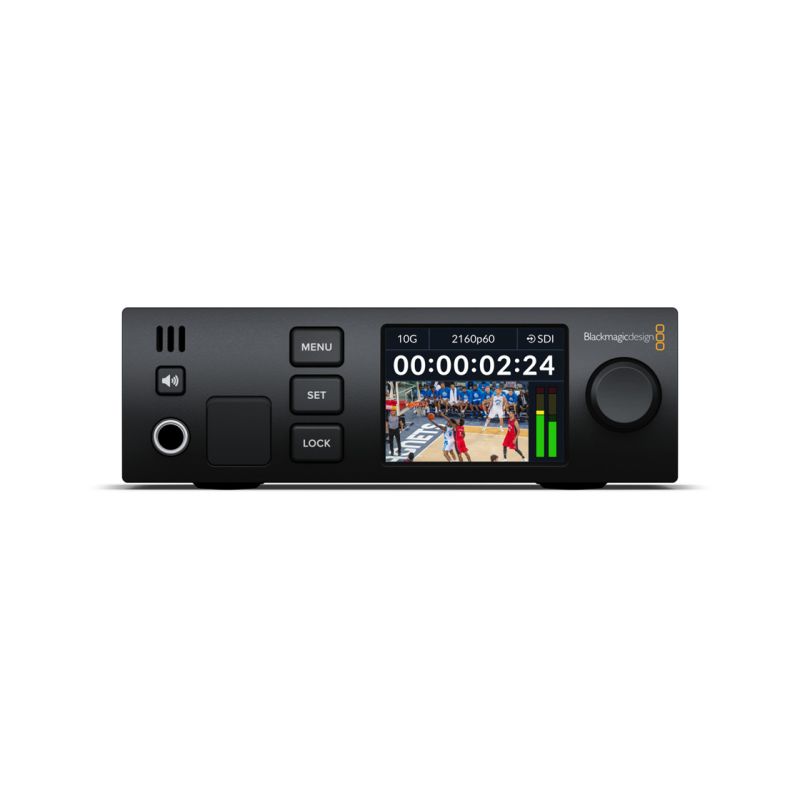

The Blackmagic 2110 IP UpDownCross 12G is a professional standards converter designed to deliver high-quality conversion between SMPTE-2110 IP video, 12G-SDI, and HDMI signals. It enables seamless bidirectional transformation across all SD, HD, and Ultra HD formats, ensuring full compatibility between IP-based workflows and traditional broadcast infrastructure. The unit features a reference input for signal resynchronization, as well as redundant power support for reliable operation. The front panel includes an LCD display, built-in speaker, and a USB port that also functions as an HD webcam output, making it ideal for computer-based video workflows and conferencing software.
Connections
| SDI Inputs | 1 |
| SDI Loop Outputs | 1 |
| SDI Outputs | 2 |
| SDI Rates | SD, 1.5G, 3G, 6G and 12G |
| HDMI 2.0 Inputs | 1 |
| HDMI 2.0 Outputs | 1 |
| SMPTE 2110 I/O | 1 x 10G Ethernet |
| ST 2110 IP Audio I/O | 16 channels embedded audio on ST‑2110 IP video via 10G Ethernet |
| SDI Audio Inputs | 16 embedded audio channels |
| SDI Audio Outputs | 16 embedded audio channels |
| HDMI Audio Inputs | 8 embedded audio channels |
| HDMI Audio Outputs | 8 embedded audio channels |
| Analog Audio Output | 1 x 6.35 mm headphone jack |
| Webcam Output | 1 x USB-C up to 1080p60 |
| Reference In | 1 |
| Reference Out | 1 |
| Ethernet | 10/100/1000/10G BASE-T for ST 2110 IP video, config, and updates |
| Computer Interface | USB-C for webcam out, updates, and configuration |
Video Standards
| SD Video Standards | 525i59.94 NTSC, 625i50 PAL |
| 2K Video Standards | 720p50/59.94/60, 1080i50/59.94/60, 1080p23.98–60, PsF23.98–30 |
| Ultra HD Standards | 2160p23.98–60 |
| 4K DCI Standards | 4Kp23.98–60 DCI |
| SMPTE Compliance | SMPTE 259M, 274M, 292M, 296M, 424M, 425M A/B, 2036‑1, 2048‑1, 2081‑10/11/12, 2082‑10/11/12, ST2108‑1 |
| SDI Metadata Support | RP 188/SMPTE 12M-2, closed captions |
| Audio Sampling | 48 kHz at 24-bit |
| Color Precision | 8/10-bit RGB 4:4:4 up to 1080p30, 8/10-bit YUV 4:2:2 all formats |
| Color Space | Rec. 601, Rec. 709, Rec. 2020 |
| HDMI HD Standards | 720p50/59.94/60, 1080i50/59.94/60, 1080p23.98–60 |
| HDMI Ultra HD Standards | 2160p23.98–62 |
| HDMI 4K Standards | 4Kp23.98–60 DCI |
| HDMI Color Precision | 4:2:2 |
| HDMI Color Space | YUV |
Audio
| Local Audio Monitoring | Built-in speaker with control button and 6.35 mm headphone output |
IP Video Conformance
| SMPTE 2110-20 | Uncompressed video, IGMP v2 |
| SMPTE 2110-21 | Sender: Narrow / Receiver: Narrow, Wide Synchronous, Asynchronous |
| SMPTE 2110-30 | PCM audio, Conformance level: Level C |
| SMPTE 2110-40 | Full ancillary data access, including RP 188, captions, and static HDR metadata |
| Codec | Blackmagic IP10 codec for converting 2160p59.94/60 to 10G 2110 IP video |
PTP Protocol
| Precision Time Protocol | IEEE 1588-2008 (PTP v2), ST 2059-1, ST 2059-2 |
NMOS
| IS-04 | v1.3.2, peer-to-peer via mDNS/DNS‑SD |
| IS-05 | v1.1.2 |
| BCP-002-01 | Natural Grouping |
| BCP-004-01 | Receiver capabilities |
Control
| Built-in Control Panel | 3 buttons, spin knob, and 2.2-inch color display |
| External Control | RJ-45 10Gb/s Ethernet and USB-C. REST API over Ethernet |
Display
| Display | Built-in 2.2-inch LCD for monitoring video, audio, and menu navigation |
Operating Systems
| macOS | macOS 13.0 Ventura, macOS 14.0 Sonoma or later |
| Windows | Windows 10 and 11 |
Power Requirements
| Power Supply | 1 x internal 100 - 240V AC 50/60Hz |
| Power Inputs | 1 x IEC C14 socket for AC power, 1 x 12V DC input |
| Power Consumption | 30 W max |
Environmental Specifications
| Operating Temperature | 0° C to 40° C (32° – 104° F) |
| Storage Temperature | -20° C to 45° C (-4° – 113° F) |
| Relative Humidity | 0% to 90% non-condensing |
Included Items
| Package Contents | Blackmagic 2110 IP UpDownCross 12G, welcome wallet with QR code for software download |
Warranty
| Manufacturer Warranty | Limited 1-year warranty |
