Blackmagic Design GPI and Tally Interface – Tally and GPI interface for ATEM switchers
GTIN: 9338716001327

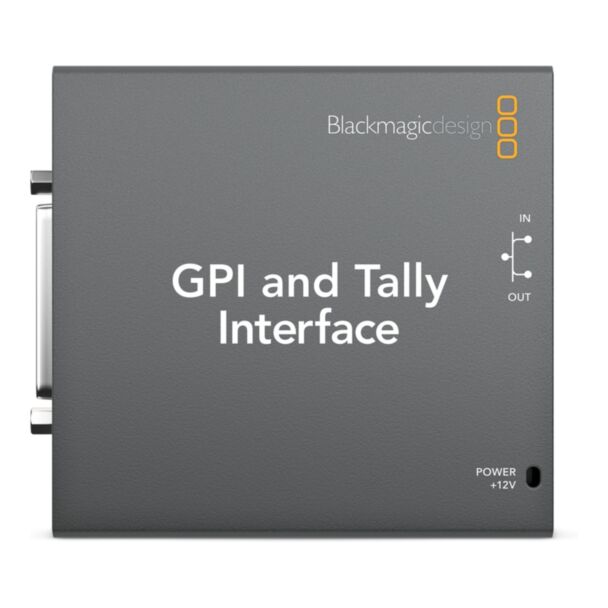

GPI and Tally Interface: interface adding 8 contact closure tally outputs and 8 GPI inputs to ATEM switchers over Ethernet, for tally lights on cameras, monitors and recorders.
Blackmagic Design GPI and Tally Interface – Tally and GPI interface for ATEM switchers
Blackmagic GPI and Tally Interface adds tally to ATEM switchers: with 8 contact closure tally outputs you send a tally signal to cameras, replay machines and monitors so everyone knows which camera is on air.
What the GPI and Tally Interface is for
It connects over Ethernet to the ATEM switcher; for more outputs, connect several interfaces. The 8 opto-isolated GPI inputs also let external devices trigger switcher functions.
Connections and power
25-pin D connector with 8 opto-isolated inputs and 8 relay outputs (max 30V, 1A), 10/100 Ethernet with loop, USB 2.0 for setup and updates via ATEM Switcher Utility. 12V supply included with international adapters.
bmdonline.eu is an authorized Blackmagic Design reseller: the official extended warranty is also available for this product.
Technical specifications
Connections
| Contact Closure | 25 pin D-type connector providing 8 opto isolated inputs and 8 relay contact closure outputs. |
|---|---|
| Computer Interface | 1 x USB 2.0 high speed interface for configuration and firmware updates. |
| Inputs | Optical isolators triggered by connection to ground. Max 5V at 14mA. |
| Outputs | Mechanical relay contact closure to ground. Max 30V at 1A. |
| Ethernet | 10/100 BaseT with loop through for connecting to other ethernet enabled equipment. |
Software
| Software Included | Configured via ATEM Switcher Utility. |
|---|---|
| Internal Software Upgrade | Firmware built into software driver. Loaded at system startup or via updater software. |
Power Requirements
| Power Supply | 12V power supply included with international socket adaptors for all countries. |
|---|
Environmental Specifications
| Operating Temperature | 0° to 40° C (32° to 104° F) |
|---|---|
| Storage Temperature | -20 - 60 degrees celsius |
| Relative Humidity | Up to 95% |
| Product Condition | New |
|---|---|
| Manufacturer | Blackmagic Design |
| manufacturer code | SWTALGPI8 |
| Ean | 9338716001327 |
| Taric Code | 8543709099 |
| Warranty | 12 Months Limited Manufacturer's Warranty |
| Product specifications | Ports & interfacesUSB 2.0 ports quantity 1 DesignInternal* No Product colour Black PowerPower supply type DC Output voltage 12 V Operational conditionsOperating temperature (T-T) 0 - 40 °C Storage temperature (T-T) -20 - 60 °C Operational conditionsOperating relative humidity (H-H) 0 - 95% System requirementsWindows operating systems supported Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64 Mac operating systems supported Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks Weight & dimensionsWidth 90 mm Depth 96 mm Height 23 mm Weight 120 g |
| Internal | No |
