Blackmagic Design HDLink Pro DVI SDI to DVI converter

Blackmagic HDLink Pro DVI

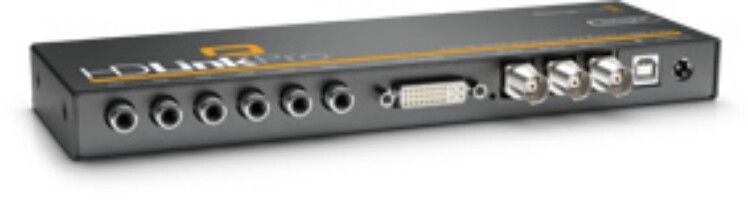

HDLink Pro DVI connects SDI video directly to DVI-D LCD computer monitors and HDMI displays for pixel for pixel monitoring: each pixel of the HD or 2K SDI signal is mapped directly to the pixels of the display. With dual link 3 Gb/s SDI it handles SD, HD and 2K, including HD-SDI 4:4:4.

Any valid signal on the SDI input is sent to the DVI/HDMI output and the SDI loop output. Built-in 3D and 1D lookup tables, loaded via USB with the HDLink software, calibrate the display or simulate film looks, and smaller formats can be scaled to fill the screen. Audio de-embedded from SDI is available on 6 analog outputs. Power comes from the included 12 V supply.

Key features

• Dual link 3 Gb/s SDI input for SD, HD and 2K, 4:2:2 and 4:4:4
• DVI-D or HDMI monitor output and SDI loop output
• 3D and 1D lookup tables (.cube, .3dl, .itx import)
• Scaling of smaller formats to fill DVI displays
• 6-channel analog audio output
• USB 2.0 for settings and updates, 12 V power
