Blackmagic Design HDLEXT-DVI AV extender AV repeater Black
GTIN: 9338716000634
Discontinued product
This product is no longer manufactured and is not available for purchase. The page stays online as a reference for specifications and compatibility.
See the current products in: Accessories & Spare Parts
Converter from DVI-D to SD/HD-SDI with 3.5 mm audio input, for extending computer monitors over SDI cables and SDI routers or for broadcast graphics output, USB powered.

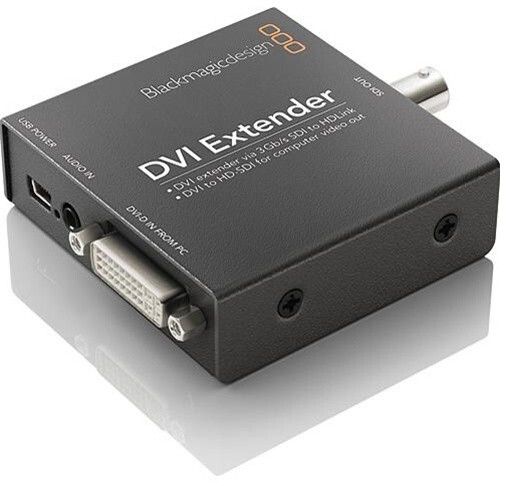

Blackmagic DVI Extender
DVI Extender carries the DVI-D output of a computer over SDI cables, so computer displays can be placed anywhere in a facility or routed to several monitors through a 3 Gb/s SDI router. At the other end, an HDLink Pro or HDLink Optical Fiber converts the signal back for the monitor, so noisy computers can be moved out of client rooms.
It also works as a DVI to SD/HD-SDI video converter: in Video Output mode it outputs NTSC, PAL, 720 HD or 1080 HD SDI video, useful for real time broadcast graphics, digital signage and presentations. Computer audio from the 3.5 mm input jack is embedded in the SDI signal. The connection is fully digital, pixel for pixel, and the unit is powered from any USB port, which also loads new formats.
Key features
- DVI-D input to 3 Gb/s SDI output
- Extender mode for computer monitors via SDI and SDI routers, with HDLink at the receiving end
- Video Output mode: NTSC, PAL, 720p and 1080 HD SDI
- 3.5 mm audio input embedded in SDI
- Powered via USB; format updates via USB
Specifications
- Video input: 1 x DVI-D
- Video output: SDI (BNC)
- Audio input: 1 x 3.5 mm mini jack
- USB: 1 x USB 2.0
| Product Condition | New |
|---|---|
| Manufacturer | Blackmagic Design |
| manufacturer code | HDLEXT-DVI |
| Ean | 9338716000634 |
| Type | AV repeater |
| Maximum resolution | 1920 x 1080 pixels |
