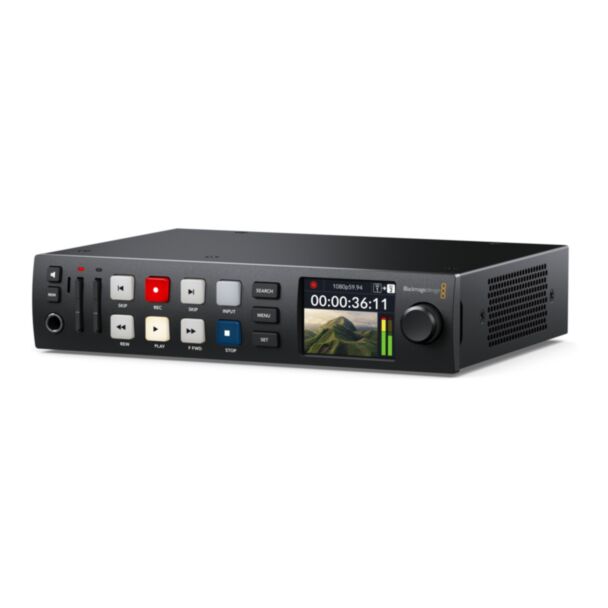

Blackmagic Design HyperDeck Studio HD Plus – 6G-SDI rack recorder with fill and key
GTIN: 9338716007121
HyperDeck Studio HD Plus: 6G-SDI broadcast recorder and player with ProRes up to Ultra HD 30p, fill and key outputs, HDR, monitor output and RS-422 control.
Blackmagic Design HyperDeck Studio HD Plus – 6G-SDI rack recorder with fill and key
HyperDeck Studio HD Plus has all the features of the Mini in a larger size with more controls and connections: 6G-SDI lets it record and play ProRes up to Ultra HD 30 fps, with SDI loop output and HDR support.
What the HyperDeck Studio HD Plus is for
The two 6G-SDI outputs allow fill and key playback up to 1080p60, for graphics and titles over the program. It is used in control rooms and TV studios as a master recorder and clip player. HyperDeck Studio models record to SD cards and, depending on the model, to SSDs or USB-C disks, in standard ProRes, DNx and H.264 files (H.265 for Ultra HD on the 4K Pro) that can be edited immediately without conversion. They are controlled from the front panel, via RS-422 like broadcast decks or over the network with the HyperDeck Ethernet protocol.
Connections, media and power
SDI input with loop, 2 6G-SDI outputs, 3G-SDI monitor output with overlays, HDMI in and out, 2 SD slots, USB-C for external disks, 1G Ethernet, RS-422 in and out (front panel buttons are sent to the RS-422 output), front headphones and speaker, panel with 13 buttons and 2.2" display. Internal 100-240V supply and 12V DC on 4-pin XLR, 100 W maximum.
How to choose
Studio HD Mini (3G-SDI, compact), Studio HD Plus (6G-SDI, fill and key), Studio HD Pro (full rack width with SSD), Studio 4K Pro (12G-SDI, 10G Ethernet, dual power supply). For the desktop with touchscreen there are the HyperDeck Shuttle models.
bmdonline.eu is an authorized Blackmagic Design reseller: the official extended warranty is also available for this product.
Technical specifications
Connections
| SDI Video Inputs | 1 |
|---|---|
| SDI Video Outputs | 2 |
| SDI Monitor Outputs | 1 |
| SDI Rates | 270Mb, 1.5G, 3G, 6G. |
| HDMI 2.0 Video Inputs | 1 |
| HDMI 2.0 Video Outputs | 1 |
| Built in Speaker | Mono |
| Audio Output | 1 x 6.35 mm headphone jack. |
| Screen | 2.2 inch LCD. |
| Timecode Connections | 1 x BNC In, 1 x BNC Out. |
| Reference Connections | 1 x BNC In, 1 x BNC Out. Tri-Sync or Black Burst. |
| SDI Audio Inputs | 16 channels embedded audio. |
| SDI Audio Outputs | 16 channels embedded audio. |
| HDMI Audio Inputs | 8 channels embedded audio. |
| HDMI Audio Outputs | 8 channels embedded audio. |
| Remote Control | 1 x RS-422 In, 1 x RS-422 Out. |
| Recorder Configuration | Via user interface or Blackmagic HyperDeck Ethernet Protocol. |
| Ethernet | 1Gb/s |
| Computer Interface | 1 x USB Type-C 3.0 (up to 5Gb/s) for external drive recording, webcam out, software configuration and updates. |
Standards
| SD Video Standards | 525i59.94 NTSC, 625i50 PAL |
|---|---|
| HD Video Standards | 720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30 |
| 2K DCI Video Standards | 2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI |
| Ultra HD Video Standards | 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30 |
| 4K DCI Video Standards | 4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI |
| SDI Compliance | SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M level A and B, SMPTE 2081‑1, SMPTE 2081‑10, SMPTE 2084 and SMPTE 2108‑1. |
| SDI Metadata Support | HD RP188 and closed captioning CEA‑708. HDR Metadata supported on SDI. |
| Supported HDMI Formats | 525i59.94 NTSC, 625i50 PAL, 720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI, 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI |
| Audio Sampling | Television standard 24‑bit, 48 kHz sample rate. |
| Video Sampling | 4:2:2 YUV |
| Color Precision | 10‑bit |
| Color Space | REC 601, REC 709, REC 2020. 33 point 3D LUTS can be applied to SDI monitor out. |
| HDR Support | Hybrid Log‑Gamma, ST2084 300, ST2084 500, ST2084 800, ST2084 1000, ST2084 2000, ST2084 4000, ST2084 |
| Multi Rate Support | Auto detection of SD, HD and 6G‑SDI. |
| Copy Protection | HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content. |
Media
| Media | 2 x SD card slots 1 x USB-C 3.0 expansion port for external recording of SD, HD, 2K DCI, Ultra HD and 4K DCI. |
|---|---|
| Media Type | UHS-I and UHS-II SD cards. |
| Media Format | Can format media to ExFAT (Windows/Mac) or HFS+ (Mac) file systems. |
Control
| Built in Control Panel | 13 buttons for transport and device control with search dial and 2.2 inch color display. |
|---|---|
| External Control | RS-422 deck control, SDI start/stop, timecode run. Includes Blackmagic HyperDeck Ethernet Protocol. Supports remote FTP file upload. |
Power Requirements
| Power Supply | 1 x Internal 100 - 240V AC 50/60Hz. 1 x 4 pin XLR 12V DC In for external power supply or battery use. |
|---|---|
| Power Usage | 100 W max. |
Environmental Specifications
| Operating Temperature | 0° to 40° C (32°to 104° F) |
|---|---|
| Storage Temperature | -20° to 60° C (-4° to 140° F) |
| Relative Humidity | 0% to 90% non‑condensing |
What's Included
| HyperDeck Studio HD Plus |
| Product Condition | New |
|---|---|
| Manufacturer | Blackmagic Design |
| manufacturer code | HYPERD/ST/DCHP |
| Ean | 9338716007121 |
| Taric Code | 8521900000 |
| Warranty | 12 months |
| Product specifications | PerformanceCompatible memory cards SD Product colour* Black Display 2.2 USB connectivity Yes Ports & interfacesVideo input channels 2 channels BNC input ports 2 BNC output ports 2 HDMI ports quantity 2 Audio input 16 x SDI, 8 x HDMI Audio output 16 x SDI, 8 x HDMI Video in 1 x SDI, 1 x HDMI Video out 1 x SDI, 2 x HDMI PowerPower supply type AC AC input voltage 100 - 240 V DC voltage 12 V Power consumption (max) 100 W PowerAC input frequency 50 - 60 Hz Weight & dimensionsWidth 210 mm Depth 176 mm Height 44 mm Weight 1.15 kg DisplayBuilt-in display Yes Display type LCD Display diagonal 5.59 cm (2.2") Operational conditionsOperating temperature (T-T) 0 - 40 °C Storage temperature (T-T) -20 - 60 °C Storage relative humidity (H-H) 0 - 90% Technical detailsWarranty period 1 year(s) |
| Essential qualities |
|
| Product colour | Black |
| Video input channels | 2 channels |
| Device type | Recorder |
| Maximum resolution | Ultra HD |
| SDI rate | 6G |
| SD support (PAL/NTSC) | Yes |
| Video connection type | SDI, HDMI |
| Recording media | USB-C disk, SD UHS-II |
| Screen | 2.2" |
| Network | 1G Ethernet |
| Power | 12 V, AC mains |
