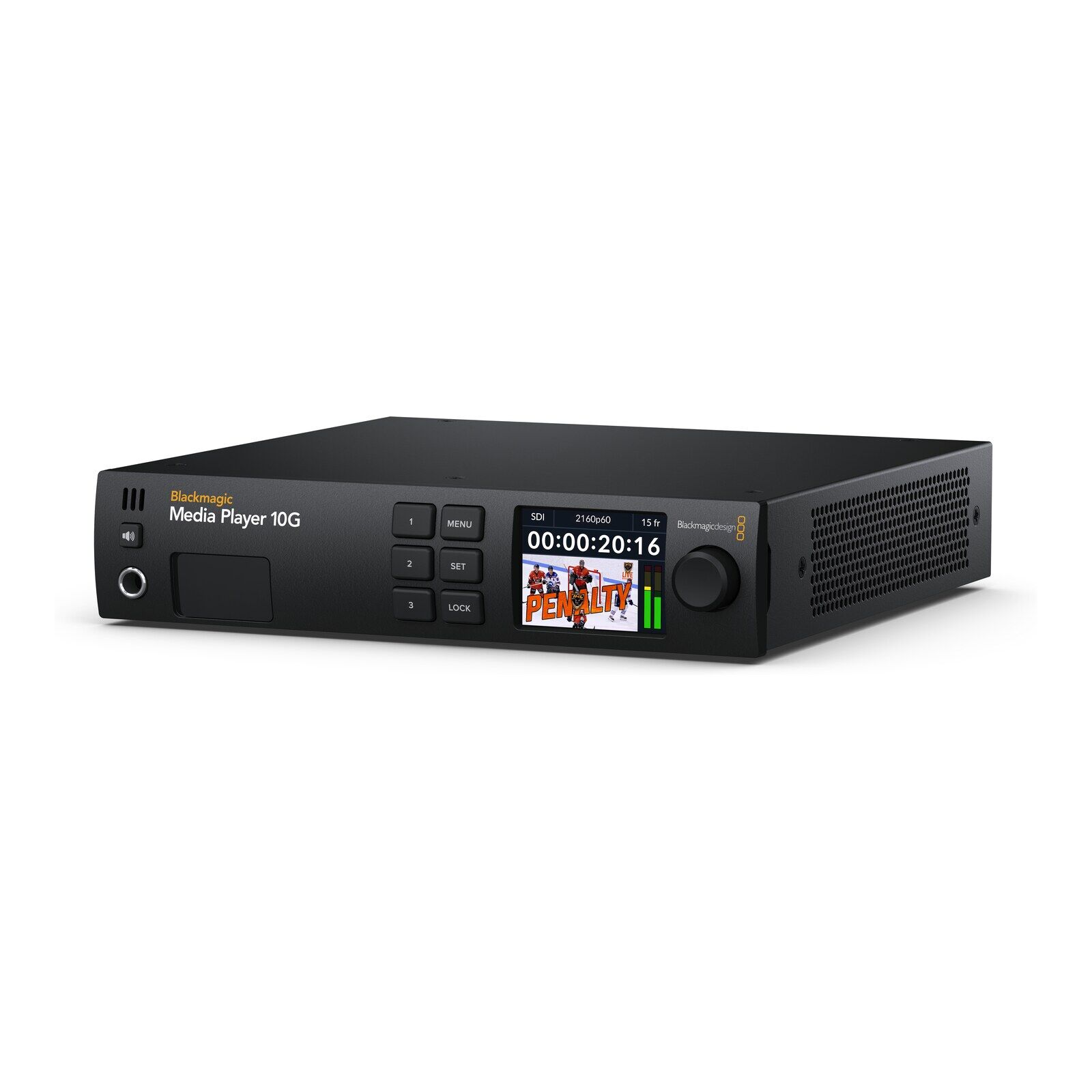

Blackmagic Design Media Player 10G – 12G-SDI Thunderbolt player and capture for DaVinci Resolve
GTIN: 9338716008999
In stock
SKU
BMD-BDLKULSTMP010G
Special Price €937.20 €768.20 Regular Price €1,018.70
Media Player 10G: Thunderbolt capture and playback unit with 12G-SDI fill and key outputs, extended desktop and 10G Ethernet, for using DaVinci Resolve as player and replay.
Blackmagic Design Media Player 10G – 12G-SDI Thunderbolt player and capture for DaVinci Resolve
Blackmagic Media Player 10G is a capture and playback solution with the latest broadcast technology: dual 12G-SDI outputs for fill and key, 12G-SDI capture, extended desktop and 10G Ethernet, all over a single Thunderbolt connection.
What the Media Player 10G is for
It lets you use DaVinci Resolve as a media player and replay system for live production and broadcast; it can also be controlled via Sony compatible RS-422 and Advanced Media Protocol.
Connections
12G-SDI input, SDI fill, key, loop, extended desktop and monitor outputs, HDMI extended desktop and monitor outputs, 2 XLR audio outputs and 6.35 mm headphones, RS-422, 10G Ethernet, Thunderbolt 3 (Mac, Windows and Linux), USB-C for keyboard and mouse, panel with 6 buttons, knob and 2.2" display. Internal 100-240V supply, 85.2 W.
How to choose
For simple capture and playback from a computer there are DeckLink cards and UltraStudio units.
bmdonline.eu is an authorized Blackmagic Design reseller: the official extended warranty is also available for this product.
Technical specifications
Connections
| SDI Video Inputs | 1 |
|---|---|
| SDI Fill Outputs | 1 |
| SDI Key Outputs | 1 |
| SDI Loop Outputs | 1 |
| SDI Extended Desktop Outputs | 1 |
| SDI Monitor Outputs | 1 |
| SDI Rates | 270Mb, 1.5G, 3G, 6G, 12G. |
| HDMI Extended Desktop Outputs | 1 |
| HDMI Monitor Outputs | 1 |
| Analog Audio Outputs | 2 channels of professional balanced analog audio with 3-pin XLR connectors. 1 x 6.35 mm headphone jack. |
| SDI Audio Inputs | 16 Channels embedded in HD and Ultra HD. |
| SDI Audio Outputs | 16 Channels embedded in HD and Ultra HD. |
| HDMI Audio Outputs | 8 Channels embedded in HD and Ultra HD. |
| Device Control | 1 x Sony™ compatible RS-422 deck control input port. |
| USB | 1 x USB‑C 3.1 Gen 1 (up to 5 Gb/s). |
| Computer Interface | 1 x Thunderbolt™ 3 (Mac OS, Windows and Linux) 1 x USB‑C for keyboard, mouse and other USB devices |
| Ethernet | 1 x 10Gb/s RJ‑45 connector supporting 1000/10G BASE‑T. |
Supported Codecs
| Video Codecs | AVC-Intra, AVCHD, Canon XF MPEG2, Digital SLR, DV-NTSC, DV-PAL, DVCPRO50, DVCPROHD, DPX, HDV, HEVC, XDCAM EX, XDCAM HD, XDCAM HD422, DNxHR & DNxHD, Apple ProRes 4444, Apple ProRes 422 HQ, Apple ProRes 422, Apple ProRes LT, Apple ProRes 422 Proxy, Uncompressed 8-bit 4:2:2, Uncompressed 10-bit 4:2:2, Uncompressed 10-bit 4:4:4. |
|---|
Software
| Software Included | Media Express, Disk Speed Test, LiveKey, Blackmagic Desktop Video Utility and Blackmagic driver on Mac OS and Windows. Media Express, Blackmagic Desktop Video Utility and Blackmagic driver on Linux. |
|---|---|
| Internal Software Upgrade | Firmware built into software driver. Software driver loads upgrades at system start or via updater software. |
SDI Video Standards
| HD Video Standards | 720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60 |
|---|---|
| Ultra HD Video Standards | 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60 |
| SDI Compliance | SMPTE 259M, SMPTE 292M, SMPTE 292M, SMPTE 424M, SMPTE 425M level A and B, SMPTE 2081-1, SMPTE 2081-10, SMPTE 2082-1, SMPTE 2082-10, SMPTE 2084 and SMPTE ST2108-1. |
| SDI Metadata Support | RP 188/SMPTE 12M-2 and closed captioning. |
| Multiple Rate Support | SDI video connections are switchable between HD and Ultra HD |
| SDI Audio Sampling | Television standard sample rate of 48 kHz and 24-bit. |
| SDI Video Sampling | 4:2:2, 4:4:4 |
| SDI Color Precision | 8, 10, 12-bit RGB 4:4:4 in modes up to 2160p30 and 8, 10-bit YUV 4:2:2 in all modes. |
| SDI Color Space | REC 601, REC 709 and REC 2020 |
| HDR Support | HDR static metadata packing, HLG and PQ transfer characteristics. |
HDMI Video Standards
| HD Video Standards | 720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60 |
|---|---|
| Ultra HD Video Standards | 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60 |
| HDMI Audio Sampling | Television standard sample rate of 48 kHz and 24-bit. |
| HDMI Video Sampling | 4:4:4, 4:2:2 and 4:2:0 |
| HDMI Color Precision | 8, 10 and 12-bit |
| HDMI Color Space | REC 601, REC 709 and REC 2020 |
| HDR Support | HDR static metadata packing, HLG and PQ transfer characteristics. |
| HDR Configuration | HDMI 2.0b supports Deep Color and HDR. Automatically configures to connected display. |
| Multiple Rate Support | HDMI video connections are switchable between HD and Ultra HD. |
Control
| Built in Control Panel | 6 buttons, spin knob and 2.2 inch color display for menu and settings. Front speaker on/off button. |
|---|---|
| External Control | RS-422 deck control input for remote control of software. Also supports Advanced Media Protocol. |
Power Requirements
| Power Supply | 1 x Internal 100 - 240V AC 50/60Hz with IEC C14 socket. |
|---|---|
| Power Usage | 85.2 W |
Environmental Specifications
| Operating Temperature | 5° to 40° C (41° to 104° F) |
|---|---|
| Storage Temperature | -20° to 45° C (-4° to 113° F) |
| Relative Humidity | 0% to 90% non‑condensing |
| Product Condition | New |
|---|---|
| Manufacturer | Blackmagic Design |
| manufacturer code | BDLKULSTMP010G |
| Ean | 9338716008999 |
| Taric Code | 8543709099 |
| Warranty | 3 years limited |
| Product specifications | PerformanceProduct colour* Black Internal* No Host interface* Thunderbolt Video capture resolution (max) 3840 x 2160 pixels High Dynamic Range (HDR) supported Yes High Dynamic Range (HDR) technology Hybrid Log-Gamma (HLG) Country of origin Indonesia VideoAnalog signal format system* NTSC, PAL Supported video modes 720p, 1080p, 2160p, 4320p AudioChannels quantity 16 channels File formatsVideo compression formats AVC, AVCHD, HDV, HEVC, MPEG2 Ports & interfacesUSB port* Yes USB connector type USB Type-C USB version 3.2 Gen 1 (3.1 Gen 1) USB ports quantity 2 Number of HDMI outputs 2 HDMI version 2.0 Headphone outputs 1 RJ-45 ports quantity 1 Ports & interfacesBNC ports quantity 6 Digital audio optical in 1 PowerPower supply type* AC AC input voltage 100 - 240 V AC input frequency 50/60 Hz Input voltage 100 - 240 V SoftwareWindows operating systems supported Windows 10, Windows 11 Mac compatibility Yes Operational conditionsOperating temperature (T-T) 5 - 40 °C Storage temperature (T-T) -20 - 45 °C Operating relative humidity (H-H) 0 - 90% Weight & dimensionsWidth 210 mm Depth 228 mm Height 44.2 mm Weight 1.3 kg Other featuresVideo in 1 x SDI Video out 1 x SDI Fill, 1 x SDI Key, 1 x SDI Loop, 1 x SDI Extended Desktop, 1 x SDI Monitor, 1 x HDMI Extended Desktop, 1 x HDMI Monitor |
| Essential qualities |
|
| Product colour | Black |
| Internal | No |
| Host interface | Thunderbolt |
| Analog signal format system | NTSC, PAL |
| Power supply type | AC |
| USB port | Yes |
| Maximum resolution | Ultra HD |
| SDI rate | 12G |
| Video connection type | SDI, HDMI |
| Device type | Media player |
| Network | 10G Ethernet |
| Power | AC mains |
