Blackmagic Design Mini Converter Quad SDI to HDMI 4K
GTIN: 9338716002133
Discontinued product
This product is no longer manufactured and is not available for purchase. The page stays online as a reference for specifications and compatibility.
See the current products in: Mini Converter
Mini converter from single link 6G-SDI, dual link 3G-SDI or quad link HD-SDI to HDMI 4K, for Ultra HD monitoring on HDMI televisions and projectors.
Commercial guarantee of durability offered by the producer at no extra cost: 3 years. See the GARAN label

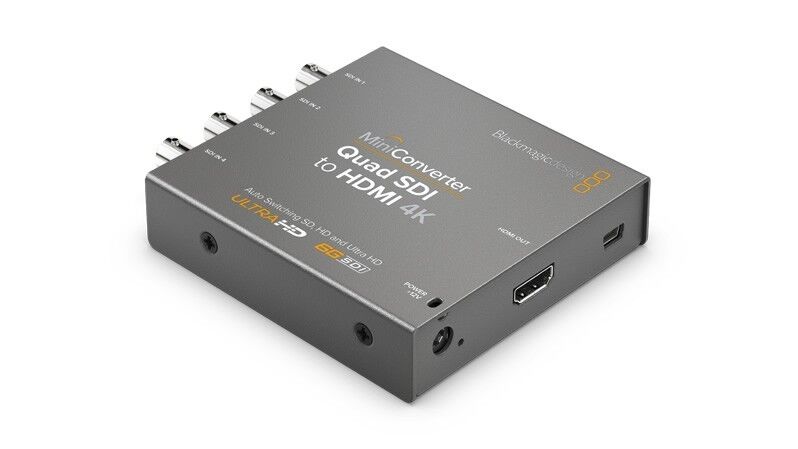

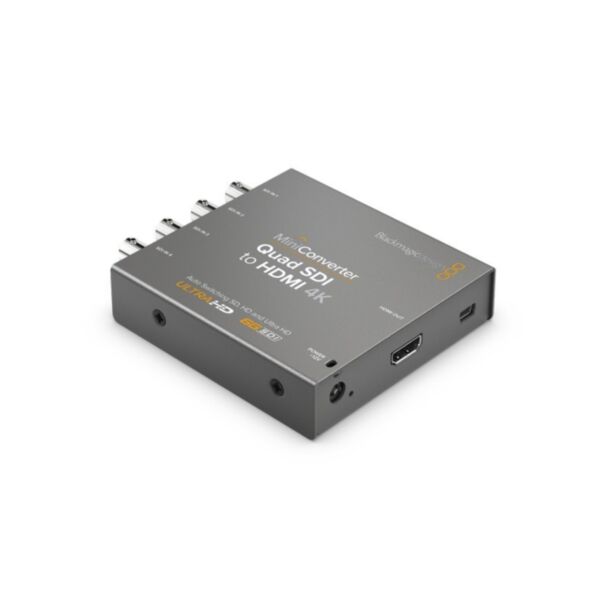

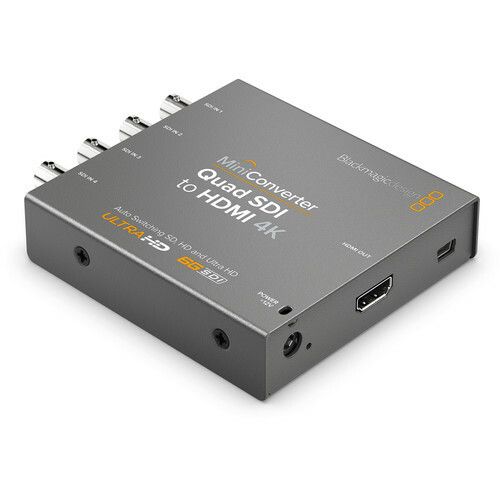

Blackmagic Mini Converter Quad SDI to HDMI 4K
Mini Converter Quad SDI to HDMI 4K connects single link 6G-SDI, dual link 3G-SDI or quad link HD-SDI sources to HDMI 4K projectors and televisions that accept Ultra HD over a single HDMI link. It switches automatically between SD/HD and Ultra HD, so it works with regular SD and HD equipment as well.
Key features
- Inputs: 4 x 1.5G-SDI, 2 x 3G-SDI or 1 x 6G-SDI
- HDMI type A output
- Automatic SD, HD and 6G-SDI detection on input 1
- Reclocking
- Settings via mini switches, software updates via USB
In the box
- Mini Converter Quad SDI to HDMI 4K
- 12V universal power supply with international socket adapters
Specifications
- SDI formats: SD, HD 720p/1080i/1080p, 2K DCI, Ultra HD 2160p23.98 to 2160p30, 4K DCI 24p
- SDI compliance: SMPTE 259M, 292M, 296M, 372M, 424M-B, 425M, ST-2081
- Sampling: 4:2:2 and 4:4:4, YUV and RGB
- Power: 12 V power supply, 12-31 V DC range, 5.2 W
| Product Condition | New |
|---|---|
| Manufacturer | Blackmagic Design |
| manufacturer code | CONVMBSQUH4K2 |
| Ean | 9338716002133 |
| Essential qualities |
|
| Maximum video resolution | 4096 x 2160 pixels |
| Host interface | SDI |
| Output interface | HDMI |
