Blackmagic Design Mini Converter Audio - SDI
GTIN: 9338716000597
Discontinued product
This product is no longer manufactured and is not available for purchase. The page stays online as a reference for specifications and compatibility.
Similar current model: Blackmagic Design Mini Converter Audio to SDI – HD SDI audio embedder
SD/HD SDI audio embedder for 4 channels of balanced analog audio or 8 channels of AES/EBU digital audio, with 1/4" jack inputs.
Commercial guarantee of durability offered by the producer at no extra cost: 3 years. See the GARAN label

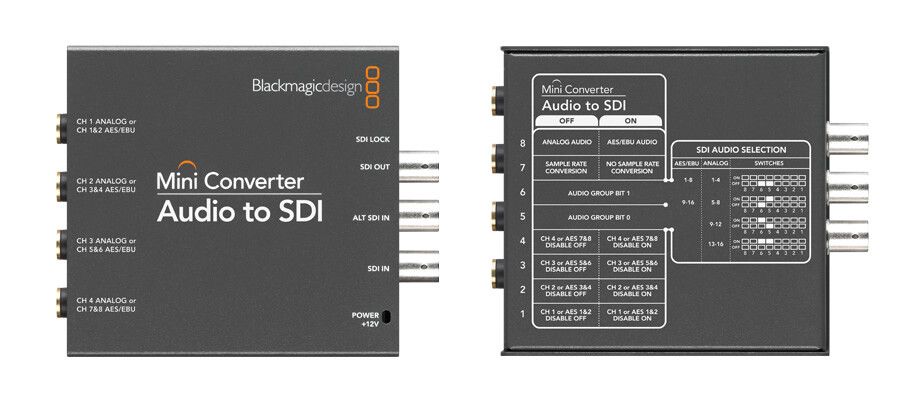

Blackmagic Mini Converter Audio to SDI
Mini Converter Audio to SDI embeds 4 channels of balanced analog audio or 8 channels of AES/EBU digital audio into any SDI video connection in SD and HD formats up to 1080p60. Use it to embed audio from audio mixers and analog decks into SDI for SDI routers and decks, or to add extra audio channels to video converters.
Key features
- 4 channels of balanced analog audio on 1/4" jacks
- 8 channels of balanced AES/EBU digital audio on 1/4" jacks
- SD, HD and 3G-SDI input with automatic detection
- Redundant SDI input with automatic switch over
- Reclocking
- Settings via mini switches or USB software

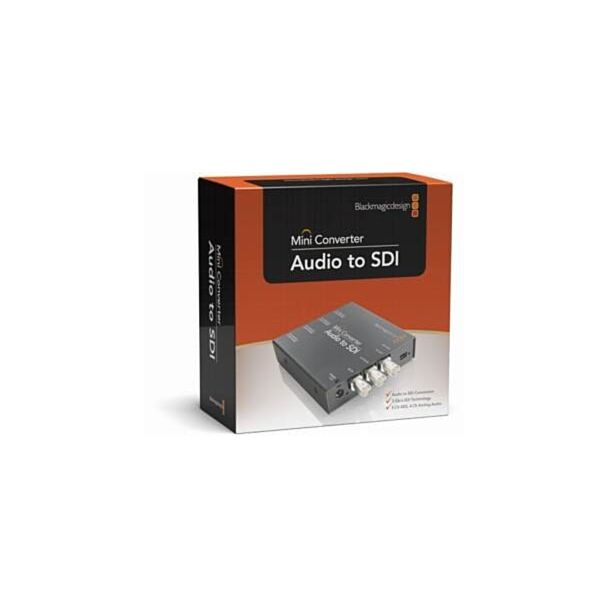

In the box
- Mini Converter Audio to SDI
- 12V universal power supply with international socket adapters
Specifications
- Formats: 525i29.97 NTSC, 625i25 PAL, 720p, 1080i, 1080PsF, 1080p up to 60, 2K DCI
- SDI compliance: SMPTE 259M, 292M, 296M, 372M, 424M-B, 425M
- Audio sampling: 48 kHz, 24-bit
- Updates and configuration: USB 2.0
- Power: 12 V power supply, 8.4 W
| Product Condition | New |
|---|---|
| Manufacturer | Blackmagic Design |
| manufacturer code | CONVMCAUDS |
| Ean | 9338716000597 |
| Essential qualities |
|
| Output interface | SDI |
