Blackmagic Design Mini Converter Heavy Duty, Analog - SDI
GTIN: 9338716001389
Discontinued product
This product is no longer manufactured and is not available for purchase. The page stays online as a reference for specifications and compatibility.
See the current products in: Mini Converter
Rugged converter from HD/SD component, NTSC, PAL or S-Video analog video to SDI, with embedding of balanced AES/EBU or analog audio, machined from a solid block of aluminium.
Commercial guarantee of durability offered by the producer at no extra cost: 3 years. See the GARAN label

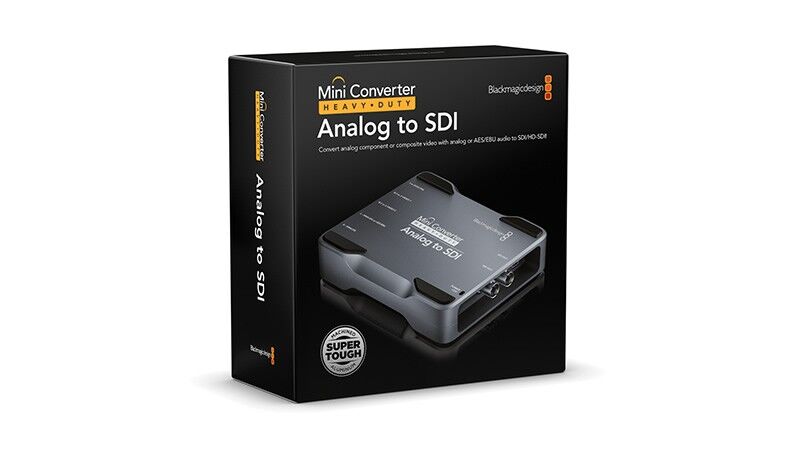

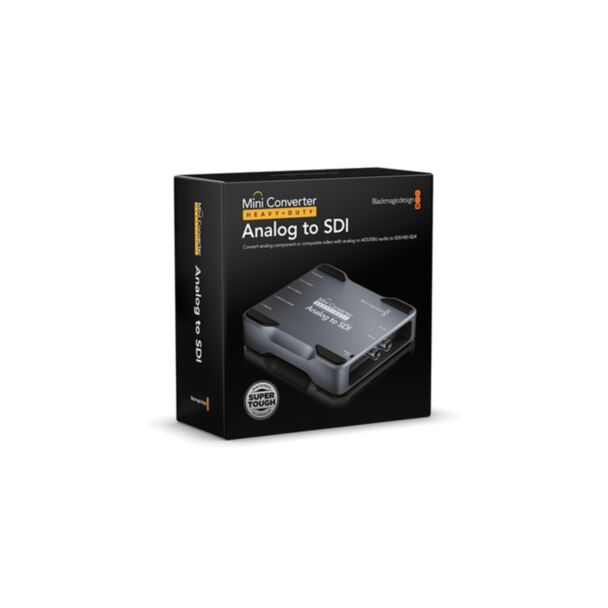

Blackmagic Mini Converter Heavy Duty Analog to SDI
Mini Converter Heavy Duty Analog to SDI converts analog video in HD/SD component, NTSC, PAL or S-Video to SDI, with the choice to embed SDI audio from balanced AES/EBU or analog audio inputs. It connects analog devices such as Betacam SP, VHS, set top boxes and HDV cameras to SDI, in a compact and tough converter machined from a solid block of aluminium.
Key features
- Analog video input: component SD/HD, NTSC, PAL and S-Video
- SDI output matching the SD or HD input
- 2 channels of balanced analog audio on 1/4" jacks
- 2 channels of balanced AES/EBU audio on 1/4" jacks
- Reclocking

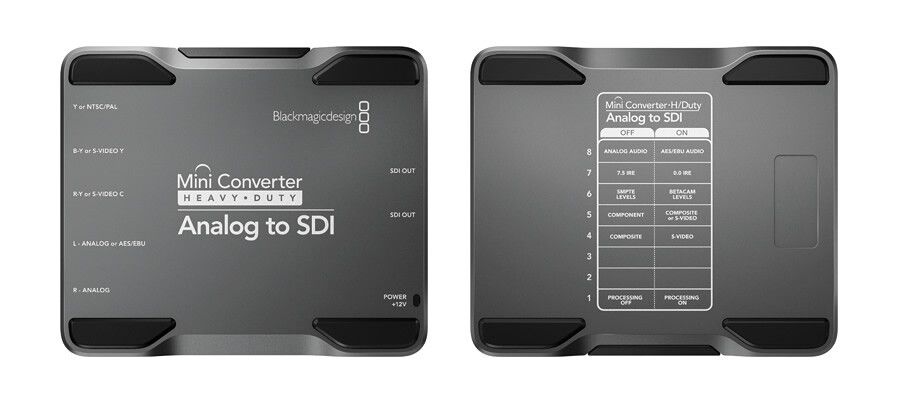

- Settings via mini switches or USB software
- Case machined from a solid block of aluminium
In the box
- Mini Converter Heavy Duty Analog to SDI
- 12V AC adapter with international socket adapters
Specifications
- Formats: 525i29.97 NTSC, 625i25 PAL, 720p50 to 720p60, 1080i50 to 1080i60, 1080p23.98 to 1080p30, 1080PsF23.98/24
- SDI compliance: SMPTE 259M, 292M, 296M
- Updates and configuration: USB 2.0
- Power: 12 V adapter, 12-31 V DC range, 6.5 W
| Product Condition | New |
|---|---|
| Manufacturer | Blackmagic Design |
| manufacturer code | CONVMH/DUTYAAS |
| Ean | 9338716001389 |
| Essential qualities |
|
| Host interface | Component/S-Video |
| Output interface | SDI |
