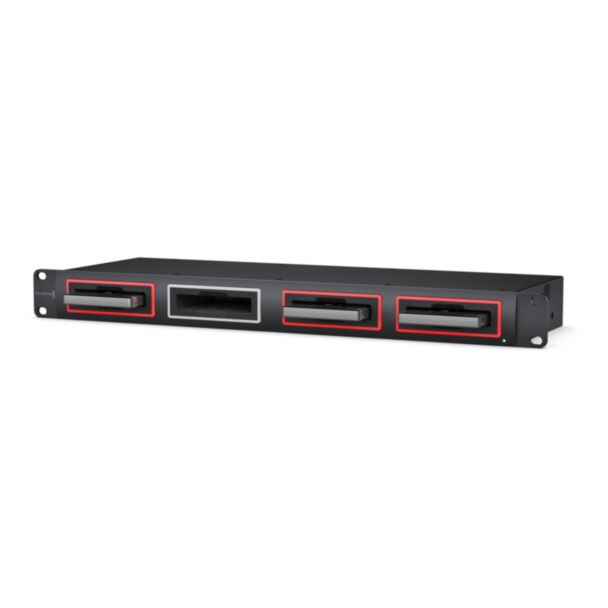

Blackmagic Design MultiDock 10G – 10G USB-C dock for 4 2.5" SSDs
GTIN: 9338716006148
MultiDock 10G: rack dock for 4 2.5" SATA SSDs accessed over a single 10Gb/s USB-C connection, with an independent SATA controller for each disk.
Blackmagic Design MultiDock 10G – 10G USB-C dock for 4 2.5" SSDs
Blackmagic MultiDock 10G is an advanced dock with 4 separate SSDs accessed over a single high speed 10Gb/s USB-C connection. Designed for film and television, it has a rack mount design and an independent SATA chip on each disk for fast transfers.
What the MultiDock 10G is for
It connects directly to computers for editing straight from media disks, and is used with HyperDeck Extreme 8K HDR for recording and playback.
Connections
4 2.5" SATA 3 SSD slots, 2 USB-C 3.1 Gen 2 ports up to 10Gb/s. Internal 100-240V supply.
How to choose
For sharing disks over the network between several users there are the Blackmagic Cloud Dock models.
bmdonline.eu is an authorized Blackmagic Design reseller: the official extended warranty is also available for this product.
Technical specifications
Connections
| SSD Interface | 4 x 2.5" SATA 3 6Gb/s. |
|---|---|
| Computer Interface | 2 x USB‑C 3.1 Gen 2 (up to 10Gb/s) |
Power Requirements
| Power Supply | 1 x Internal 100 - 240 AC. |
|---|
Environmental Specifications
| Operating Temperature | 0° to 40° C (32°to 104° F) |
|---|---|
| Storage Temperature | -20 to 45º C (-4º to 113º F) |
| Relative Humidity | 0% to 90% non-condensing |
| Product Condition | New |
|---|---|
| Manufacturer | Blackmagic Design |
| manufacturer code | DISKMDOCK4/U10G |
| Ean | 9338716006148 |
| Taric Code | 8471707000 |
| Warranty | 12 Month Limited Manufacturer's Warranty |
| Product specifications | CaratteristicheTipo di prodotto* Dispositivo di gestione della configurazione Colore del prodotto* Nero Quantità per pacco* 1 pz Gestione energeticaVoltaggio di ingresso 100 -240 V Dimensioni e pesoLarghezza 482 mm Profondità 153 mm Altezza 44,1 mm Peso 2,1 kg |
| Product type | Configuration management device |
| Product colour | Black |
| Quantity per pack | 1 pc(s) |
| Device type | Media dock |
| Power | AC mains |
