Blackmagic Design MultiView 4 – 4-input 6G-SDI multiviewer with Ultra HD output
GTIN: 9338716003888
MultiView 4: multiviewer with 4 re-synced 6G-SDI inputs, HD or Ultra HD output on SDI and HDMI, full resolution HD views on Ultra HD displays.
Commercial guarantee of durability offered by the producer at no extra cost: 3 years. See the GARAN label
Blackmagic Design MultiView 4 – 4-input 6G-SDI multiviewer with Ultra HD output

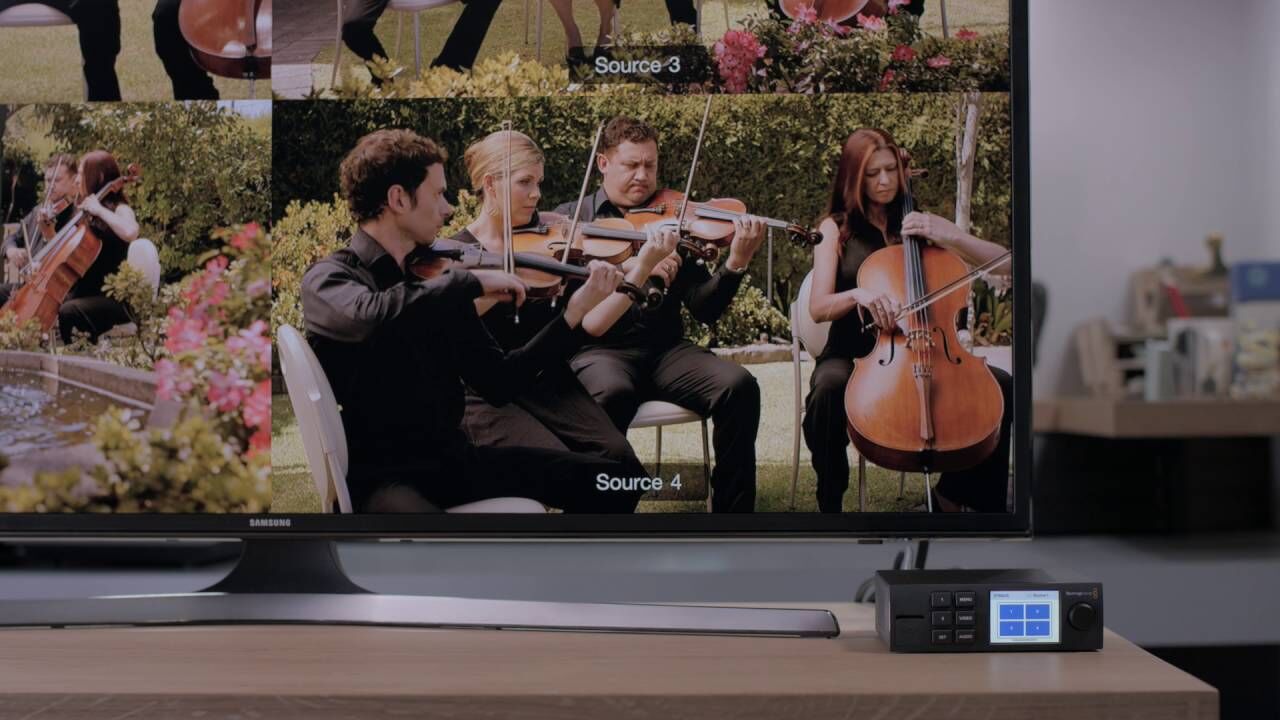

Blackmagic MultiView 4 shows 4 completely independent SDI sources on one display: the 4 6G-SDI inputs are re-synced, so SD, HD and Ultra HD formats and frame rates can be mixed. The output goes to 1080 HD or 2160p Ultra HD displays; with an Ultra HD TV each view has full 1920 x 1080 resolution.
What the MultiView 4 is for
It is used in control rooms, studios and events to check cameras and sources; audio meters, labels and other overlays can be turned on. It uses the Teranex Mini form factor and accepts the optional Smart Panel with menus and display.
Connections and power
4 10-bit 6G-SDI inputs with loop outputs, SDI (HD or 6G) and HDMI multiview outputs, free MultiView software for Windows and Mac, settings preserved at power on. Internal 100-240V supply (IEC cable required) or 48V PoE+, 16 W.
How to choose
MultiView 4 HD: 4 SD and HD sources, external supply. MultiView 4: 4 sources up to 6G-SDI, HD or Ultra HD output, Teranex Mini form factor. MultiView 16: 16 sources, Ultra HD output, built in routing panel and Videohub software.
bmdonline.eu is an authorized Blackmagic Design reseller: the official extended warranty is also available for this product.
Technical specifications
Connections
| SDI Video Inputs | 4 x 10-bit SD-SDI, HD-SDI and 6G‑SDI. |
|---|---|
| SDI Video Outputs | 4 loop, 1 HD/Ultra HD. |
| SDI Rates | 270Mb, 1.5G, 3G, 6G. |
| SDI Video Multi View Outputs | 1 x 10-bit HD-SDI and 10 bit 6G‑SDI |
| HDMI Video Multi View Outputs | 1 x HDMI type A connector. Output supports EDID of the monitor. |
| SDI Reclocking | On all SDI outputs, auto switching between standard definition, high definition or 6G‑SDI video. |
| Reference Input | None |
| Multi Rate Support | Auto detection of SD, HD or 6G‑SDI. Simultaneous viewing of 4K, HD and SD video. |
| Updates | USB 2.0 high speed (480Mb/s) interface or via Ethernet. |
| Configuration | RJ45 Ethernet or USB 2.0 for firmware updates and IP address setting. |
Standards
| SD Video Standards | 525i59.94 NTSC, 625i50 PAL |
|---|---|
| HD Video Standards | 720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30 |
| 2K Video Standards | 2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2KPsF23.98 DCI, 2KPsF24 DCI, 2KPsF25 DCI |
| Ultra HD Video Standards | 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30 |
| 4K Video Standards | 4Kp24 DCI |
| SDI and HDMI HD Video Output Standards | 1080i50, 1080i59.94 |
| SDI and HDMI Ultra HD Video Output Standards | 2160p25, 2160p29.97 |
| SDI Compliance | SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 425M, SMPTE 425M-B, ITU‑R BT.656 and ITU‑R BT.601. |
| Audio Meters | Each view, VU standard. |
| Source Routing | None |
| SDI Video Sampling | 4:2:2 |
| SDI Audio Sampling | Television standard sample rate of 48kHz and 24‑bit. |
| SDI Color Precision | 10-bit 4:2:2 |
| SDI Color Space | YUV |
| SDI Auto Switching | Automatically selects between SD‑SDI, HD‑SDI, and 6G‑SDI on each input so that each input can be running a different television standard. |
| SDI Metadata Support | Video payload identification ancillary data as per SMPTE 352M. |
Control
| Built in Control Panel | None. Supports Teranex Mini Smart Panel which adds menus and 2.2 inch color display. |
|---|---|
| External Control Panel | None |
Software
| Software Control | MultiView software included free for Windows™ and Mac™. |
|---|---|
| Internal Software Upgrade | Via included updater application. |
Operating Systems
| Mac 10.15 Catalina, Mac 11.1 Big Sur or later. Windows 10, 64-bit. |
Power Requirements
| Power Supply | IEC power cable required, 100 ‑ 240V AC input. |
|---|---|
| Power Fail Protection | MultiView 4 settings preserved and restored instantly at power on. |
| Power over Ethernet | Can be powered via 48V DC using PoE+ (power over ethernet) |
| Power Consumption | 16 Watts |
Environmental Specifications
| Operating temperature | 0° to 40° C (32° to 104° F) |
|---|---|
| Storage temperature | -20° to 45° C (-4° to 113° F) |
| Relative Humidity | 0% to 90% non-condensing |
| Product Condition | New |
|---|---|
| Manufacturer | Blackmagic Design |
| manufacturer code | HDL-MULTIP6G/04 |
| Ean | 9338716003888 |
| Taric Code | 8543709099 |
| Warranty | 3 year |
| Product specifications | FeaturesBuilt-in display* No Product colour Black Analog signal format system NTSC, PAL Serial Digital Interface (SDI) standard SMPTE 259M, SMPTE 292M Supported video modes 525i, 625i, 720p, 1080i, 1080p, 2160p Maximum data transfer rate 6 Gbit/s Ethernet LAN* Yes Rack mounting* Yes Rack capacity 1U Ports & interfacesBNC input ports 4 BNC output ports 5 Number of HDMI outputs 1 RJ-45 ports quantity 1 Operational conditionsOperating relative humidity (H-H) 0 - 90% Storage relative humidity (H-H) 0 - 90% Operating temperature (T-T) 0 - 40 °C Storage temperature (T-T) -20 - 45 °C PowerPower consumption (max)* 16 W AC input voltage 90 - 240 V Weight & dimensionsWidth 140 mm Depth 170 mm Height 44.5 mm Weight 580 g Packaging contentManual Yes |
| Built-in display | No |
| Ethernet LAN | Yes |
| Rack mounting | Yes |
| Power consumption (max) | 16 W |
| Device type | Multiviewer |
| Maximum resolution | Ultra HD |
| SDI rate | 6G |
| SD support (PAL/NTSC) | Yes |
| Video connection type | SDI, HDMI |
| Power | AC mains, PoE |
