Blackmagic Design OpenGear
GTIN: 9338716000672
Discontinued product
This product is no longer manufactured and is not available for purchase. The page stays online as a reference for specifications and compatibility.
See the current products in: Mini Converters
OpenGear rack card that converts analog video to 3 Gb/s SDI, with switchable analog or AES/EBU audio, hot swappable and controllable via DashBoard software.
Blackmagic OpenGear Converter - Analog to SDI

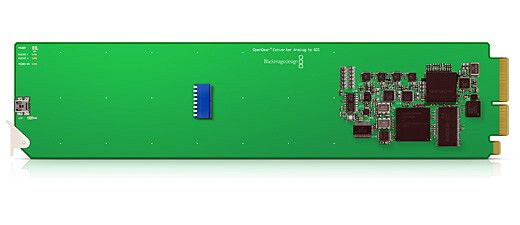

Blackmagic OpenGear Converter - Analog to SDI is a rack card that converts analog video to SDI, with 3 Gb/s SDI technology that automatically switches between SD, HD and 3 Gb/s HD-SDI formats.

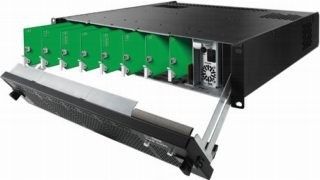

Blackmagic OpenGear Converters are fully compatible with OpenGear, the open standard for rack mount conversion and processing for television broadcasters, and fit 20-card models of the 2 RU OpenGear frames. The cards are hot swappable and can be controlled and monitored over the network with the java based DashBoard software on Windows, Mac OS X and Linux; new standards can be uploaded via the USB port. Audio is 24 bit analog and 24 bit digital: analog or AES/EBU digital audio is selected with mini switches or remotely via DashBoard, AES/EBU inputs have sample rate converters, and the standard 2 ch and 4 ch audio rear modules are supported.
Key features
- Analog video to SDI conversion
- 3 Gb/s SDI that automatically switches between SD, HD and 3 Gb/s HD-SDI formats
- Switchable analog or AES/EBU audio
- Compatible with 20-card 2 RU OpenGear frames
- Hot swappable card
- Network control and monitoring with DashBoard software (Windows, Mac OS X, Linux)
- Updates via USB
| Product Condition | New |
|---|---|
| Manufacturer | Blackmagic Design |
| manufacturer code | CONVOPENGAAS |
| Ean | 9338716000672 |
| Type | Analog-to-SDI converter |
