Blackmagic Design Studio Converter – Studio converter for Studio Camera Pro over 10G Ethernet
GTIN: 9338716007657

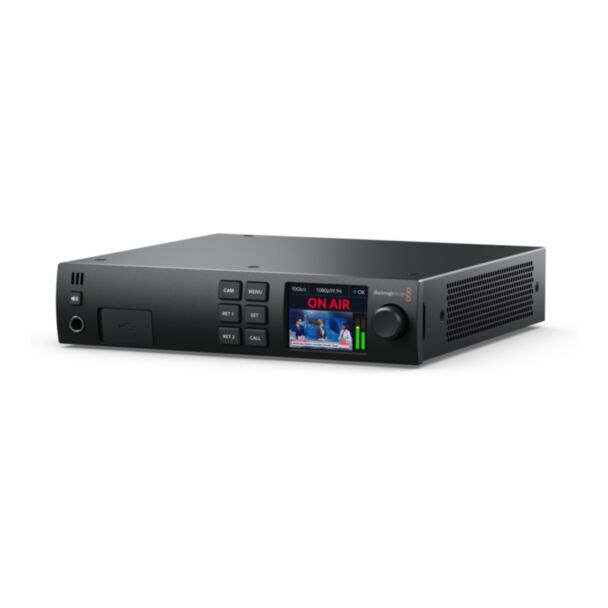

Studio Converter: control room converter connecting and powering Blackmagic Studio Camera Pro with one 10G Ethernet cable: video, returns, timecode, reference, tally, talkback and control.
Blackmagic Design Studio Converter – Studio converter for Studio Camera Pro over 10G Ethernet
With 10G Ethernet on the Blackmagic Studio Converter and Blackmagic Studio Camera Pro, all camera signals travel on one IP link: camera feed, program return, timecode, reference, tally, talkback and control. It gives the same benefits as SMPTE fiber, using a much cheaper standard 10G copper Ethernet cable.
What the Studio Converter is for
The converter breaks out all video, audio and talkback connections in the control room, and has a power supply that powers the camera down the Ethernet cable, so no power source is needed near the camera.
Connections and power
2 SDI inputs and 2 outputs up to 12G, monitor output, timecode and reference on BNC, talkback on RJ-45, analog program audio, 6.35 mm headphones and speaker, 10G Ethernet with PoE to the camera over Cat 6A and 1G Ethernet for control, USB-C, panel with 7 buttons, knob and 2.2" display. Internal 100-240V supply, 40 W plus camera power.
How to choose
For URSA Broadcast cameras at long distances there are the Camera and Studio Fiber Converters over SMPTE fiber.
bmdonline.eu is an authorized Blackmagic Design reseller: the official extended warranty is also available for this product.
Technical specifications
Connections
| SDI Video Inputs | 2 |
|---|---|
| SDI Video Outputs | 2 |
| SDI Monitor Outputs | 1 |
| SDI Rates | 1.5G, 3G, 6G, 12G. |
| Built in Speaker | Mono |
| Analog Audio Inputs | 2 channel analog Program audio in supported via 9‑pin connector. |
| Analog Audio Outputs | 1 x 6.35 mm headphone jack. |
| SDI Audio Input | Return 1 with 2 channels of Program audio embedded in 1.5G/3G/6G/12G-SDI. 4 talkback channels on 13, 14, 15 and 16. Return 2 with 2 channels of audio embedded in 1.5G/3G/6G/12G-SDI. |
| SDI Audio Output | 2 channels of Program audio embedded in 1.5G/3G/6G/12G-SDI. 4 talkback channels on 13, 14, 15 and 16. |
| Timecode Connections | 1 x BNC In, 1 x BNC Out. |
| Reference Connections | 1 x BNC In, 1 x BNC Out. Tri-Sync or Black Burst. |
| Talkback Audio | SDI channels 13 and 14 for Engineering talkback. SDI channels 15 and 16 for Production talkback. RJ-45 Talkback connector for analog external talkback systems. |
| Screen | 2.2 inch LCD |
| Ethernet | 1 x 10Gb/s PoE RJ‑45 Camera connector for SMPTE Fibre style workflow over Cat 6A network cable. 1 x 1Gb/s for external control and software updates. |
| Computer Interface | 1 x USB-C. |
Standards
| HD Video Standards | 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080i50, 1080i59.94, 1080i60 |
|---|---|
| Ultra HD Video Standards | 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60 |
| SDI Compliance | SMPTE 292M, SMPTE 424M, SMPTE 425M level A and B, SMPTE 2081‑1, SMPTE 2081‑10, SMPTE 2082‑1 and SMPTE 2082‑10. |
| Audio Sampling | Television standard sample rate of 48kHz and 24‑bit. |
| Video Sampling | 4:2:2 |
| Color Precision | 10-bit |
| Color Space | REC 709, REC 2020. |
| Multiple Rate Support | SDI switches between HD, 3G-SDI, 6G-SDI and 12G-SDI. |
Control
| Built in Control Panel | 7 buttons with spin knob control and 2.2 inch color display for device control and menu settings. |
|---|---|
| External Control | RJ-45 1Gb/s Ethernet. |
Software
| Software Included | Camera Utility for firmware update. |
|---|
Power Requirements
| Power Supply | 100 - 240V AC input. |
|---|---|
| Power Supply | 1 x Internal 100 - 240V AC 50/60Hz. |
| Power Usage | 40 W max plus camera power usage. |
Optional Accessories
| Blackmagic Universal Rack Shelf Blackmagic Studio Camera 6K Pro Blackmagic Studio Camera 4K Pro G2 Blackmagic Studio Camera 4K Pro |
Environmental Specifications
| Operating Temperature | 0° to 40° C (32° to 104° F) |
|---|---|
| Storage Temperature | -20° to 45° C (-4° to 113° F) |
| Relative Humidity | 0% to 90% non-condensing |
What's Included
| Blackmagic Studio Converter |
Warranty
| 1 Year Limited Manufacturer’s Warranty. |
| Product Condition | New |
|---|---|
| Manufacturer | Blackmagic Design |
| manufacturer code | CINSTUDMFT/H/SC |
| Ean | 9338716007657 |
| Taric Code | 8543709099 |
| Warranty | 1 Year Limited Manufacturer's Warranty. |
| Product specifications | FeaturesConverter type* Active video converter Internal No Product colour Black Windows operating systems supported Windows 10 x64 Mac operating systems supported Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura VideoSupported chroma subsampling 4:2:2 Serial Digital Interface (SDI) standard SMPTE 292M, SMPTE 424M, SMPTE 425M, SMPTE ST-2081, SMPTE ST-2082 AudioAudio sampling rate 48 kHz Ports & interfacesHost interface* SDI Output interface* SDI Video in 2 x SDI Video out 2 x SDI Audio output 6.35 mm BNC video output Yes Ports & interfacesBNC output ports 1 PowerExternal power adapter No Input voltage 100 - 240 V Input frequency 50/60 Hz Power consumption (typical) 40 W Operational conditionsOperating temperature (T-T) 0 - 40 °C Storage temperature (T-T) -20 - 45 °C Operating relative humidity (H-H) 0 - 90% Weight & dimensionsWidth 210 mm Depth 226.8 mm Height 44.2 mm Weight 1.44 kg |
| Essential qualities |
|
| Converter type | Active video converter |
| Host interface | SDI |
| Output interface | SDI |
| Accessory type | Fiber and studio link |
| Compatible with | Studio Camera |
