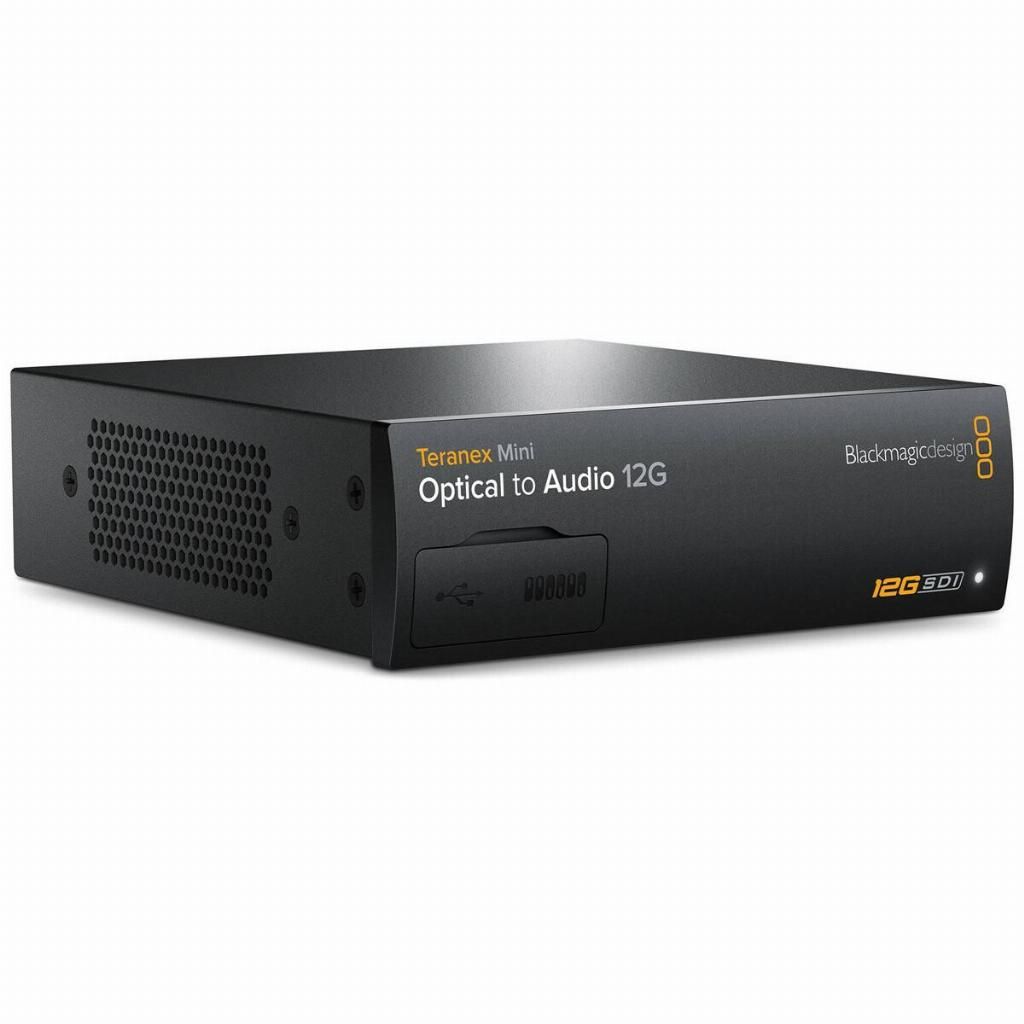

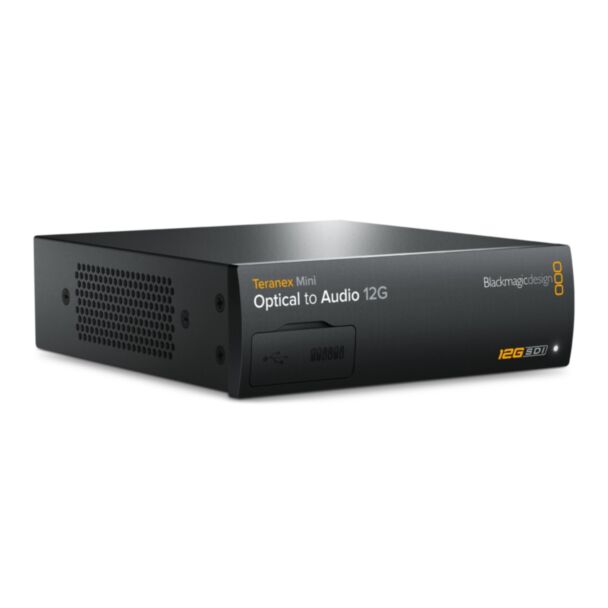

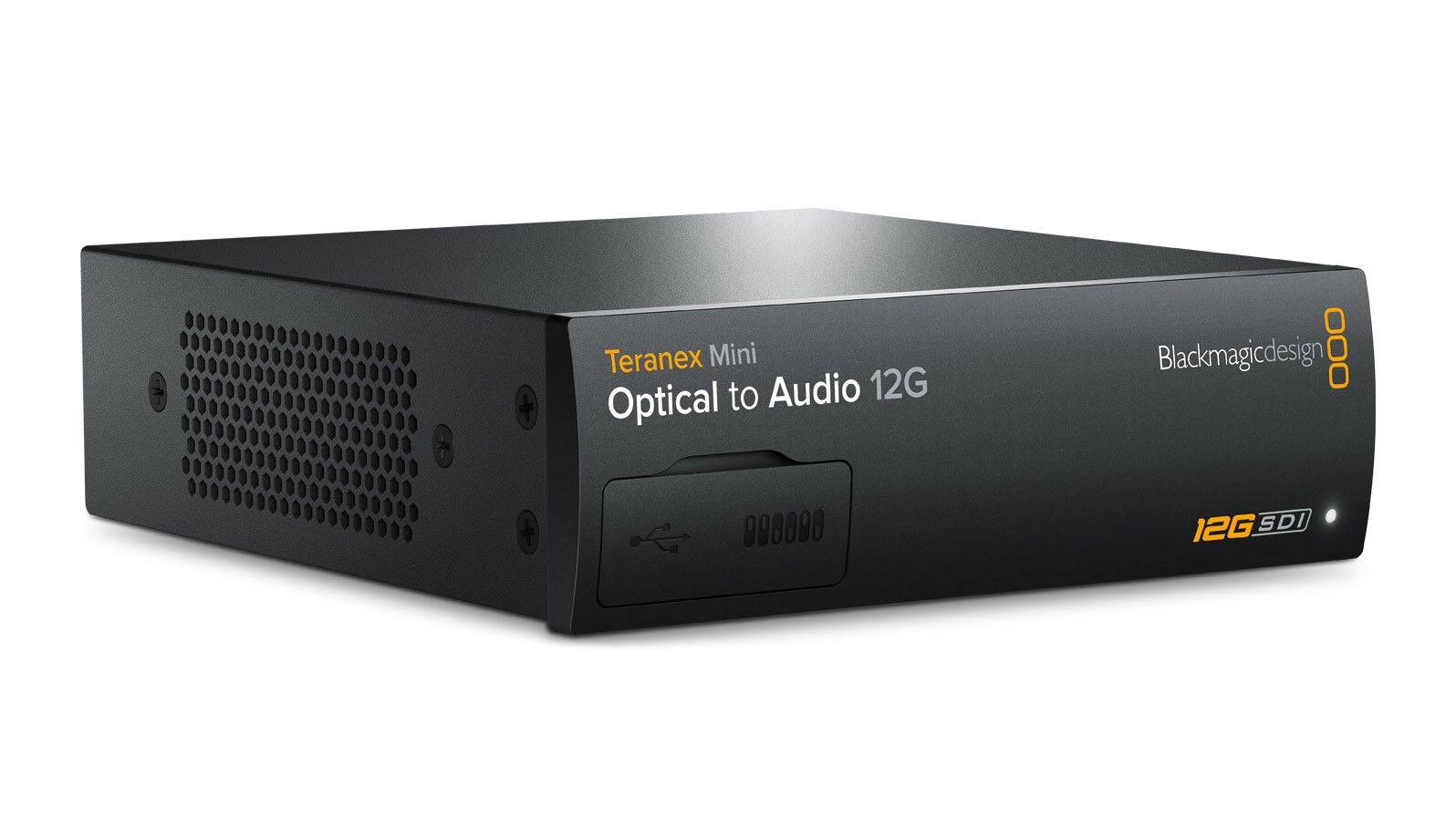

Blackmagic Design Teranex Mini Optical to Audio 12G

Blackmagic Teranex Mini Optical to Audio 12G

The Teranex Mini Optical to Audio 12G de-embeds audio from any SD, HD or Ultra HD optical fiber or 12G-SDI video connection and outputs it to two channels of analog audio or four channels of AES/EBU digital audio, for audio mixers, analog decks and reference monitors. Switches select which of the 16 embedded channels are de-embedded.

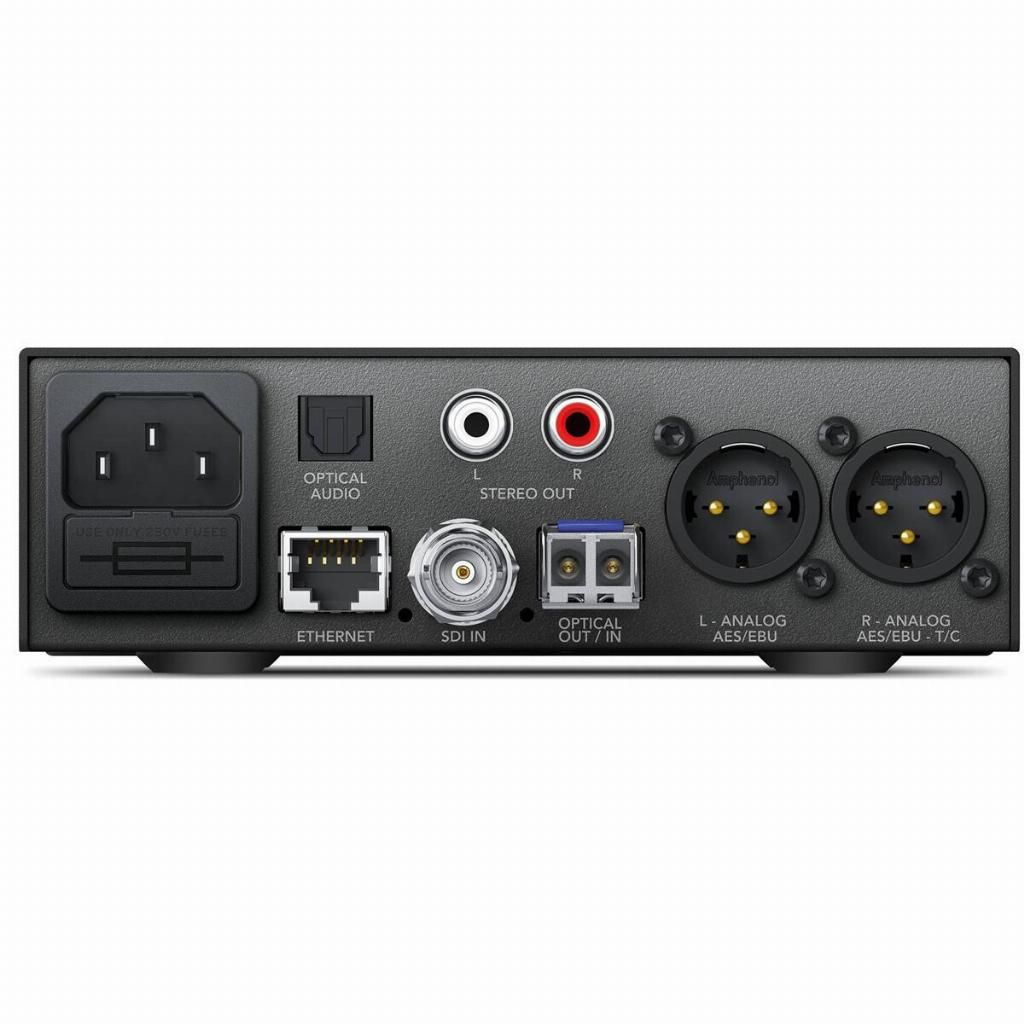

Balanced audio is on XLR connectors, with the right channel also configurable as timecode output; unbalanced HiFi stereo is available on RCA connectors and S/PDIF on a TOSLINK optical connector. The optical input auto-detects SD, HD, 6G and 12G-SDI and the optical output works as a loop-through; the optical connections need an optional SMPTE compatible SFP module. More channels can be de-embedded by daisy chaining a Teranex Mini SDI to Audio 12G.

Key features

• De-embeds audio from optical fiber or 12G-SDI, SD, HD and Ultra HD
• Two channels of balanced analog or four channels of AES/EBU audio on XLR, right channel also usable for timecode
• Unbalanced HiFi stereo output on RCA and S/PDIF on TOSLINK
• Optical input and loop-through output on LC connectors (optional SFP module)
• Supports SD, HD and Ultra HD up to 2160p60 over 12G-SDI
• Built-in AC power supply (IEC C14, 90-240 V) and power over Ethernet (PoE+)
• Ethernet and Mini-B USB for setup and updates with Blackmagic Teranex Setup on Mac or Windows
• Mini switches for settings; optional Teranex Mini Smart Panel with display and controls
• Can be rack mounted with the Teranex Mini Rack Shelf
