Blackmagic Design Ultimatte 12 8K
GTIN: 9338716006865
In stock
SKU
BMD-ULTMKEY12/D/8K
Special Price €7,435.90 €6,095.00 Regular Price €8,082.50
Real time compositing processor for live keying, with Quad Link 12G-SDI connections for working in HD, Ultra HD and 8K.

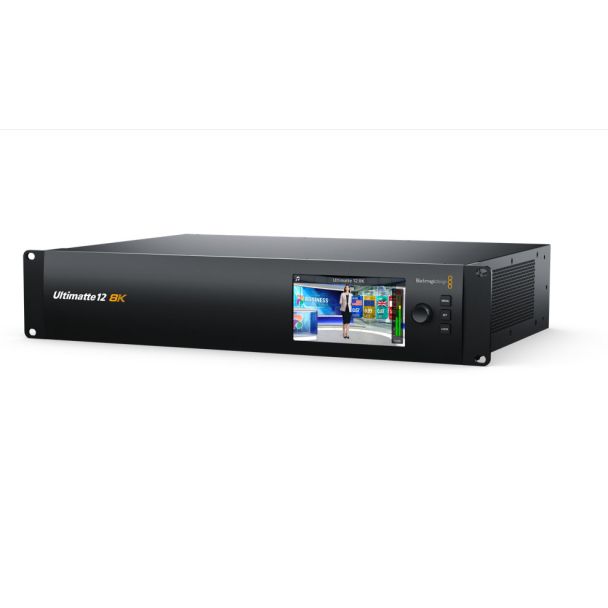

Blackmagic Design Ultimatte 12 8K
Ultimatte 12 8K is a real time compositing processor for keying live action video with broadcast graphics, virtual sets and more. It offers very accurate edge handling and colour separation, high colour fidelity and effective spill suppression.
Quad Link 12G-SDI connections let you work in HD, Ultra HD and 8K, with sub pixel processing.
Technical specifications
Connections
| SDI Video Inputs | 32 |
|---|---|
| SDI Video Outputs | 20 |
| SDI Video Loop Outputs | 20 reclocked SD, HD, Ultra HD, 8K for corresponding inputs. |
| SDI Rates | 270Mb, 1.5G, 3G, 6G, 12G. |
| Video Input Re-Sync | On all inputs. |
| Reference Connections | 1 x BNC In, 1 x BNC Out. Tri-Sync or Black Burst. |
| GPIO | DE15 |
| Ethernet | Up to 10Gb/s for device control and loading stills into Media Pool. |
| Computer Interface | 1 x USB-C 3.0 for device configuration and software updates. |
Standards
| SD Video Standards | 525i59.94 NTSC, 625i50 PAL |
|---|---|
| HD Video Standards | 720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30 |
| Ultra HD Video Standards | 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60 |
| 8K Video Standards | 4320p23.98, 4320p24, 4320p25, 4320p29.97, 4320p30, 4320p50, 4320p59.94, 4320p60 |
| SDI Compliance | SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M level A and B, SMPTE 2081-1, SMPTE 2081-10, SMPTE 2082-1, SMPTE 2082-10, SMPTE 2081-12, SMPTE 2082-11 and SMPTE 2082-12. |
| Video Sampling | 4:2:2 |
| Color Precision | 10-bit |
| Color Space | REC 601, REC 709, REC 2020. |
| Multiple Rate Support | Auto detection of SD, HD, 6G‑SDI, 12G-SDI, 2SI Quad Link 12G‑SDI, 2SI Dual Link 12G‑SDI and 2SI Quad Link 6G‑SDI. |
Composite Sources
| Foreground | 4 x 12G-SDI In with Loop Out |
|---|---|
| Background | 4 x 12G-SDI In with Loop Out Still from Media Pool |
| Background Matte | 4 x 12G-SDI In with Loop Out Internal Window Still from Media Pool |
| Garbage Matte | 4 x 12G-SDI In Internal Window Still from Media Pool |
| Holdout Matte | 4 x 12G-SDI In Internal Window Still from Media Pool |
| Layer | 4 x 12G-SDI In with Loop Out Still from Media Pool |
| Layer Matte | 4 x 12G-SDI In with Loop Out Internal Window Still from Media Pool |
Composite Outputs
| Fill | 4 x 12G-SDI |
|---|---|
| Matte | 4 x 12G-SDI |
| Program | 4 x 12G-SDI |
| Talent | 4 x 12G-SDI |
Monitor
| Monitor In | 4 x 12G-SDI for monitor cascade |
|---|---|
| Monitor Out | 4 x 12G-SDI For monitoring Program, Foreground Input, Background Input, Combined Matte, Internal Matte, Fill Out, Layer Input, Background Matte Input, Garbage Matte Input, Holdout Matte Input, Layer Matte Input, Processed Layer Matte, Processed Holdout Matte, Processed Garbage Matte, Processed Background Matte, Screen Correction. |
Media Pool
| Background Still Image Formats | TGA, TIFF, BMP, PNG, JPG. |
|---|---|
| Background with Alpha Still Image Formats | TGA, TIFF, BMP. |
| Layer Image Still Image Formats | TGA, TIFF, BMP, PNG, JPG. |
| Layer with Alpha Still Image Formats | TGA, TIFF, BMP. |
| Garbage Matte Still Image Formats | TIFF, BMP, PNG, JPG. |
| Holdout Matte Still Image Formats | TIFF, BMP, PNG, JPG. |
| Media Pool Memory | 6GB non-volatile internal storage. |
Displays
| Built in 5 inch color display for device name, video preview, audio meters and menus. |
Control
| Front Panel | 5 inch color display with 3 menu buttons and spin knob. |
|---|---|
| Control Connection | Network or direct Ethernet connection to a computer running Ultimatte Software Control or Ultimatte Smart Remote 4. |
| Software Control | Ultimatte Software Control supported on Mac™ or Windows™ computers. |
| Hardware Control Panel | Ultimatte Smart Remote 4 |
| Custom Control | Ethernet protocol and GPIO pin out included in the Ultimatte instruction manual. |
Software
| Software Updates | Using USB‑C or Ethernet connection to Mac™ or Windows™ computers. |
|---|---|
| Configuration | Ultimatte IP address is set via the front panel or Ultimatte setup utility connected via USB. |
Power Requirements
| Power Supply | 2 x Internal 100-240V AC, 50/60Hz |
|---|---|
| Power Usage | 218W |
Physical Installation
| 2 rack units height. |
Environmental Specifications
| Operating Temperature | 0° to 40°C (32° to 104°F) |
|---|---|
| Storage Temperature | -20° to 60°C (-4° to 140°F) |
| Relative Humidity | 0% to 90% non-condensing. |
What's Included
| Ultimatte 12 8K Welcome wallet with QR code for software download |
| Product Condition | New |
|---|---|
| Manufacturer | Blackmagic Design |
| manufacturer code | ULTMKEY12/D/8K |
| Ean | 9338716006865 |
| Taric Code | 8543709099 |
| Warranty | 12 Month Limited Manufacturer's Warranty |
| Product specifications | Ports & interfacesBNC output ports 1 Ethernet LAN (RJ-45) ports 1 PowerAC input voltage 100 - 240 V AC input frequency 50/60 Hz Power consumption (max) 218 W DesignRack mounting* Yes LED indicators Yes Operational conditionsOperating temperature (T-T) 0 - 40 °C Storage temperature (T-T) -20 - 60 °C Storage relative humidity (H-H) 0 - 90% Weight & dimensionsWidth 482 mm Depth 338 mm Height 88.4 mm Weight 8.68 kg |
| Rack mounting | Yes |
| Maximum resolution | 8K |
| Device type | Keyer |
| SDI rate | 12G |
| SD support (PAL/NTSC) | Yes |
| Video connection type | SDI |
| Reference input | Yes |
| Network | 10G Ethernet |
| Power | AC mains |
