Blackmagic Design Ultimatte Smart Remote 4 G2

Ultimatte Smart Remote 4 G2

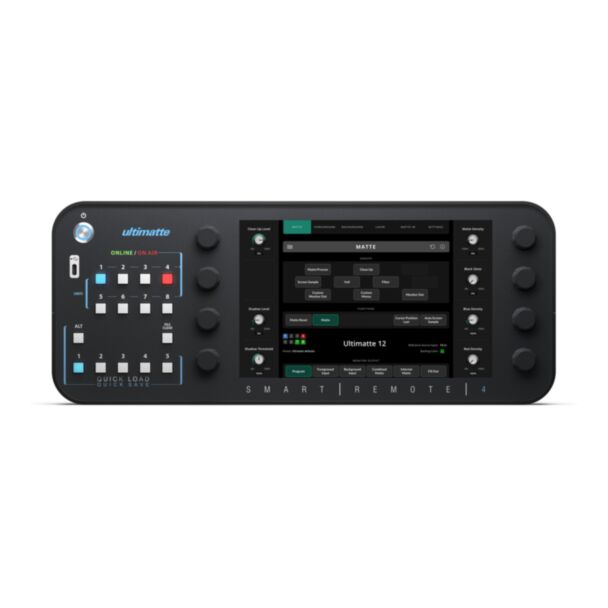

Ultimatte Smart Remote 4 G2 lets you control up to 8 different Ultimatte 12 units at the same time via Ethernet. It features a 10.1 inch touchscreen for quickly navigating menus and adjusting settings, along with hard buttons with online and on air indicators for quickly switching between units. The file clear button automatically adjusts the most important settings to give you an instant composite.

Key features

• Control up to 8 Ultimatte 12 units over Ethernet
• 10.1 inch 1280 x 800 colour capacitive touchscreen for menus and settings
• 8 rotary knobs for adjusting parameters
• 8 unit ID buttons (illuminated blue when active) with LED indicators: green for online, red for on air
• File clear button for Auto Key, plus Alt + File Clear for Auto Key with some user defined presets
• 5 quick load buttons and 5 save buttons (with Alt) for presets
• 4 customizable menus for your most used controls, and user adjustable LED brightness

Connections

• 1 x HDMI video output (1080p60)
• 2 x 10/100/1000 Ethernet ports for LAN control of the Ultimatte 12 and software updates
• 2 x rear USB-C 3.0 ports for mouse, keyboard and USB-C storage to load stills, save/load presets and archives
• 1 x front USB-C 3.0 with the same functions, plus computer connection for updates using the Ultimatte Setup utility; all USB-C ports support power delivery
• Locking 5.5mm barrel +12V DC power input

Installation and software

• Adjustable desk mounting; rack mount ears included for a 19 inch rack
• Software updates via USB or Ethernet with the Ultimatte Setup utility (macOS 15 Sequoia, macOS 26 Tahoe or later; Windows 11)
• 24 W max

In the box

Ultimatte Smart Remote 4 G2, universal 36W external power supply with locking connector and international adapters, and welcome wallet with QR code for software download.
